Marine 6m Folding Boom Offshore Knuckle Boom Crane

Basic Information
Place of Origin: China
Brand Name: OUCO
Certification: ABS/BV/CCS
Model Number: OUCO-2T6M-KBT-01
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Shipping Container/Wood Crate/nude
Delivery Time: 20 days
Payment Terms: T/T, Western Union
Supply Ability: 300 units per year
Material: Steel Color: Custom
Certification: ABS/BV/CCS Hydraulic: Hydraulic System
Size: Custom Package: Nude
Grade: Marine / Offshore Quality: One Year Warranty
High Light:

6m Offshore Knuckle Boom Crane

,

Folding Offshore Knuckle Boom Crane

,

2t Folding Boom Crane

Marine 6m Folding Boom Offshore Knuckle Boom Crane




FAQ:

Q:1. What's the information should I provide when inquiry?
A: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q:2. How many operating methods for my selection?
A: Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q:3. Can this type work in hazardous environment?
A: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q:4. Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
Q:5. How can we install the crane?
A: Our senior engineer can be your side to do the installation guide service and training.
Q:6. Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.


Technical Specifications:
SWL 2T@6M
MAX WORKING RADIUS 6m
MIN WORKING RADIUS 1.25m
HOISTING SPEED 0~15m/min
HOISTING HEIGHT 25m
SLEWING SPEED ~0.5r/min
SLEWING ANGLE 360°
LUFFING TIME ~ 45s
EXTENSION TIME ~45s
WORKING CONDITION

TRIM ≤2°

HEEL ≤5°

ELEC-MOTOR POWER Y160K-4-H
POWER 11kw
Speed 1475r/min
POWER RESOURCE AC415V/50HZ
PROTECT CLASS IP56
INSUKATE CLASS F
WORKING TYPE S1

Marine 6m Folding Boom Offshore Knuckle Boom Crane 0

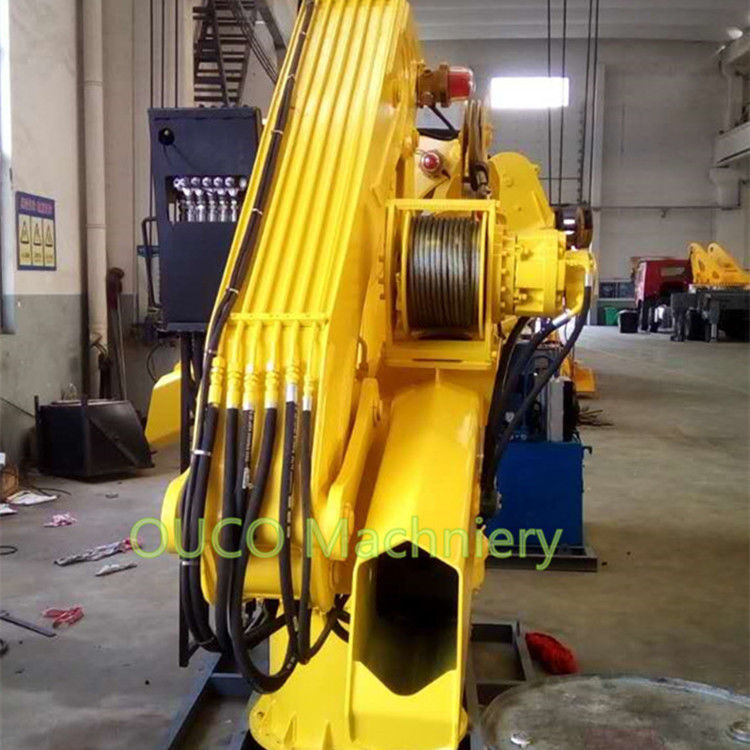

Load test at workshop:
Marine 6m Folding Boom Offshore Knuckle Boom Crane 1
