Bulk Material 520mm Pully 8t Mechanical Grab Bucket

Basic Information
Place of Origin: Jiangsu,China
Brand Name: OUCO
Certification: ISO/CE/CCS/BV/ABS
Model Number: OUCO-GB-12
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Shipping Container/Wood Crate/nude
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per year
Material: Q355 Condition: New
Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Online Support, Overseas Service Center Available
Feature: Mechanical Color: Customized
Original: Jiangsu,China Type: Clamshell
Highlight:

8t Mechanical Grab Bucket

,

520mm Mechanical Grab Bucket

,

8t Grab Bucket Crane

Bulk Material 520mm Pully 8t Mechanical Grab Bucket

Product Feature

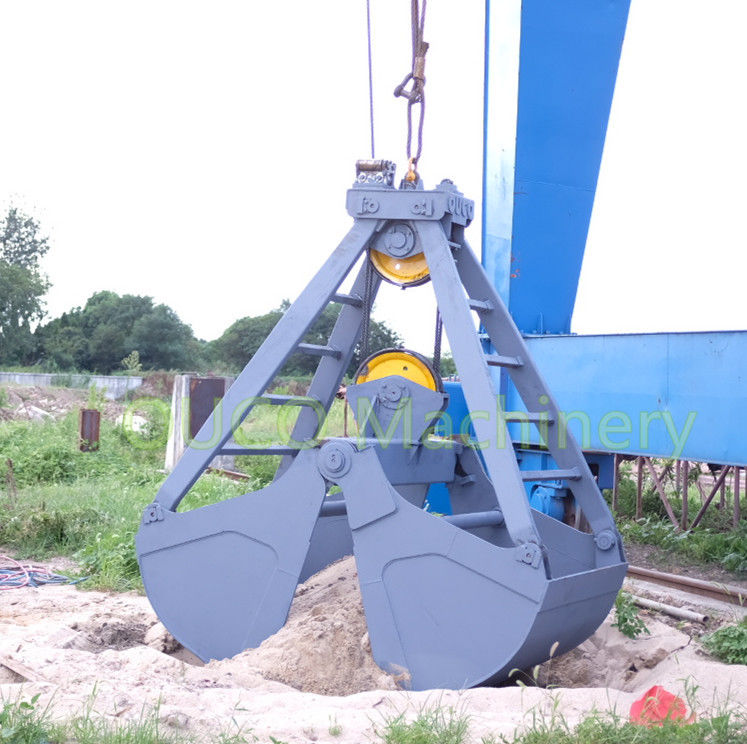

The Two Rope Mechanical Clamshell grabs for two line operated cranes (One Holding Rope and One closing Rope). The grabs are specially designed for charging and discharging sand, gravel and other bulk materials. The grabs can be executed with open or closed shells depending on the job and the type of material to be handled. The grabs are manufactured of high wear resistant steels. All bearings are heavy duty and sealed for high performance.
Product Features
Optional the Grabs shells can be executed with Kick plates to reduce capacity. This will give you an advantage when bulk materials with various densities are (dis)charged. This can be calculated to the biggest capacities possible in combination with the lifting capacity of your crane.



Technical specification

Capacity 3 m³
Density 0.8t/m³
Dead Weight 2600kg
Total lifting capacity  8t
Diameter of closing rope 24mm
Diameter of pulley 520mm
Falls 3


Bulk Material 520mm Pully 8t Mechanical Grab Bucket 0



Our Company

Bulk Material 520mm Pully 8t Mechanical Grab Bucket 1

With years of experience, the OUCO Marine Group has its own designing team and manufacturing

factory, excellent European management who has 47 years of experience on offshore business, which

also provides after sales services overseas.

Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane,

non-standard steel structure, more environmental-friendly operations and also truck crane with the range

from 15t to 150t.Port industry which includes cranes, hoppers and grabs.

OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.

We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.



By inquiry we would ask you to give us the following information:

  1. For what type of work is the grab to be used: Unloading of ship, dredging work, digging of soil, other handling.
  2. Type of crane / single, double or triple drum, capacity of crane.
  3. Type of material to be handled. Weight of material per cub.met. / cub.yds. Rate of angle of material etc.
  4. Any special wishes. e.g. rope diameter, distance between hoist ropes, distance between close ropes.
