| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO |
| Model Number: | OUCO-ECO Hopper-00 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, , T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Sets per year |
| Material: | Steel | Type: | ECO Hopper |
|---|---|---|---|
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Commissioning And Training, Online Support, Overseas Service Center Available |
| Warranty: | 1 Year | Color: | As Customer`s Request |
| Highlight: | Cyclone Type Eco Hopper,Dust Control Eco Hopper,ISO Discharging Hopper |
||

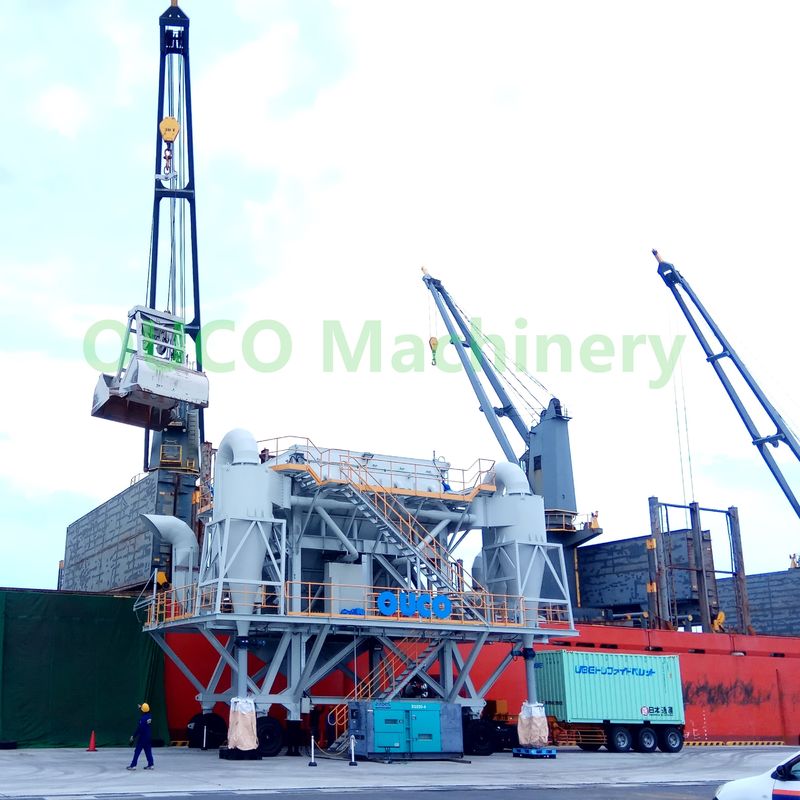

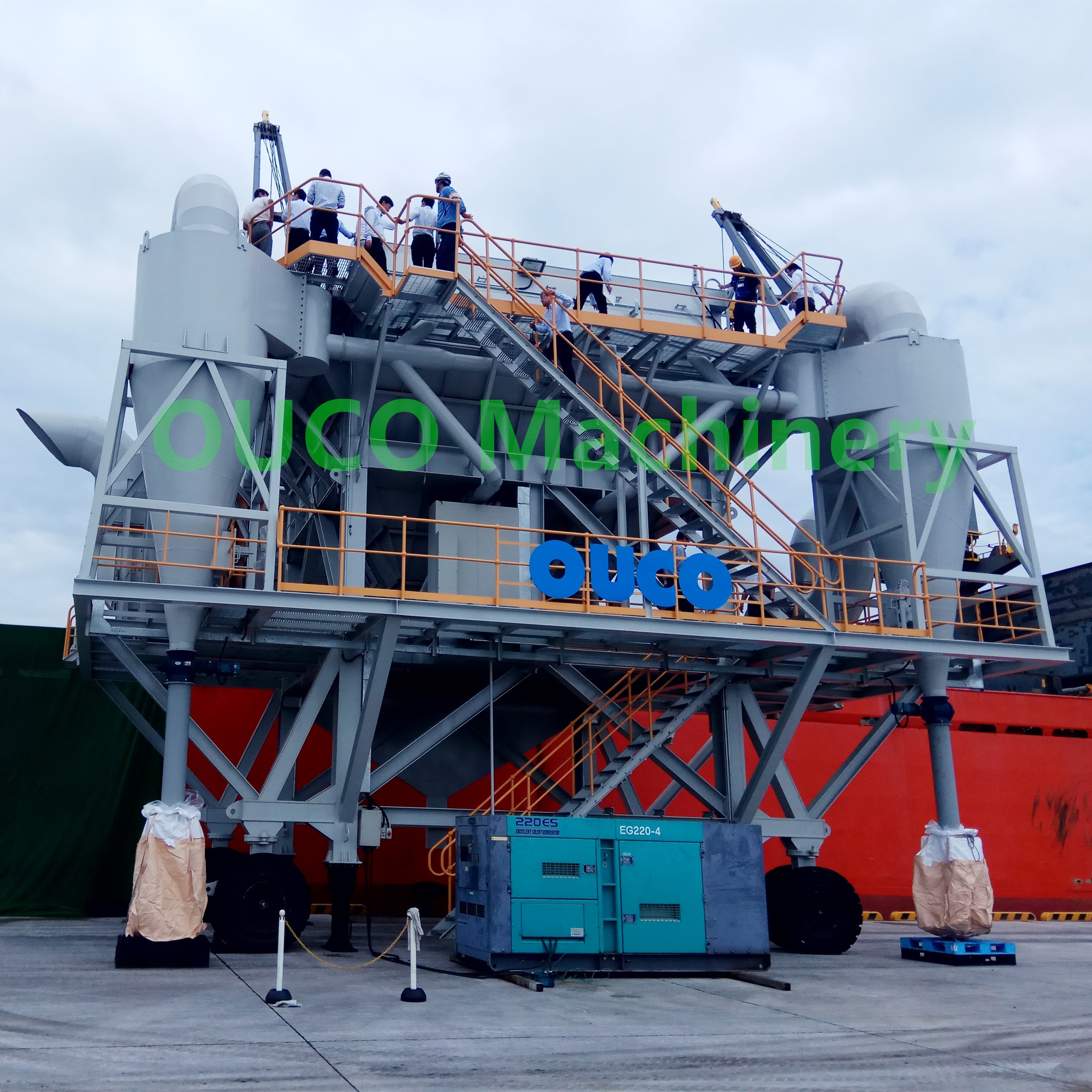

This is a simple mechanical system that has angled steel plates and vertically hanging rubber flaps. The system works as follows:
•Product dropped from Grab, passes through a grid by opening or pushing aside the vertical flaps and flowing over the
angled plates.
•Once product has passed through, the flaps fall back into their closed position.
•The displaced air volume within the hopper tries to escape, bringing with it dust, but once it reaches the flex-flap system the grid is sealed and so works as a non-return valve.
GA Drawing
Specifications
| Brand name | OUCO |
| Construction | Steel |
| Storage capacity | 2.5 times grab volume (Min.) |
| Discharge capacity | 750TPH |
| Top opening | 9000mm x 10000mm (Max.) |
| Bottom opening | 800mm x 800mm (Min.) x 2 Nos. |
| Base plate | 10 thick MS |
| Liners | 8+4 ultra plate |
| Manholes | 2 Nos. (Min.) |
| Travel assembly | 4 Nos. Double wheel solid rubber tyre bogies |
| Drop legs & pads | 4 Nos. |
| Side sheeting | 3600mm x 10000mm x 2 sides |
| Dust curtain | 4000mm x 9000 x 2 sides |
| Safety handrails | All around the sides at all floors |
| Stairs/ Ladder | Inbuilt steel structure for all floors |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Jiangsu OUCO Heavy Industry and Technology Co., Ltd
The OUCO Marine Group provides high quality handling solutions and access systems for the marine and offshore industries.Headquartered in beautiful Wuxi, Jiangsu, China, OUCO Marine Group has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and Middle East.
With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.
