| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CCS/BV/ABS/ISO/CE |
| Model Number: | OUCO-MC-3 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 45 days |
| Supply Ability: | 100 sets per year |
| SWL: | 3 CBM | Type: | Clamshell |
|---|---|---|---|
| Principle: | Mechanical | Usage: | Loading And Unloading Bulk Cargo |
| Material: | Q 345B | Warranty: | 1 Year |
| Structure: | Steel | Loading Capacity: | Related To Material Density |
| High Light: | Steel Mechanical Clamshell Grab Bucket,Q 345B Mechanical Clamshell Grab,Double Rope Connection Mechanical Grabs |
||
Product Description

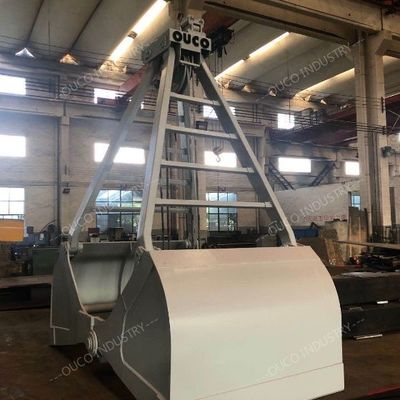

This mechanical clamshell grab is connected to the crane by two wire ropes, one holding rope and the other closing rope.
This grapple is designed for use with irregular large blocks of material, such as stone, coal, scrap steel, etc.
Fast production, short delivery time, simple operation, but low efficiency.
Low price,Durable and reliable, no need for power or other power sources.
If you use it for cleaning ship's hold, it may not give you satisfactory results, but for grabbing bulk debris, it is a good choice.
Grabs baffle can be changed freely, by increasing or decreasing the number of Grabs baffle, you can load different volumes of material.
Specification
| SWL (t) | 6.3 | 8 | 10 | 12.5 | 16 | 20 | 25 | ||
| Dead weight (Kg) | 4 times | 2300 | 2800 | 3440 | 4500 | 5600 | 7360 | 8800 | |
| 5 times rate | 2460 | 2880 | 3600 | 4660 | 5760 | 7520 | 9000 | ||
| Capacity (m3) | 4 times | 2.5 | 3.2 | 4 | 5 | 6.5 | 7.9 | 10.1 | |
| 5 times rate | 2.4 | 3.2 | 4 | 4.9 | 6.4 | 7.8 | 10 | ||
| Pulley | diameter mm | 355 | 400 | 450 | 500 | 560 | 630 | 630 | |
| Wire Rope | diameter mm | 18 | 20 | 22 | 24 | 26 | 28 | 32 | |
| length | 4 times | 11.5 | 12.8 | 13.8 | 15 | 16.5 | 17.8 | 18.6 | |
| m | 5 times | 14 | 15.5 | 16.8 | 18.5 | 20.5 | 21.8 | 23 | |
| stroke | 4 times | 5940 | 6600 | 7100 | 7680 | 8520 | 8920 | 9760 | |
| mm | 5 times | 7425 | 8250 | 8875 | 9600 | 10650 | 11150 | 12200 | |
| Dimension(mm) | A | 3080 | 3430 | 3700 | 4010 | 4380 | 4770 | 4990 | |
| B | 2600 | 2900 | 3100 | 3350 | 3640 | 4020 | 4120 | ||
| C | 2220 | 2410 | 2610 | 2850 | 3070 | 3270 | 3530 | ||
| D | 2540 | 2760 | 2950 | 3160 | 3450 | 3680 | 3910 | ||
| E | 1800 | 1930 | 2070 | 2220 | 2420 | 2580 | 2730 | ||
GA Drawing
Detail Picture
Customer Bulid
OUCO factory specializes in crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
| Packing | container |
| Delivery | Standard product : 1month Customized product: 2 months Certified products: 3-4 months |
Our services
Pre-Sales Service
1. Inquiry and consulting support.
2. View our Factory.
3. Check the load test before shipment.
After-Sales Service
1. Engineers available to serve machinery overseas.
2. Instruct your workers how to install and use the machine.
3. 24 months free maintenance.
Our Factory
For more details, please feel free to contact us.
