Clamshell Vessel Mechanical Grabs Bucket For Crane 27 CBM Capacity

Basic Information
Place of Origin: Jiangsu, China
Brand Name: OUCO
Certification: ISO,CE
Model Number: OUCO-MGB27-00
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Shipping Container/Wood Crate/nude
Delivery Time: 20-30 Days
Payment Terms: T/T, Western Union, L/C
Material: Steel Port: Shanghai
Part: Hose MOQ: 1 Set
Color: Customers' Requirments Warranty: 1 Year
Usage: Loading Peel: 2 Peels
Rope: 2 Package: Nude
High Light:

Mechanical Clamshell Vessel Grabs


27 CBM Capacity Mechanical Grabs


Mechanical Grabs Bucket For Crane

OUCO 27 CBM Capacity Clamshell vessel grabs Used for Crane vessel

Product Description

The mechanical grabs produced by OUCO are very popular among all our products, they are low in price, high in quality and do not require energy supply.
The mechanical grabs are also used in a wide range of applications, besides the gripping of goods, they are also suitable for the dredging sector, dredging waterways, due to their high dead weight.
This shipment has six sets of grabs, customized from us by the Thai customer, which can be adjusted to open or close the housing to perform the grabs, depending on the way of working and the specific gravity of the material to be handled.
The grabs are made of NM450 high wear resistant steel. All bearings are heavy duty and sealed for high performance.
Mechanical grabs have a long service life, do not break down often and require no electro-hydraulic system, but require maintenance of the hoisting wire rope to avoid excessive rope wear.

Product Features

The Grabs housing can be customized and the grab baffle can be removed to achieve different capacities.

The material to be loaded or unloaded is a mixture of materials with different specific gravity also suitable for our mechanical grabs.

OUCO can calculate the maximum SWL in combination with the lifting capacity of your crane.

C5M corrosion resistant Jotun paint, NM450 wear resistant steel.SA 2.5 grinding standard.


Brand OUCO
Usage Loading
Type Mechanical grab
Feature Other
Condition New
Capacity 27m³
Density 0.6t/m³
Dead Weight 10.3t
Total Lifting Capacity 17.28t
SWL of Crane 30T
Diameter of Closing rope 32mm
Diameter of Pulley 720mm
Fall of Ropes 4

GA Drawing

Clamshell Vessel Mechanical Grabs Bucket For Crane 27 CBM Capacity 0

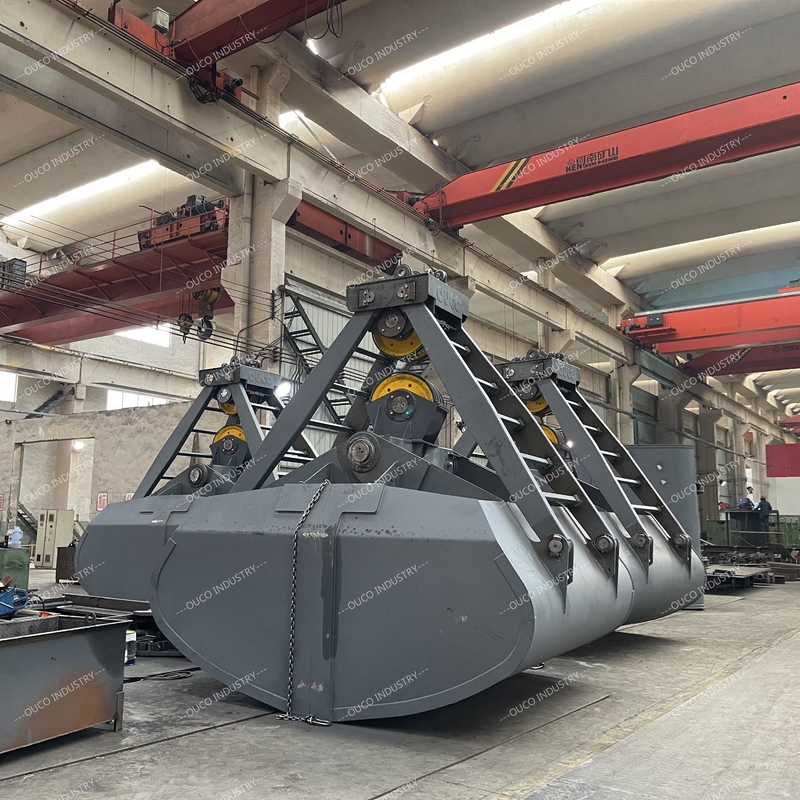

Product Picture

Clamshell Vessel Mechanical Grabs Bucket For Crane 27 CBM Capacity 1


Clamshell Vessel Mechanical Grabs Bucket For Crane 27 CBM Capacity 2


Clamshell Vessel Mechanical Grabs Bucket For Crane 27 CBM Capacity 3

Customer Bulid

OUCO factory specializes in crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Brand OUCO
Spare parts 1 set ( If needed, more spare parts are available to be provided according to customers' requirements )
Warranty 1 year( If needed, warranty time is available to be extended according to customers' requirements )
Packing container
Delivery Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months

Our services
Pre-Sales Service
1. Inquiry and consulting support.
2. View our Factory.
3. Check the load test before shipment.

After-Sales Service
1. Engineers available to serve machinery overseas.
2. Instruct your workers how to install and use the machine.
3. 24 months free maintenance.
