| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | ABS/CCS/ISO9001/BV |
| Model Number: | OUCO-12CBM -RCGB |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 30 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500 Sets per year |
| Product Name: | Salable Long Service Life 12CBM Radio Remote Control Grab Clamshell Crane Bucket | Type: | Remote Control Grab |
|---|---|---|---|
| Usage: | Grabbing Bulk | Capacity: | 12 Cubic |
| Peel: | Clamshell | Material: | Steel |
| Painting: | C5M | Polishing Standards: | SA2.5 |
| High Light: | Wireless Remote Control Grab Clamshell Bucket,630mm Wireless Remote Control Grab,Radio 12CBM Wireless Remote Control Grab |
||
Product Description

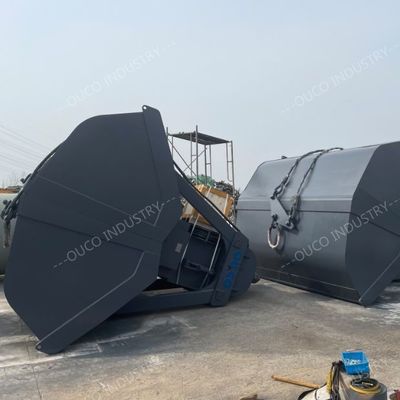

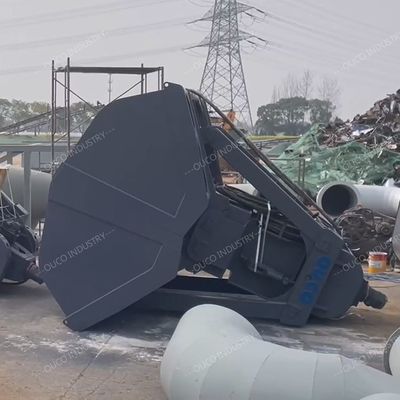

The 12m³ wireless remote control grab produced by OUCO plays an important role in ensuring the economic benefits of ships.
Both the crane and the grab are the main handling equipment at sea. You can operate the grab to unload the cargo alone or assemble it with the crane to complete the lifting work.
It selects the remote control imported from Italy, the protection level is IP56, and the signal strength is up to 200 meters.
The remote control grab opens and closes the main oil cylinder solenoid valve, and the remote control controls the opening and closing of the wireless remote grab.
This not only solves the difficulties of low working efficiency and high operating intensity of traditional single-cable grab buckets, but also can open the bucket to unload materials at any position in the air.
Product Features
Modular hydraulic system and electrical part, IP56, waterproof and anti-corrosion
Continuous working time up to 24 hours,
It is battery powered and can be used for about 150 hours on a single charge.
The grapple can be opened and closed while moving in the air.
The remote control range is 200~300 meters, and the signal is stable.
The delivery time is short, and the production progress is reported regularly.
A full set of replacement spare parts, product manuals, operation manuals, installation instructions.
Specifications
| Brand | OUCO |
| Usage | Loading |
| Capacity | 6-12 Cubic Meters |
| Painting Standard | C5M |
| Density |
0.9t/m³ |
| Total Lifting Capacity | 12.6t |
| Dead Weight | ~1100kg |
| Diameter of pulley | 630mm |
| Diameter of Closing Ropes | 32mm |
| Fall of Ropes | 3 |
| Done | 30 degree |
| Polishing standards | SA 2.5 |
GA drawing
Production details
Certificates
Customer Bulid
OUCO factory specializes in crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
| Packing | container |
| Delivery | Standard product : 1month Customized product: 2 months Certified products: 3-4 months |
