40CBM Eco Hopper

Basic Information
Place of Origin: Jiangsu, China
Brand Name: OUCO
Certification: ISO9001/CE
Model Number: OUCO-EH-40
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Shipping Container/Wood Crate/nude
Delivery Time: 90 days
Supply Ability: 100 sets per year
Volume: 40 CBM Material: Q345B
Type: Cyclone Working Condition: Port, Harbour
Moving Method: Tire Mounted Or Rail Mounted Condition: New
Usage: Dry Bulk Cargo Handling Shipping Way: Whole Shipping Or Disassembled
Highlight:

Dust Control Eco Hopper

,

40CBM Eco Hopper

,

ISO9001 Eco Hopper

40CBM Eco Hopper



Product Description

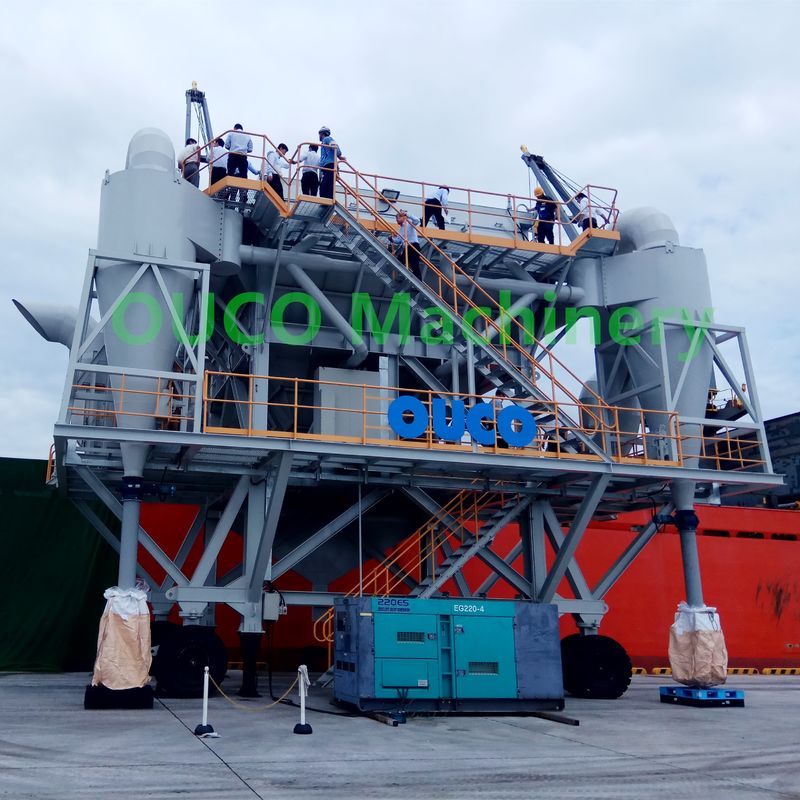

The Cyclone Eco Hopper, a dust controlled grab unloading hopper is an economical and ecologically sensitive solution fulfilling all needs for the efficient import of dry bulk cargoes.

The dust removal mechanism is to make the dust-containing airflow rotate, and the dust particles are separated from the airflow by the centrifugal force and trapped on the wall, and then the dust particles fall into the collecting bag by gravity. The Cyclone Eco Hopper is specially suitable for bigger size of materials, such as wood pellets, which is a new trend for the power plant to generate electricity as clean energy.



Our hopper can do diverse dust-catching design to ensure maximum dust-catching capacity,we designed strict force analysis to ensure the design rationlity and safty.our hopper are suitable for handing varieety of dry bulk material,such as slag,sand,stone,iron,soda ash etc.

We produce eco-friendly hooper which has excellent dust catching ability to make the envoriment more clearly than others.

Our hopper can be designed to be directly discharged onto the conveyor belt,can be also unloaded to the truck,unloading way could be customized.



Product Feature

1. The hoppers Large bucket capacity, and large open area
2. The hoppers are large stowing surface, and accordingly high coefficient of fullness
3. The hoppers are made of top quality structural and high strength steel, the adapters are made of domestic top quality products
4. The hoppers save working time, improve working efficiency.

Specification

Capacity ~500t/h(up to crane)
Material Wood pellet
Density 0.7t/m3
Discharge to Container
Volume ~40m3
Thickness of wall T8*Q345B
Lining NM400*T5mm
Load of tire ~14t
Travelling speed 10m/min (by towing)
Weight ~85t
Power ~105Kw



General Arrangement

40CBM Eco Hopper 0

40CBM Eco Hopper 1




Dust control

40CBM Eco Hopper 2







Our Company



OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters.



OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China.



OUCO has more than 150 employees, 20 are technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions’ certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.



OUCO provides high quality handling solutions and access systems for the Crane, port industries and various non-standard structural parts. The company has its own developing, designing, and manufacturing capacity for products of metallurgical complete sets of equipment, marine cranes, truck cranes, boiler desulfurization and denitrification environmental protection products in air pollution control field. Company products are widely used in the metallurgical, ship, port, electricity, petroleum, building materials and chemical industries.



OUCO has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and Middle East. It has an annual output of 11,000 tons of steel structure production capacity.
