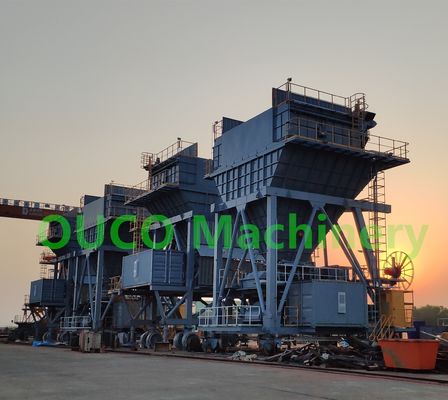

92t Coal Dust Control Port Conveyor Belt Hopper

Basic Information
Place of Origin: Jiangsu, China
Brand Name: OUCO
Certification: ISO9001/CE
Model Number: OUCO-EH-40
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Shipping Container/Wood Crate/nude
Delivery Time: 90 days
Supply Ability: 100 sets per year
Volume: 40 CBM Material: Steel Structure
Color: Customer Requirement Warranty: 1 Year
Type: Bag Filter Working Condition: Port
Moving Method: Rail Mounted Condition: New
High Light:

Dust Control Conveyor Belt Hopper

,

92t Conveyor Belt Hopper

,

CCS Bulk Bag Filler Hopper

92t Coal Dust Control Port Conveyor Belt Hopper



Product Description

Eco dust proof hopper is an economical, environmentally friendly dust discharge hopper, suitable for handling a variety of dry bulk materials. Such as gypsum, cement clinker, slag, sulfur, nickel ore, iron ore, fine copper mine, coal, bentonite, soda ash, limestone and so on. Eco dust proof hopper is an economical, environmentally friendly dust discharge hopper, suitable for handling a variety of dry bulk materials. Such as gypsum, cement clinker, slag, sulfur, nickel ore, iron ore, fine copper mine, coal, bentonite, soda ash, limestone and so on.

Specification



No. Item Brand
1 Capacity ~600t/h(peak) ~400t/h(average)
2 Material Cement/clinker
3 Density 1.8t/m3
4 Dedusting <20mg/m3
5 SWL 92T
6 Volume ~40m3
7 Discharge To truck
8 Power of fan 15 Kw×4
9 Thickness of wall plate T10×Q345B
10 Liner HARDOX400×T6mm
11 Travelling speed By towing less than 10m/min
12 Weight empty ~95t
13 Weight with full load ~175 t


Feature

1. The hoppers Large bucket capacity, and large open area
2. The hoppers are large stowing surface, and accordingly high coefficient of fullness
3. The hoppers are made of top quality structural and high strength steel, the adapters are made of domestic top
quality products

4. The hoppers save working time, improve working efficiency



92t Coal Dust Control Port Conveyor Belt Hopper 0

General Arrangement

92t Coal Dust Control Port Conveyor Belt Hopper 1



Effective dust control

It is the main problem for all ports that the pollution caused by handling cargoes, and it is inevitable to cause dust when cargoes discharged to normal hoppers. Eco dust hopper equipped with a simple and effective dust-proof system to minimize dust flying during grab operating. Hopper is divided into inside and outside, separated by elastic rubber dust isolation device. The main function of the outer hopper is to receive cargoes from grabs.

92t Coal Dust Control Port Conveyor Belt Hopper 2



As shown in the picture, our Eco dust control hopper is designed with a dust-control device. Through this dust-control device, most dust and materials can be isolated first. The whole dust collector is installed in the outer hopper feed opening for collecting the dust raised when the grab is discharging. Take the bulk of the dust out of the hopper first and collect the dust back into the main stream.

The dust-control device is composed of a pressure-bending forming plate and an elastic rubber sheet. When the dry bulk material is grabbed and released to the hopper, the elastic rubber sheet is squeezed out directly by the material due to gravity, falling into the hopper. This will allow a lot of air to be replaced and the air goes through the precipitator into the atmosphere, taking away most of the dust. Direct pressure within the hopper and the atmosphere, the rubber sheet rebound, forming a closed space, dust was isolated in a confined space. Then the dust will be kept inside until the system removes it all.

The rubber dust-control device has controlled the volume of dust, thereby facilitating the use of a compact dust catcher instead of a large dust-catching system.



Our Company

With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.

Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.

OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.

We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.





FAQ

1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
