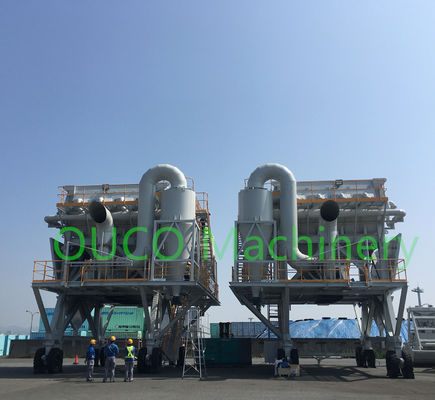

Discharge Tire Mounted Wooden Pellet 40CBM Eco Hopper

Basic Information
Place of Origin: Jiangsu, China
Brand Name: OUCO
Certification: ISO9001/CE
Model Number: OUCO-EH-40
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Shipping Container/Wood Crate/nude
Delivery Time: 90 days
Supply Ability: 100 sets per year
Volume: 40 CBM Material: Q345B
Color: Customer Requirement Type: Cyclone
Working Condition: Port, Harbour Moving Method: Tire Mounted By Towing
Condition: New Usage: Material Handling
High Light:

Wooden Pellet Eco Hopper


40CBM Eco Hopper


Wooden Pellet Cargo Hopper

Discharge Tire Mounted Wooden Pellet 40CBM Eco Hopper


Product Feature

1. The hoppers Large bucket capacity, and large open area
2. The hoppers are large stowing surface, and accordingly high coefficient of fullness
3. The hoppers are made of top quality structural and high strength steel, the adapters are made of domestic top quality products
4. The hoppers save working time, improve working efficiency.


Capacity ~500t/h(up to crane)
Material Wood pellet
Density 0.7t/m3
Discharge to Container
Volume ~40m3
Thickness of wall T8*Q345B
Lining NM400*T5mm
Load of tire ~14t
Travelling speed 10m/min (by towing)
Weight ~85t
Power ~105Kw



Product Description

The Cyclone Eco Hopper, a dust controlled grab unloading hopper is an economical and ecologically sensitive solution fulfilling all needs for the efficient import of dry bulk cargoes.

The dust removal mechanism is to make the dust-containing airflow rotate, and the dust particles are separated from the airflow by the centrifugal force and trapped on the wall, and then the dust particles fall into the collecting bag by gravity. The Cyclone Eco Hopper is specially suitable for bigger size of materials, such as wood pellets, which is a new trend for the power plant to generate electricity as clean energy.


Discharge Tire Mounted Wooden Pellet 40CBM Eco Hopper 0


General Arrangement

Discharge Tire Mounted Wooden Pellet 40CBM Eco Hopper 1


Dust control

Discharge Tire Mounted Wooden Pellet 40CBM Eco Hopper 2



Customer visiting

Discharge Tire Mounted Wooden Pellet 40CBM Eco Hopper 3

Our Company

With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.

Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.

OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.

We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
