| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | OUCO |
| Certification: | ISO/CE/CCS/BV/ABS |
| Model Number: | OUCO-GB-4 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 45 days |
| Supply Ability: | 100 sets per year |
| Warranty: | 12 Months | Color: | Customized |
|---|---|---|---|
| Original: | Jiangsu,China | Type: | Clamshell |
| Operation Method: | Wireless Remote Control | Usage: | Loading And Unloading Bulk Cargo |
| Material: | Q345B And NM400 | Peel: | 2 Peels |
| High Light: | Motorized Wireless Remote Control Grab,10t Wireless Remote Control Grab,CCS Remote Control Grab |
||

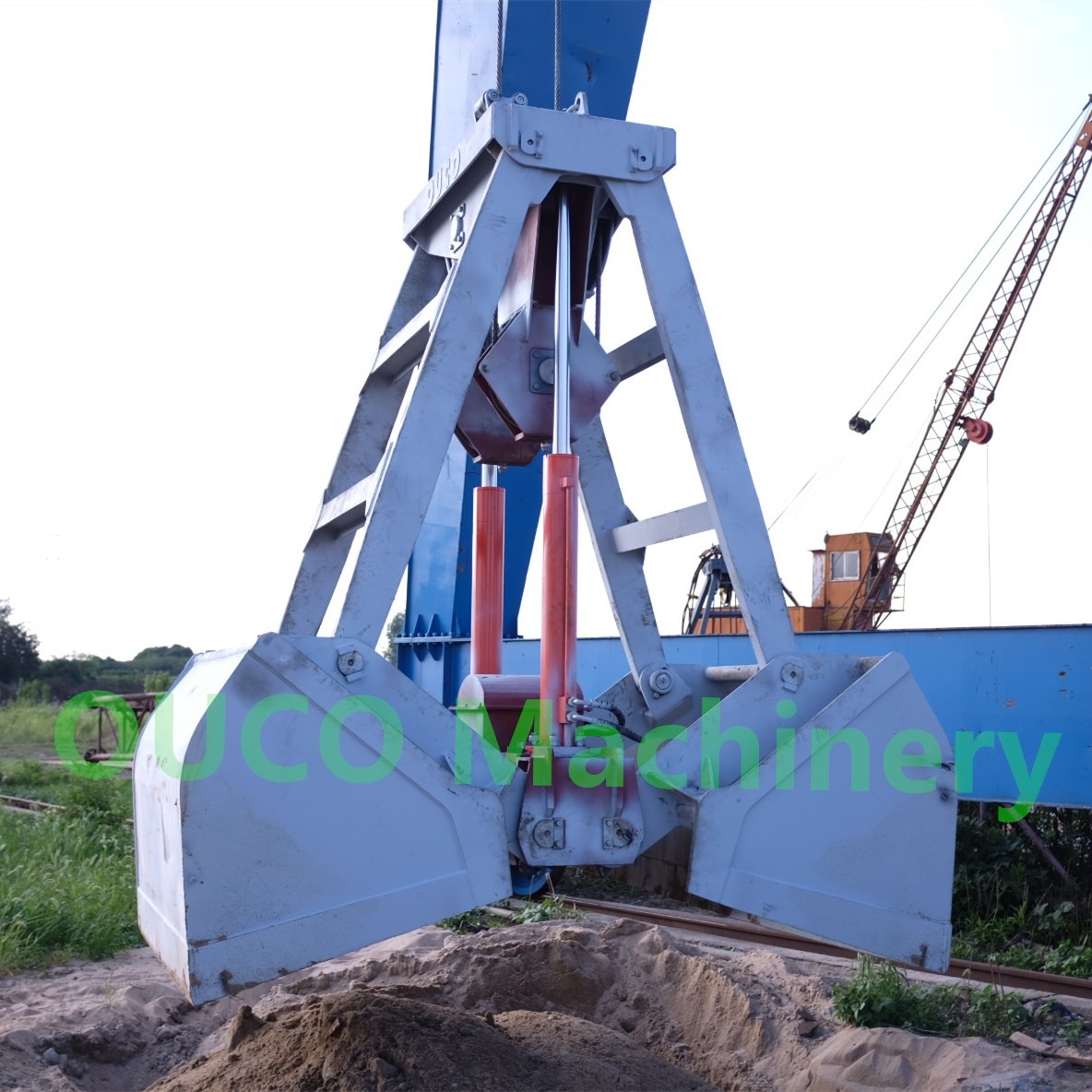

Motorized 10t Dual Scoop Wireless Remote Control Grab
Product Feature
OUCO Wireless remote control grab is a dual scoop grab that applies radio control technique to single
rope grab. Compare with traditional single rope grab, it's more reliable, easy to operate, and typically operate in combination with single hook crane and ship deck crane.
Advantages of Wireless Remote Control Grab
Decreased cycle time thereby reducing operational cost.
Enhanced ease and convenience of operation.
Controlled opening of the grab,enabling a single Grab to discharge cargo into any kind od Hopper irrespective of the size.
No cables between transmitter and receiver,thereby no maintenance hassles due to cable faults.
Can be operated from a distance of 100 meters.
Shockless,noiseless and smooth operation.
BV,CCS,LR certificate supply.
Import key parts.
Independent power supply.
Technical specification
| 1 | SWL | 10t |
| 2 | Volume | 4m³ |
| 3 | Density | 0.8-2.5 t/ m³ |
| 4 | Diameter of closing rope | 36 mm |
| 5 | Length of closing rope | 12 m |
| 6 | Diameter of pulley | 650 mm |
| 7 | Stroke of closing rope | 4210 mm |
| 8 | Dead weight | 9.5 t |
Transportation
Our Company
With years of experience, the OUCO Marine Group has its own designing team and manufacturing
factory, excellent European management who has 47 years of experience on offshore business, which
also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane,
non-standard steel structure, more environmental-friendly operations and also truck crane with the range
from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
FAQ
We need to know the data as following for designing a accurate plan:
1. What's the lifting material?
2. What's the cubage of the Crane Grab?
3. What's the maximum lifting weight of the crane?
4. What's the working environment?
