| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO |
| Model Number: | OUCO-HGB-00-O |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, , T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per yaer |
| Product: | Six Flaps Of The Electro Hydraulic Garbage Grab Structure Q355 Material | Material: | Q355,Q460,NM360/400,HARDOX450/500 |
|---|---|---|---|
| Type: | Orange Peel Grab | Condition: | New |
| After-sales Service Provided: | Commissioning Training, Online Support, Overseas Service, Installation Instructions | Warranty: | 1 Year |
| Color: | A Variety Of Colors Optional Or Customized | Shipping: | Shipping Container, LCL Or FCL |
| Brand: | OUCO | Place Of Origin: | Wuxi, China |
| High Light: | Electro Hydraulic Garbage Grab Bucket,Q355 Hydraulic Garbage Grab Bucket,Six Flaps Hydraulic Grab Bucket |
||

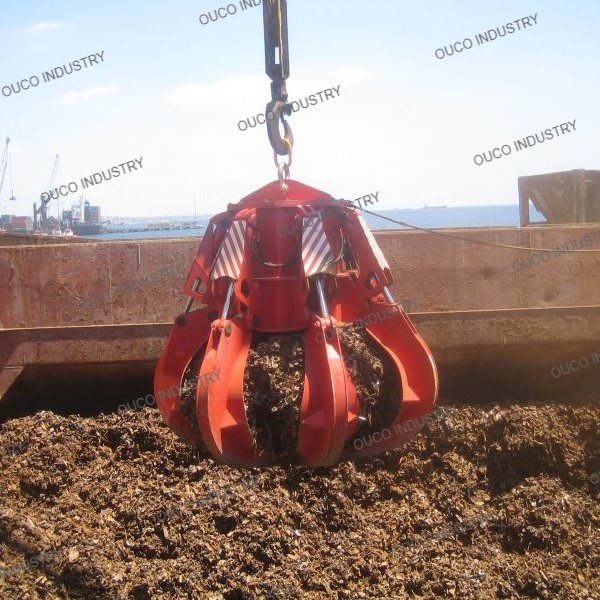

The six flaps of the electro-hydraulic garbage grab are assembled with the frame through the main pin shaft, forming a lotus shape when it works. The oil cylinder connected to the bucket flap controls the closure and opening of the bucket flap to grab or drop materials. High alloy steel is used for precision machining and quenching of the main pin shaft.Bucket tip is made of wear-resistant alloy cast steel. The frame is a basic part, which is made of a wear-resistant steel plate. The hydraulic pump station is installed in the frame, which is composed of a motor, high-pressure plunger pump, and control valve block.The lower space of the frame becomes the oil tank of the hydraulic system. The hydraulic pump station can be removed from the frame without dismantling the wire rope, which is easy for maintenance. The two ends of the oil cylinder are respectively fixed on the upper part of the frame and the bucket disc with the joint bearing. As the cylinder rod extends and retracts, the flap closes and opens. The main components of the hydraulic system are famous products, which make the grab have excellent performance. Grab can work in all kinds of severe environments.
Specifications
| Type | Orange peel grab |
| Material of excavator bucket | Q345B,Q460,NM360/400,HARDOX450/500 |
| Max opening | 1200-2200mm |
| Weight | 550kg-1700kg |
| Machine model | All brands and sizes |
| Color | Customer Required |
| Warranty | 6 Months-12 Months |
| Packing | Wooden Pallet or Customized |
| Condition | 100% new |
| Grab hook Number | 4-6 |
