| Place of Origin | Jiangsu, China |
| Brand Name | OUCO |
| Certification | ISO,CE, CCS, ABS, BV, RMRS |
| Model Number | OUCO-9T16.3M-KTB |
Product Description:
OUCO's 9T16.3M Telescopic and Knuckle Shipboard Crane meet diverse marine and offshore needs with a knuckle boom for enhanced maneuverability. It offers more lifting points while occupying minimal space, ensuring ease of operation, maintenance, and hassle-free installation on decks or in harbors.
At its core, the crane's functionality lies in its knuckle boom and telescopic features, providing flexibility to adjust the boom's length and angle for specific operational requirements. This adaptability allows seamless lifting at different heights and angles, making it invaluable in maritime scenarios. The compact design makes it ideal for various ship types and offshore installations, offering a significant advantage in specialized applications.
From shipbuilding to marine engineering, the versatility of knuckle boom telescopic cranes enhances production efficiency and reduces costs. Crafted from high-strength steel, this crane ensures exceptional load-bearing capacity, performing effortlessly in lifting heavy equipment or transporting hefty loads over long distances.
Safety is paramount in the design and production of our telescopic boom crane. The control system includes overload protection for safe operation. With four essential functions and equipped with separate operating valves for precise control, this crane supports both platform and remote control, providing unmatched versatility in handling tasks.
Key Technical Specifications:
| TECHNICAL PARAMETERS | ||
| 1. | SWL | See Load Chart |
| 2. | MAX. WORKING RADIUS | 16.31M |
| 3. | MIN. WORKING RADIUS | 3M |
| 4. | HOISTING SPEED | 0-12m/min |
| 5. | HOISTING Height | 40m |
| 6. | SLEWING SPEED | 0.6r/min |
| 7. | SLEWING ANGLE | 360° |
| 8. | FIRST LUFFING TIME | ~120S |
| 9. | WORKING CONDITION | |
| TRIM | ≤2° | |
| HEEL | ≤7° | |
| 10. | Electric Motor Power | Y135S-4-H |
| Power | 110kw | |
| Speed | 1480r/min | |
| POWER RESOURCE | AC440V/60HZ/3P | |
| PROTECT CLASS | IP56 | |
| 11. | OIL FLOW | 170L/min |
| 12. | INSULATE CLASS | F |
| 13. | WORKING TYPE | S1 |
| 14. | Ambient Temperature | -10° ~+45° |
| 15. | Model | Marine Crane |
GA Drawing

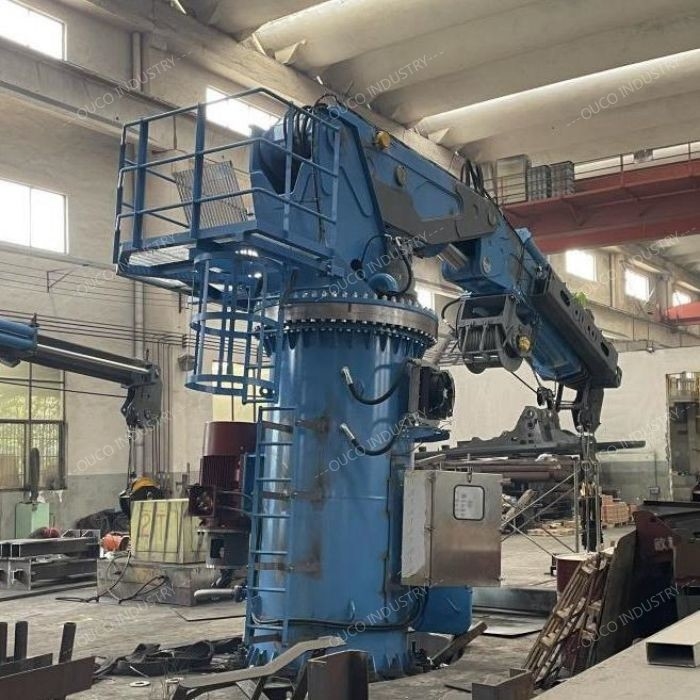

Product Picture
Production Process
Company Profile
The OUCO Group provides high quality handling solutions and access systems for the marine and offshore industries.
Headquartered in beautiful Wuxi, Jiangsu, China, OUCO Group has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and the Middle East.
With years of experience, the OUCO Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience in offshore business, which also provides after-sales services overseas.
OUCO has specialized design team, production and processing team, welding team, painting team, installation team, transportation team and sales team. The company has more than 150 employees, 20 technicians, including 5 with senior titles, 10 with intermediate titles, 50 welders certified by major institutions such as CCS and ABS. And many flaw detectors, quality system auditors and inspectors certified by professional institutions.
Customer Build
OUCO Group has been specializing in the field of cranes for more than 10 years. OUCO can design and manufacture any type of cranes, grabs and other handling equipment according to your requirements.
To better protect the safety of our customers' goods, we provide professional, environmentally friendly, convenient and efficient packaging services. Our comprehensive service system results in a high level of customer satisfaction.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
| Packing | container |
| Delivery | Standard product : 1month Customized product: 2 months Certified products: 3-4 months |
Our factory has state-of-the-art production and testing equipment, such as CNC milling machine, gantry crane, large-scale machining center, modular machine tools, cold shears, etc. We can produce all kinds of customized equipment according to your needs and ensure high-precision machining.
Pre-Sales Service
1. Inquiry and consulting support.
2. View our Factory.
3. Check the load test before shipment.
After-Sales Service
1. Engineers are available to serve machinery overseas.
2. Instruct your workers how to install and use the machine.
3. 24 months of free maintenance.
We regularly participate in prestigious maritime trade shows around the world. Our engineers are professional and own high-level English skills, rich engineering knowledge and working experience.
At previous exhibitions, we have established strong long-term cooperation with many customers!
OUCO factory is certified by SGS, 1S09001, CE, BV, CCS, and other authoritative institutions.
For more details, please feel free to contact us.Welcome to visit our factory!
