35 TON SWL Marine A Frame for OSV Vessel
  • 35 TON SWL Marine A Frame for OSV Vessel
  • 35 TON SWL Marine A Frame for OSV Vessel
  • 35 TON SWL Marine A Frame for OSV Vessel
  • 35 TON SWL Marine A Frame for OSV Vessel
  • 35 TON SWL Marine A Frame for OSV Vessel

35 TON SWL Marine A Frame for OSV Vessel

Place of Origin Jiangsu, China
Brand Name OUCO
Certification ISO,CE, CCS, ABS, BV, RMRS
Model Number OUCO-35T-A-Frame
Product Details
Product:
35 TON SWL Marine A-Frame For OSV Vessel
SWL:
35 TON
Model:
OUCO-35T-A-Frame
Application:
Offshore Launch And Recovery
Material:
Special Materials, Stainless Steel And Superior Paint
Certified:
ABS\CCS\BV\RMRS
Port:
Shanghai, Zhangjiagang
Delivery:
60 Days
Highlight:

Marine A-Frame

,

OSV Vessel Marine A-Frame

,

35 TON SWL Marine A-Frame

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Shipping Container
Delivery Time
30-60 Days
Payment Terms
T/T, Western Union, T/T
Supply Ability
50 Set/ Year
Product Description

35 TON SWL Marine A-Frame for OSV Vessel


Product Description:

The A-frame crane features a specialized steel structure, powered by a built-in engine and hydraulic power unit, and can be operated autonomously or via remote control. It is designed to perform various underwater operations such as anchor handling, buoy handling, diving support, and the launch and recovery of submersibles.

This 35-ton A-frame is specifically designed for offshore launch and recovery operations. It is mounted on the stern of an OSV vessel, with an overall height of 11,020 mm and an overall width of 13,670 mm. The A-frame has an outward angle of 45 degrees and an inward angle of 14.5 degrees. It comes equipped with a complete hydraulic power unit, certificates, approved drawings, manuals, spare parts, and load charts.

By installing our A-frame, the vessel is ideally suited for inspecting submarine cables, pipelines, and subsea assets in water depths of up to 500 meters, as well as performing a variety of maintenance and repair tasks.


GA Drawing

35 TON SWL Marine A Frame for OSV Vessel 0

35 TON SWL Marine A Frame for OSV Vessel 1

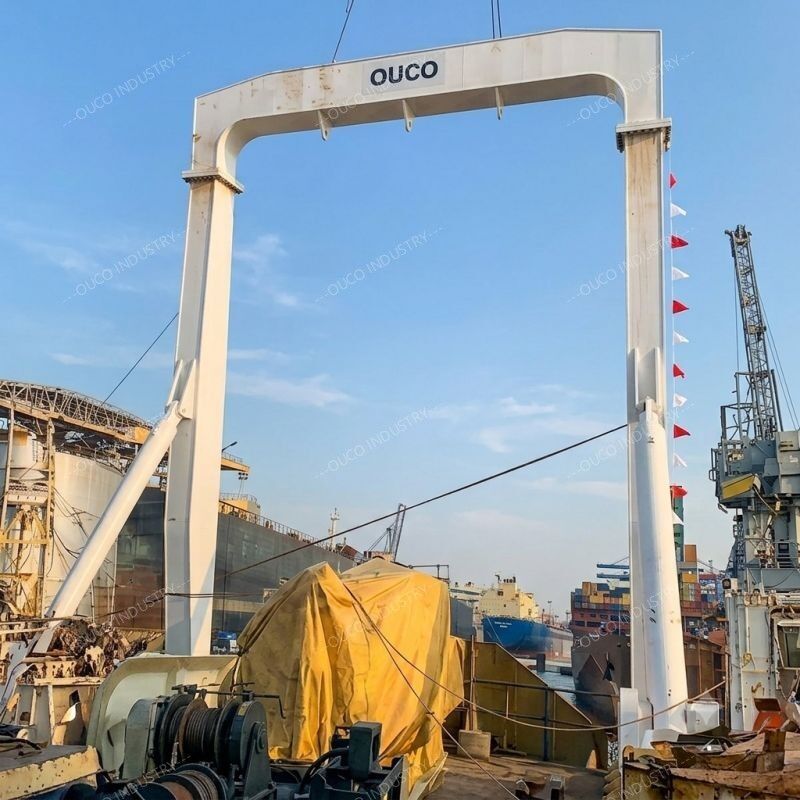

Product Picture

35 TON SWL Marine A Frame for OSV Vessel 2

35 TON SWL Marine A Frame for OSV Vessel 3

Company Profile

The OUCO Group provides high quality handling solutions and access systems for the marine and offshore industries.
Headquartered in beautiful Wuxi, Jiangsu, China, OUCO Group has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and the Middle East.
With years of experience, the OUCO Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience in offshore business, which also provides after-sales services overseas.

35 TON SWL Marine A Frame for OSV Vessel 4

Our Team

OUCO has specialized design team, production and processing team, welding team, painting team, installation team, transportation team and sales team. The company has more than 150 employees, 20 technicians, including 5 with senior titles, 10 with intermediate titles, 50 welders certified by major institutions such as CCS and ABS. And many flaw detectors, quality system auditors and inspectors certified by professional institutions.

35 TON SWL Marine A Frame for OSV Vessel 5

Customer Build
OUCO Group has been specializing in the field of cranes for more than 10 years. OUCO can design and manufacture any type of cranes, grabs and other handling equipment according to your requirements.

To better protect the safety of our customers' goods, we provide professional, environmentally friendly, convenient and efficient packaging services. Our comprehensive service system results in a high level of customer satisfaction.

Brand OUCO
Spare parts 1 set ( If needed, more spare parts are available to be provided according to customers' requirements )
Warranty 1 year( If needed, warranty time is available to be extended according to customers' requirements )
Packing container
Delivery Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months

35 TON SWL Marine A Frame for OSV Vessel 6

The Equipment

Our factory has state-of-the-art production and testing equipment, such as CNC milling machine, gantry crane, large-scale machining center, modular machine tools, cold shears, etc. We can produce all kinds of customized equipment according to your needs and ensure high-precision machining.

35 TON SWL Marine A Frame for OSV Vessel 7

Our Services

Pre-Sales Service

1. Inquiry and consulting support.

2. View our Factory.

3. Check the load test before shipment.



After-Sales Service

1. Engineers are available to serve machinery overseas.

2. Instruct your workers how to install and use the machine.

3. 24 months of free maintenance.

35 TON SWL Marine A Frame for OSV Vessel 8

Exhibitions

We regularly participate in prestigious maritime trade shows around the world. Our engineers are professional and own high-level English skills, rich engineering knowledge and working experience.

At previous exhibitions, we have established strong long-term cooperation with many customers!

35 TON SWL Marine A Frame for OSV Vessel 9

Factory Certificate

OUCO factory is certified by SGS, 1S09001, CE, BV, CCS, and other authoritative institutions.

35 TON SWL Marine A Frame for OSV Vessel 10

Products Certificate

35 TON SWL Marine A Frame for OSV Vessel 11



For more details, please feel free to contact us.Welcome to visit our factory!
