1.5T@10M Stiff Boom Anti-collision Crane
The OUCO 1.5T@10M stiff boom marine crane combines reliability, cost-efficiency, and high performance for continuous offshore and maritime applications. Its rigid jib design offers simpler mechanics and greater lifting precision than complex alternatives, making it the durable and economical choice for shipowners.
Key Features & Specifications:
-
Lifting Capacity: 1.5 tons @ 10m / 3.5 tons @ 7m
-
Operational Range: 1.7m - 10m working radius; 25m hoisting height
-
Efficiency: Equipped with two independent winches for flexible load handling. A 360° continuous slewing capability and a hoisting speed of 0-20 m/min enable swift and responsive operation.
-
Marine Durability: The core structure is built from high-strength, marine-grade steel for outstanding integrity. A specialized epoxy coating provides superior defense against corrosion, UV, and salt spray.
-
Enhanced Safety: Critical components are guarded with collision-resistant frames. The IP56-protected electric control cabin ensures functionality in high-humidity conditions, and a rotating hook allows for both vertical and side-load handling.
OUCO’s stiff boom marine cranes are also fully customizable. Customers can specify parameters such as lifting capacity, boom length, control type (manual, electric, or remote), and coating system to suit their vessel design and operational environment.
Built with premium materials, precision components, and robust engineering, our marine crane is the ideal solution for offshore support vessels, tugboats, and workboats seeking dependable lifting performance with low ownership costs and long-term operational reliability.
Parameters
| No. |
Parameter Category |
Specification |
| 1 |
SWL |
See load chart |
| 2 |
WORKING RADIUS |
1.7~10m |
| 3 |
HOISTING SPEED |
0~20m/min |
| 4 |
HOISTING HEIGHT |
25m |
| 5 |
SLEWING SPEED |
~0.8r/min |
| 6 |
SLEWING ANGLE |
360° |
| 7 |
LUFFING TIME |
~40S |
| 8 |
WORKING CONDITION - HEEL |
≤8° |
| 8 |
WORKING CONDITION - TRIM |
≤2° |
| 9 |
MAX.WIND SPEED - Working condition |
400Pa |
| 9 |
MAX.WIND SPEED - Parking condition |
2000Pa |
| 10 |
ELEC. MOTOR - Model |
Y200L-4-H |
| 10 |
ELEC. MOTOR - POWER |
30KW |
| 10 |
ELEC. MOTOR - SPEED |
1480r/min |
| 10 |
ELEC. MOTOR - POWER RESOURCE |
AC380V/50HZ |
| 10 |
ELEC. MOTOR - PROTECT CLASS |
F |
| 10 |
ELEC. MOTOR - WORKING TYPE |
S1 |
| 11 |
AMBIENT TEMP. |
-30°~45° |
| 12 |
DEAD LOAD |
~4600kg |
GA Drawing

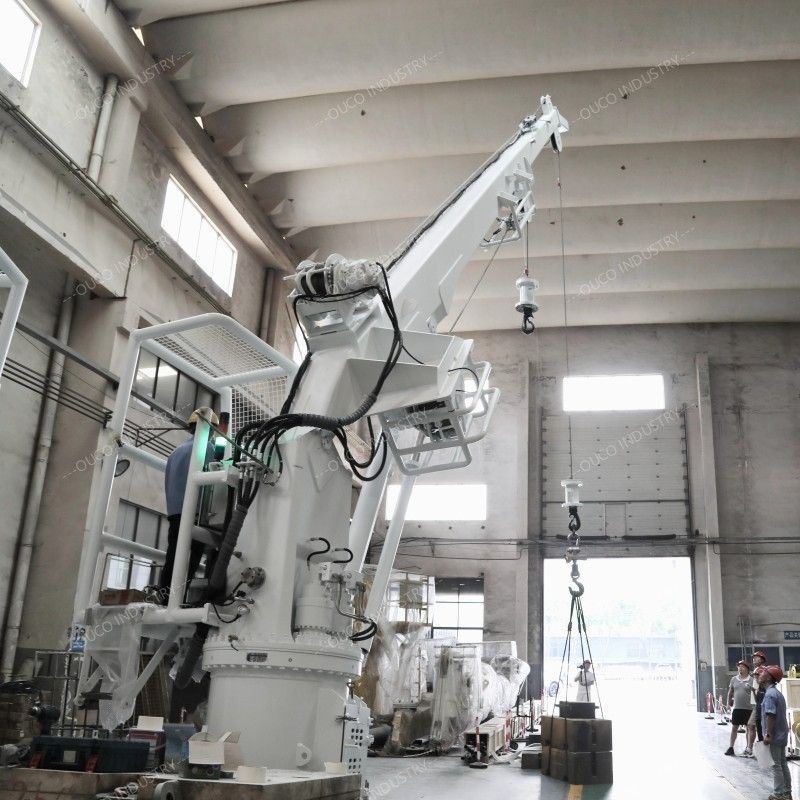

Product Picture
Shipping and Delivery
Production Process
About OUCO Company
Founded in 1984, OUCO INDUSTRY is a leading manufacturer of high-quality marine equipment, specializing in cranes, lifting systems, and material handling solutions. With over 40 years of experience, we are recognized for delivering innovative and reliable products tailored to the maritime industry. Our products are trusted by clients globally, including those in the luxury yacht, offshore, port, and industrial sectors.
Our state-of-the-art facility in Jiangsu Province, China, spans 48,000 square meters and is home to over 150 skilled professionals. We are dedicated to ensuring that every product we deliver meets the highest standards of quality, performance, and safety.
Our Team
Customer Build
OUCO Group has been specializing in the field of cranes for more than 10 years. OUCO can design and manufacture any type of cranes, grabs and other handling equipment according to your requirements.
To better protect the safety of our customers' goods, we provide professional, environmentally friendly, convenient and efficient packaging services. Our comprehensive service system results in a high level of customer satisfaction.
| Brand |
OUCO |
| Spare parts |
1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty |
1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
| Packing |
container |
| Delivery |
Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months |
The Equipment
Our Services
Exhibitions
Factory Certificate
OUCO factory is certified by SGS, 1S09001, CE, BV, CCS, and other authoritative institutions.
Products Certificate
For more details, please feel free to contact us.Welcome to visit our factory!
