10m CCS Folding Boom 1t Compact Pedestal Jib Crane

Basic Information
Place of Origin: Jiangsu, China
Brand Name: OUCO
Certification: ISO9001/CE/ABS/CCS/BV
Model Number: OUCO-TB-1T10M
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Shipping Container/Wood Crate/nude
Delivery Time: 60 days
Supply Ability: 100 sets per year
SWL: 1t10m Color: Customer Request
Max. Working Radius: 10m Warranty: 1 Year
Certification: CCS Feature: Straight And Telescopic
Power: 11 Kw Condition: New
High Light:

10m Pedestal Jib Crane


1t Pedestal Jib Crane


CCS Marine Jib Crane

10m CCS Folding Boom 1t Compact Pedestal Jib Crane


Product Description

OUCO manufactures telescopic cranes in different boom lengths and depending on the crane's application, we offer certification by all major classification societies and a broad set of available accessories. They are designed and manufactured in conformity with the current Marine Rules and they can be customized on request.

Simple design simplifies the maintenance.

Compliance with the most demanding safety rules and regulations;

Overload protection;

Reliable long service life guaranteed through the use of high quality reputable components, extensive endurance testing and easy future upgrades.


1 SWL 1t10m
2 Max. Working radius 10m
3 Min. Working radius 3m
4 Hoisting speed 0-12m/min
5 Hook travel 25m
6 Slewing speed 0-1r/min
7 Slewing angle 360º free
8 Luffing time ~35s
9 Luffing angle 0~75º
10 Design temperature -20º~+45º
11 Working condition



12 Dead weight 2700Kg
13 Motor

Power : 22Kw

Speed 1450r/min

Power resource AC440V/60Hz

14 Advised oil flow 100L/min

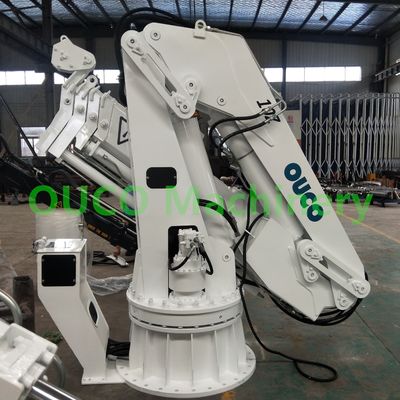

10m CCS Folding Boom 1t Compact Pedestal Jib Crane 0

General Arrangement

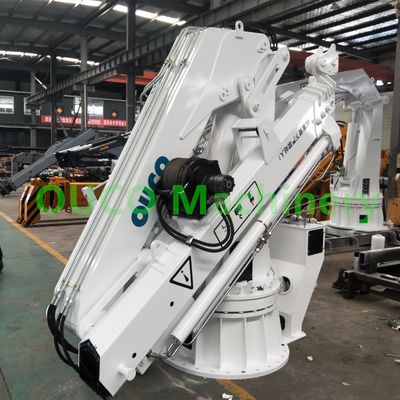

10m CCS Folding Boom 1t Compact Pedestal Jib Crane 1


10m CCS Folding Boom 1t Compact Pedestal Jib Crane 2


10m CCS Folding Boom 1t Compact Pedestal Jib Crane 3

Our Company

With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.

Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.

OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.

We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.




1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
