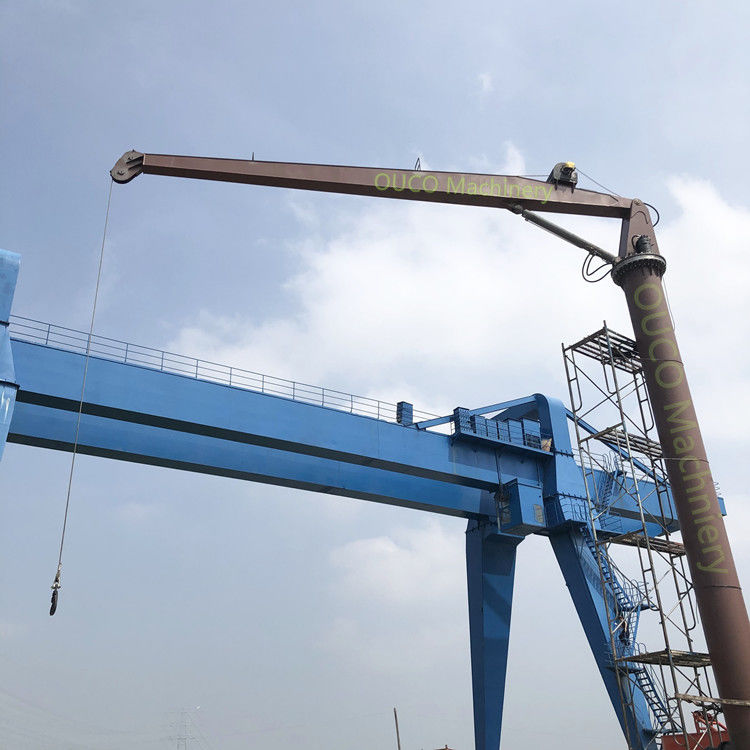

1.36t Compact 360 degree Seaplane Lifting Marine Cranes

Basic Information
Place of Origin: Jiangsu, China
Brand Name: OUCO
Certification: ISO9001/CE/ABS/CCS/BV
Model Number: OUCO-TB-1.36T9.1M
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Shipping Container/Wood Crate/nude
Delivery Time: 60 days
Supply Ability: 100 sets per year
Color: Customer Request Warranty: 1 Year
Usage: Land Slewing Angle: 360 Degree Free
Boom Type: Fixed Color: Customized
Material: Steel Structure Luffing: 75°
High Light:

Seaplane Lifting Marine Cranes


1.36t Marine Cranes


Seaplane Lifting Marine Deck Crane

1.36t Compact 360 Degree Seaplane Lifting Marine Cranes

Product Description


The crane is installed with a rolled steel pedestal for bolting or welding to deck with a height of OUCO standard and pedestal diameter is depend on the SWL of the crane. The standard SB crane will supply with an operator platform. Operator cabin is optional.

The crane and all it associated components / equipment shall be designed in accordance to any leading classification societies which is upon request. The crane shall be tested and adjusted ready for installation by welding or bolting to vessel deck. Power connection shall be provided for electrical supply through integrated electrical slip rings.

SB series crane: End User Advantages

1. Compact design
2. Small footprint
3. Delivered as one complete unit ready for installation to vessels
4. Easy access for periodic maintenance, service and repair
5.24 hours after sales searvices support.


Standard equipment

# 360 C* continuous rotation.

# -10 C*----+45 C* working temperature.

# certified A36 & S690 steel structure.

# pedestal ready for mounting or weld to vessel main structure .

# stainless steel grease nipples.

# precise step less speed control.

# simultaneous operations of 2 or more function.

# emergency for hydraulic stop device.

# visual and audible warning alarm



1 SWL 1.36 tons at 9.1 meters
2 Maximum Working Radius 9.1 meters
3 Minimum Working Radius 2.6 meters
4 Hoisting Height 20 meters
5 Hoisting Speed 18m/min
6 Slewing Angle 270°
7 Luffing time 20s
8 Protect Class IP56
9 Insukate Class F
10 Working Type S1
11 Design Temperature -10°~45°
12 Power Source 380V, 50Hz



Process at OUCO Workshop

1.36t Compact 360 degree Seaplane Lifting Marine Cranes 0

1.36t Compact 360 degree Seaplane Lifting Marine Cranes 1


Our Company

With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.

Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.

OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.

We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
