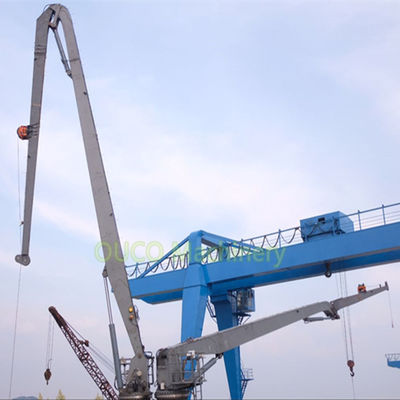

30m Knuckle Boom 1t Wide Shipyard Crane Working Radius
  • 30m Knuckle Boom 1t Wide Shipyard Crane Working Radius
  • 30m Knuckle Boom 1t Wide Shipyard Crane Working Radius
  • 30m Knuckle Boom 1t Wide Shipyard Crane Working Radius
  • 30m Knuckle Boom 1t Wide Shipyard Crane Working Radius

30m Knuckle Boom 1t Wide Shipyard Crane Working Radius

Place of Origin Jiangsu, China
Brand Name OUCO
Certification ISO9001/CE/ABS/CCS/BV
Model Number OUCO-TB-1T30M
Product Details
SWL:
1t30m
Max. Working Radius:
30m
Min. Working Radius:
1.7m
Boom Type:
Knuckle
Condition:
New
Warranty:
1 Year
MOQ:
1 Set
Color:
Customer Request
Highlight:

1t Crane Working Radius

,

30m Crane Working Radius

,

Shipyard Mobile Crane Radius

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Shipping Container/Wood Crate/nude
Delivery Time
30 days
Supply Ability
100 sets per year
Product Description

30m Knuckle Boom 1t Wide Shipyard Crane Working Radius





Product Description

OUCO manufactures knuckle boom cranes for use as marine, dock, shipboard, and offshore cranes. Knuckle boom cranes provide the highest levels of flexibility and mobility.

We also manufacture combination knuckle boom telescopic cranes.

A knuckle boom crane appears similar to a standard crane, except that the boom articulates at the 'knuckle' near the middle, letting it fold back like a finger. This provides a compact size for storage and manoeuvring.

Knuckleboom cranes have become very common on offshore vessels as less of the deck space is blocked by the crane. Disadvantages of this crane type are the higher power demand and increased maintenance requirement due to the increased number of moving parts.

Specification

SWL 1t30m&2.5t15m
Max Working radius 30m
Max Working radius 4.2m
Hoisting height 28.5m
Hoisting speed 0~15m/min
Luffing time 120s
Slewing speed 0.5r/min
Slewing angle 360°
Motor 30Kw
Power supply 380V,50Hz, 3ph
Lifting capacity 1t/2.5t
Working duty S1
Protection Class IP56

Advantages:

1) Hydraulic type makes the crane maintain easily;
2) Flexibility by extending booms;
3) Smaller ones take very limited space on the vessel/ship/shipyard;
4) Bigger ones can do heavy duty loads in several working conditions.



The innovative design of the knuckle boom crane allows workers to perform great number of logistic tasks. The function of these heavy duty machines is to load and unload heavy materials from one location to another. Due to its durable construction technologies and precision, knuckle boom crane provides an extra solid hand to any workforce. With its great lifting power, payload space and maneuverability, knuckle boom crane successfully

General Arrangement



30m Knuckle Boom 1t Wide Shipyard Crane Working Radius 0

30m Knuckle Boom 1t Wide Shipyard Crane Working Radius 1






Certification

30m Knuckle Boom 1t Wide Shipyard Crane Working Radius 2

Our Company

With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.

Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.

OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.

We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.





FAQ

1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
