9M Steel Structure Fixed Boom 3T Marine Jib Crane

Basic Information
Place of Origin: Jiangsu, China
Brand Name: OUCO
Certification: ISO9001/CE/ABS/CCS/BV
Model Number: OUCO-TB-3T9M
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Shipping Container/Wood Crate/nude
Delivery Time: 60 days
Supply Ability: 100 sets per year
Color: Customer Request Warranty: 1 Year
Slewing Angle: 360 Degree Free Boom Type: Fixed
Color: Customized Material: Steel Structure
Luffing Angle: 70 Degree Usage: Marine Deck
High Light:

3T Marine Jib Crane

,

9M Marine Jib Crane

,

CCS Hydraulic Marine Cranes

9M Steel Structure Fixed Boom 3T Marine Jib Crane



Product Description



Stiff boom cranes are based on a pedestal slewing design with hydraulic cylinder luffing. The cranes are available in the range from 1t to 200t lifting moment and are supplied according to customer requirements. The stiff boom cranes can be delivered within a broad range of certifications and numerous optional features. Stiff boom cranes are typically used in dock, on fixed installations and in harbour conditions.



SB series crane: End User Advantages

1. Compact design
2. Small footprint
3. Delivered as one complete unit ready for installation to vessels
4. Easy access for periodic maintenance, service and repair
5.24 hours after sales searvices support.



Specification

1 SWL 3T@9M
2 MAX WORKING RADIUS 9m
3 MIN WORKING RADIUS 2m
4 HOISTING SPEED 0~10m/min
5 HOISTING HEIGHT 25m
6 SLEWING SPEED ~0.8r/min
7 SLEWING ANGLE 360°
8 LUFFING TIME ~ 45s
9 EXTENSION TIME ~150s
10 WORKING CONDITION

TRIM ≤2°

HEEL ≤5°

11

ELEC-MOTOR



Y160K-4-H

POWER 15kw

Speed 1460r/min

POWER RESOURCE AC415V/50HZ



12 PROTECT CLASS IP56
13 INSULATE CLASS F
14 WORKING TYPE S1

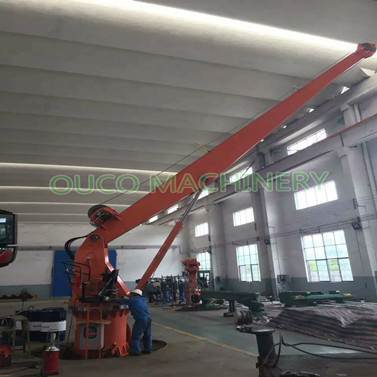

9M Steel Structure Fixed Boom 3T Marine Jib Crane 0

GA drawing

9M Steel Structure Fixed Boom 3T Marine Jib Crane 1



Our Company

With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.

Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.

OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.

We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
