Space Saved 6T Offshore 12m Hydraulic Folding Boom Crane
  • Space Saved 6T Offshore 12m  Hydraulic Folding Boom Crane
  • Space Saved 6T Offshore 12m  Hydraulic Folding Boom Crane

Space Saved 6T Offshore 12m Hydraulic Folding Boom Crane

Place of Origin China
Brand Name OUCO
Certification ABS/BV/CCS
Model Number OUCO-2T6M-KBT-01
Product Details
Material:
Steel
Color:
Custom
Certification:
ABS/BV/CCS
Hydraulic:
Hydraulic System
Size:
Custom
Package:
Nude
Grade:
Marine / Offshore
Quality:
One Year Warranty
Highlight:

6T Folding Boom Crane

,

12m Folding Boom Crane

,

12m Offshore Knuckle Boom Crane

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiation
Packaging Details
Shipping Container/Wood Crate/nude
Delivery Time
20 days
Payment Terms
T/T, Western Union
Supply Ability
300 units per year
Product Description

Space Saved 6T Offshore 12m Hydraulic Folding Boom Crane

Q:1. What's the information should I provide when inquiry?
A: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q:2. How many operating methods for my selection?
A: Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q:3. Can this type work in hazardous environment?
A: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q:4. Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
Q:5. How can we install the crane?
A: Our senior engineer can be your side to do the installation guide service and training.
Q:6. Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.

Technical Specifications:
SWL 6T@12M
MAX WORKING RADIUS 12m
MIN WORKING RADIUS 2.5m
HOISTING SPEED 0~15m/min
HOISTING HEIGHT 25m
SLEWING SPEED ~0.5r/min
SLEWING ANGLE 360°
LUFFING TIME ~ 45s
EXTENSION TIME ~45s
WORKING CONDITION

TRIM ≤2°

HEEL ≤5°

ELEC-MOTOR POWER Y160K-4-H
POWER 11kw
Speed 1475r/min
POWER RESOURCE AC415V/50HZ
PROTECT CLASS IP56
INSUKATE CLASS F
WORKING TYPE S1




Space Saved 6T Offshore 12m  Hydraulic Folding Boom Crane 0

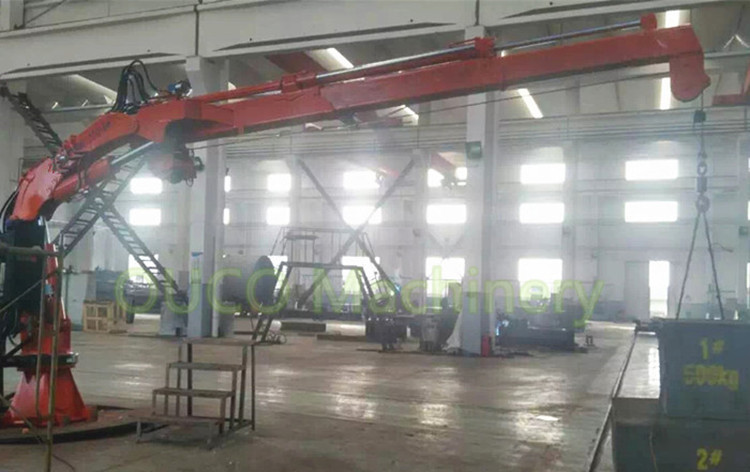

Load test at workshop:
Space Saved 6T Offshore 12m  Hydraulic Folding Boom Crane 1
