Steel 0.99t 10m Boat Deck Crane Hydraulic Knuckle Ship Boom Ccs Approved
  • Steel 0.99t 10m Boat Deck Crane Hydraulic Knuckle Ship Boom Ccs Approved
  • Steel 0.99t 10m Boat Deck Crane Hydraulic Knuckle Ship Boom Ccs Approved
  • Steel 0.99t 10m Boat Deck Crane Hydraulic Knuckle Ship Boom Ccs Approved
  • Steel 0.99t 10m Boat Deck Crane Hydraulic Knuckle Ship Boom Ccs Approved
  • Steel 0.99t 10m Boat Deck Crane Hydraulic Knuckle Ship Boom Ccs Approved

Steel 0.99t 10m Boat Deck Crane Hydraulic Knuckle Ship Boom Ccs Approved

Place of Origin Jiangsu, China
Brand Name OUCO
Certification ABS
Model Number 0.99T10M-KB-MC
Product Details
Product:
Steel 0.99t 10m Boat Deck Crane Hydraulic Knuckle Ship Boom Ccs Approved
Boom Type:
Knuckle Boom
Type:
Marine Crane
Capacity:
0.99 Ton
Working Radius:
10 Meter
Painting:
C5-M
Material:
Steel
Highlight:

0.99t 10m boat deck crane

,

ccs approved boat deck crane

,

hydraulic knuckle boom marine deck crane

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Shipping Container/Wood Crate/nude
Delivery Time
60 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
300 sets per year
Product Description

Steel 0.99t 10m Boat Deck Crane Hydraulic Knuckle Ship Boom Ccs Approved

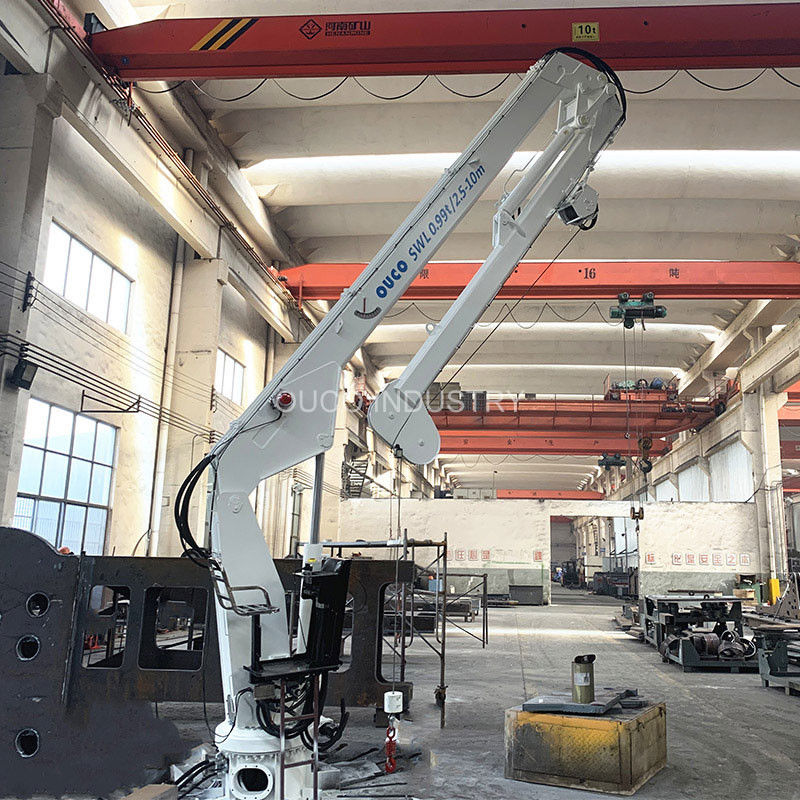

OUCO knuckle boom marine crane appears similar to a standard crane, except that the boom articulates at the 'knuckle'

near the middle, letting it fold back like a finger. This provides a compact size for storage and manoeuvring.

The crane is controlled from an open platform above the slewing ring. One motions each (hoisting ,slewing or luffing) can be done with full load.Each hydraulic circuit is provided with equipment for limiting hydraulic pressure to preset values corresponding with crane capacity. The crane is provided with an automatic hook stop in top position.Over load safety device.Luffing up- down. The luffing cylinder is designed for safe buffering in extreme positions.

Consist of knuckle boom marine cranes : Pedestal,slewing ring, column,operation platform,winch,boom,pulley,wire rope,hook etc.



OUCO Cranes Advantages :

1. 360° continuous rotation.

2. -10 ----+45℃ working temperature.

3. certified high quality steel structure.

4. pedestal ready for mounting or weld to vessel main structure

5. stainless steel grease nipples.

6. precise step less speed control.

7. simultaneous operations of 2 or more function.

8. emergency for hydraulic stop device.

9. visual and audible warning alarm.



Technical specification



SWL 0.99t10m
Max. working radius 10m
Min. working radius 2m
Hoisting speed 0-15m/min
Hoisting height 15m
Slewing speed ~1.2r/min
Slewing angle 360°
Luffing time ~45s
Luffing angle 75°
Working condition trim ≤ 2 °
  heel ≤ 5 °
Design temperature -10° ~ + 40 °
HPU 30KW
Power resource AC380V/50HZ/3P
Dead weight 3500kgs
Oil tank volume 160L
Pressure 28Mpa



Product Display

Steel 0.99t 10m Boat Deck Crane Hydraulic Knuckle Ship Boom Ccs Approved 0Steel 0.99t 10m Boat Deck Crane Hydraulic Knuckle Ship Boom Ccs Approved 1Steel 0.99t 10m Boat Deck Crane Hydraulic Knuckle Ship Boom Ccs Approved 2



Steel 0.99t 10m Boat Deck Crane Hydraulic Knuckle Ship Boom Ccs Approved 3


FAQ

1.Q:What's the information should I provide when inquiry?
A: More details or drawings, better.

a: Lift capacity b: span c: lift height d: power sourceor other specials you give us will be more appreciated.

2.Q: How many operating methods for my selection?

A:Standard operating methodsr:

a: pendent controller with push buttons. b: remote control with push buttons

c: cabin(space capsule seat) control with joystick. Choose any type as you like.

3. Q:Can this type work in hazardous environment?

A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

4. Q:Can you provide the serious lifting tools?

A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!

5. Q:How can we install the crane?

A:Our senior engineer can be your side to do the installation guide service and training.

6. Q:Safety device

A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
