| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | ABS/CCS/ISO9001/BV |
| Model Number: | 1CBM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 30 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500 Sets per year |
| Part: | Grab | Type: | Electro-hydraulic |
|---|---|---|---|
| Usage: | Loading | Capacity: | 1 Cubic |
| Peel: | 5/6 Peels | Material: | Steel |
| Painting: | C5-M | Port: | Shanghai |
| Highlight: | Indoor Use Hydraulic grab bucket,1 cubic grab bucket,Five Peel grab bucket |
||

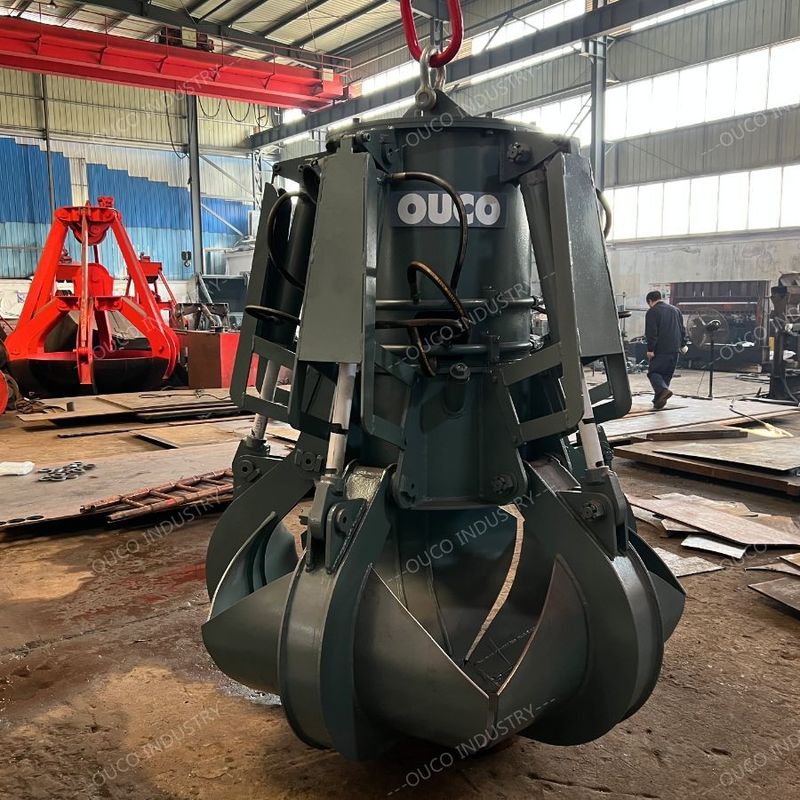

Electro-hydraulic 1 cubic grab bucket for indoor use five peel grab
Product Description
This Electro-hydraulic 1 cubic grab bucket is customized for customers of foreign paper mills. It is used to grab papermaking light slag, plastic, wire rope and other materials. It is also suitable for other materials that have been coarsely crushed and metal removed.
Operating temperature range 5 to 60 °C, suitable for indoor use in factories.
The control method of this equipment requires two methods: local and remote control.
Provide video guidance and remote technical services
Consumable components and spare parts available within two years.
Specifications
| Brand | OUCO |
| Usage | Loading |
| Capacity | 1 CBM |
| Feature | Other |
| Use period | 20 years |
| Equipment weight | 2 tons |
| fully loaded | 12 seconds |
| No-load open time | 6 seconds |
| Bucket | Q355B |
| Cylinder | D80/45X360 |
| Motor | 15KW-4B35 |
| Maximum Grab Weight | 1.5-2T |
| Number of Peels | 5/6 peel |
| Protection class |
IP55 |
Product Picture
Production Process
Customer Bulid
OUCO factory specializes in crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
| Packing | container |
| Delivery | Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months
|
Standard equipment
# 360 C* continuous rotation.
# -10 C*----+45 C* working temperature.
# certified A36 & S690 steel structure.
# pedestal ready for mounting or weld to vessel main structure .
# stainless steel grease nipples.
# precise step less speed control.
# simultaneous operations of 2 or more function.
# emergency for hydraulic stop device.
# visual and audible warning alarm
custom equipment
# lower temperature package up to -40 C*.
# certification for personal lifting.
# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request.
Our factory
For more details, please feel free to contact us.
