| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CCS/BV/ABS/ISO/CE |
| Model Number: | OUCO-12CBM-OGB |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 45 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 sets per year |
| Ptoduct: | High Capacity Electro-hydraulic Cactus Grab For Irregular Bulk Materials | SWL: | 0.5~15 Cubic Meter |
|---|---|---|---|
| Scoop: | Orange Peel | Usage: | Loading And Unloading Grain And Agribulk |
| Material: | Q355 | Warranty: | 1 Year |
| Structure: | Steel | Loading Capacity: | Related To Material Density |
| High Light: | Electro hydraulic Cactus Grab,High Capacity Hydraulic Grab Bucket,Irregular Bulk Materials hydraulic Grab |
||
Product Description

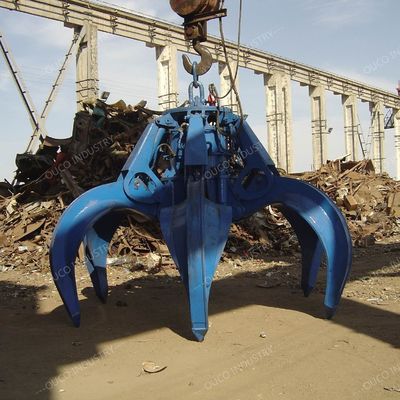

Grab a variety of irregular bulk materials for steel mills, waste disposal sites and scrap recycling plants with the electro-hydraulic cactus grab.
Must be wired for power supply, efficient grip, storage of wires via cable reels
Applicable materials 0.7-2.5 t/m3, can be customized according to your requirements
Connection to the crane hook
Product Features
The oil tank is tightly sealed to protect it from environmental dust.
Solid structure, high-strength steel, wear-resistant manganese steel teeth.
High-quality wear-resistant steel is used to manufacture long-life Hardox 400 or NM450.
The grab volume of the grab bucket is 0.5 to 15 cubic meters.
Compliant with ISO9001/2015.
The grab is flexible, Can be adjusted to fully enclosed and semi-enclosed.
Specification
|
Model |
Power Kw |
Self-weight Kg |
Theoretical total weight Ton |
Volume CBM |
Max. Working pressure Bar |
Close time S |
Number of Peels |
Dimension(mm) | |||
| A | B | C | D | ||||||||
|
OGB18.5 -4000 |
18.5 | 3480 |
6.7 |
4 |
180 |
12 |
6 |
3230 |
2620 |
2690 |
4010 |
|
OGB22.0 -5000 |
22 | 3690 | 7.7 | 5 | 180 | 12 | 6 | 3410 | 2760 | 2840 | 4300 |
|
OGB30.0 -6300 |
30 | 5150 | 10.2 |
6. 3 |
180 | 15 | 7 | 3680 | 2930 | 3010 | 4790 |
|
OGB30.0 -8000 |
30 | 5560 | 12 | 8 | 180 | 15 | 7 | 3790 | 3040 | 3380 | 5030 |
|
OGB37.0 -10000 |
37 | 7170 | 15.2 | 10 | 200 | 17 | 7 | 4150 | 3390 | 3820 | 5210 |
|
OGB37.0 -12000 |
37 | 7490 | 17.1 | 12 | 200 | 17 | 7 | 4320 | 3540 | 3960 | 5360 |
GA Drawing
Detail Picture
Customer Bulid
OUCO factory specializes in crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
| Brand | OUCO |
| Spare parts | 1 set (If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year (If needed, warranty time is available to be extended according to customers' requirements ) |
| Packing | container |
| Delivery | Standard product: 1month Customized product: 2 months Certified products: 3-4 months |
Our services
Pre-Sales Service
1. Inquiry and consulting support.
2. View our Factory.
3. Check the load test before shipment.
After-Sales Service
1. Engineers available to serve machinery overseas.
2. Instruct your workers how to install and use the machine.
3. 24 months free maintenance.
Our Factory
For more details, please feel free to contact us.
