| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | ABS,CCS,CE, ISO |
| Model Number: | 2T15M-SB-MC |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per year |
| Material: | Steel | SWL: | 2T15M |
|---|---|---|---|
| Type: | Fixed Boom Marine Crane | Application: | Vessel |
| Luffing: | Electro-hydraulic Cylinder | Hoisting: | Wire Rope |
| High Light: | Durable Stiff Boom Electric Marine Crane,15m Electric Marine Crane,Hydraulic 2t Stiff Boom Marine Crane |
||

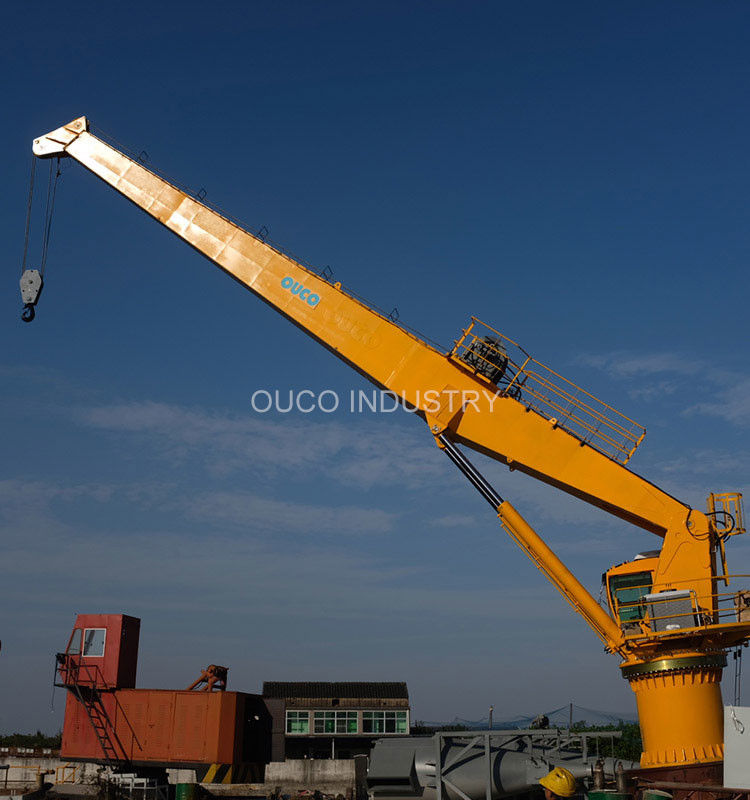

The crane is installed with a rolled steel pedestal for bolting or welding to deck with a height of OUCO standard and pedestal diameter is depend on the SWL of the crane. The standard SB crane will supply with an operator platform. Operator cabin is optional. The crane and all it associated components/ equipment shall be designed in accordance to any leading classification societies which is upon request. The crane will be tested and adjusted ready for installation by welding or bolting to vessel deck. Power connection would be provided for electrical supply through integrated electrical slip rings.Cranes can be customized to customers' needs.
Product Advantages
1.Safety and reliability.
2.Rates of speed can be changed.
3.360 degrees continually rotary.
4.Both electro hydraulic and manual to control.
5.Operate conveniently.
6.Cheaper price.
GA Drawing
