Telescopic Boom Hydraulic Marine Cranes Shipboard Offshore 5T 15M 10m / Min
  • Telescopic Boom Hydraulic Marine Cranes Shipboard Offshore 5T 15M 10m / Min
  • Telescopic Boom Hydraulic Marine Cranes Shipboard Offshore 5T 15M 10m / Min
  • Telescopic Boom Hydraulic Marine Cranes Shipboard Offshore 5T 15M 10m / Min
  • Telescopic Boom Hydraulic Marine Cranes Shipboard Offshore 5T 15M 10m / Min

Telescopic Boom Hydraulic Marine Cranes Shipboard Offshore 5T 15M 10m / Min

Place of Origin Jiangsu, China
Brand Name OUCO
Certification CE, ISO
Model Number OUCO-5T15M-TB
Product Details
Product Name:
5T@15M Telescopic Boom Hydraulic Marine Cranes Shipboard Offshore Crane
Type:
Telescopic Boom
Condition:
New
After-sales Service:
Online Support, Video Technical Support, Free Spare Parts
Usage:
Cargo Lifting
Warranty:
1 Year
Material:
Steel
Highlight:

Telescopic Boom Hydraulic Marine Cranes

,

10m/min Hydraulic Marine Cranes

,

15M Hydraulic Marine Cranes

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Shipping Container/Wood Crate/nude
Delivery Time
60 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
300 sets per year
Product Description

5T@15M telescopic boom hydraulic marine cranes shipboard offshore crane

OUCO has a wide range of telescopic boom cranes: all models can be heavily customized according to the customers’ special application.All cranes have been designed and built from the ground up for marine use and are successfully used in the most critical application demonstrating reliability.Low and easy maintenance, reduced spare parts consumption, smaller crane down time and significantly longer time make OUCO the best value money can buy.The marine environment demands equipment of the highest level of quality to ensure reliable and safe operations: OUCO cranes are able to satisfy these requirements. OUCO shipboard cranes ensure safe, accurate lifts on board ships and offshore installations, and port-based cargo handling operations.Cranes can be customised and delivered to meet customer-specific safe working load requirements, with various slew bearing dimensions and pedestal heights. These cranes accommodate operational needs and industry regulations.Specially-designed offshore cranes can be delivered with an operator cabin and various functions integrated within the control system, such as active heave-compensation and auto-tensioning.



Product Parameters

SWL 0T
MAX WORKING RADIUS 15m
MIN WORKING RADIUS 1.5m
HOISTING SPEED ~10m/min(main hook)   ~30m/min (aux hook)
HOISTING HEIGHT 30m
SLEWING SPEED 0~0.5r/min
SLEWING ANGLE 360°
LUFFING TIME ~ 120s
WORKING CONDITION TRIM ≤2°HEEL ≤5°
ADVISED OIL FLOW 92L/min
MOTOR POWER 15kw
DEAD WRIGHT 2200KG
POWER RESOURCE 380v,50Hz,3P
PROTECT CLASS IP56
INSUKATE CLASS F
WORKING TYPE S1




GA Drawing

Telescopic Boom Hydraulic Marine Cranes Shipboard Offshore 5T 15M 10m / Min 0

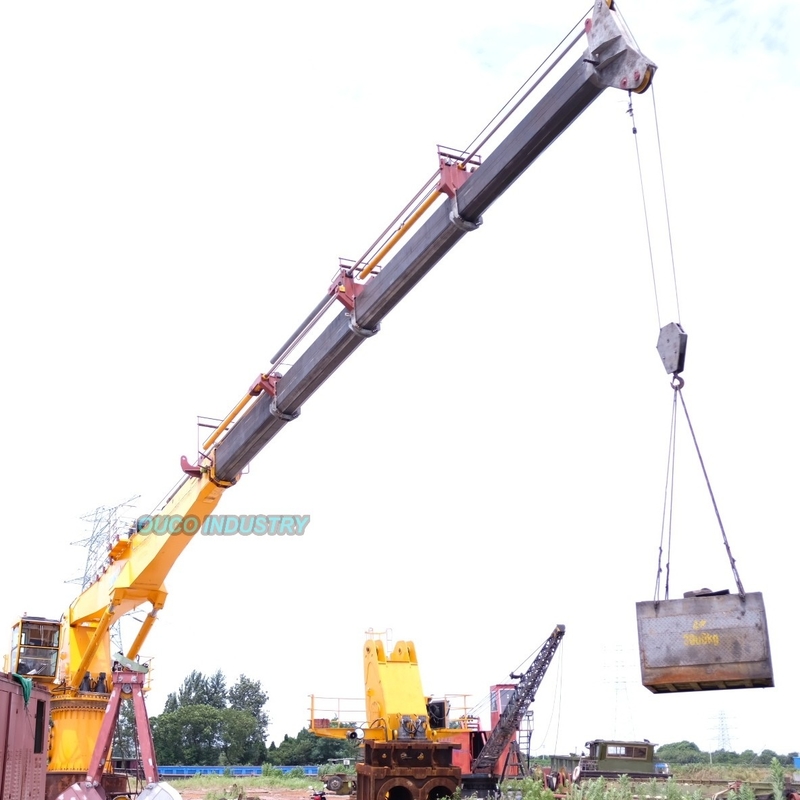

Product photo

Telescopic Boom Hydraulic Marine Cranes Shipboard Offshore 5T 15M 10m / Min 1

Packaking

Telescopic Boom Hydraulic Marine Cranes Shipboard Offshore 5T 15M 10m / Min 2



Why Choose OUCO Marine Crane?

  1. OUCO uses special marine-grade steel plates, DH36 for better corrosion resistance and EH36 for -40°C conditions.
  2. The more symmetrical center design of the octagonal boom makes it have a bigger anti-bending capacity.
  3. OUCO Marine Crane can be telescoped and folded with a load.
  4. OUCO has simulated marine working conditions, with a Trim≤2° and Heel≤5°.
  5. OUCO uses fan coolers to ensure long-lasting operation of the crane at high temperatures.
  6. OUCO uses holding valves to ensure crane safety in case of hydraulic system failure.
  7. OUCO uses stainless steel grease nipples to avoid rusting under marine conditions.
  8. The anti-two block system, composed of a top limit and bottom limit, ensures the winch's safety.
  9. OUCO uses a precise step-less speed control valve.
  10. Emergency stop devices are installed on each crane.
  11. OUCO follows the C5M marine painting rules and uses world-famous paint brands.

                         Welcome to visit our factory!

Telescopic Boom Hydraulic Marine Cranes Shipboard Offshore 5T 15M 10m / Min 3
