3-40 Ton Harbour Gantry Crane, Lattic Boom Port Crane

Basic Information
Place of Origin: Jiangsu, China
Brand Name: OUCO
Certification: ISO,CE, CCS, ABS, BV, RMRS
Model Number: OUCO-40 Ton-Cargo Crane
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Transportation of the whole machine
Delivery Time: 60-90 Days
Payment Terms: T/T, Western Union, T/T
Supply Ability: 50 Set/year
Product: 3-40 Ton Harbour Gantry Crane, Lattic Boom Port Crane SWL: 40 Ton
Model: Port Gantry Crane Application: Offshore Support Vessels, Pipelay Vessel, Offshore Oil Rig
Material: ABS/CCS/RMRS Certified Steel Packaging: Transportation Of The Whole Machine
Port: Shanghai Delivery: 60 Days

OUCO 4T12M Small Telescopic Boom Provision Crane

Product Description:

OUCO Port Gantry Crane is ideal for efficient loading and unloading of goods and containers in ports and open storage yards. These cranes, equipped with grabs, hooks, and spreaders, boast a lifting capacity of up to 40 tons, maintaining consistent capacity regardless of amplitude. The high working speed ensures exceptional productivity.

Our gantry cranes for shipbuilding are tailored for ship platforms, shipyards, and on-site operations. They excel in tasks like hull splicing and equipment mooring, utilizing hooks for lifting objects. With a maximum lifting capacity of 300 tons, these cranes offer variable lifting speeds, allowing for increased speed when handling lighter loads. Micro-actuators can be incorporated into the working mechanism to meet specific installation requirements.

For operations requiring larger lifting heights and extensive reach, our gantry cranes with higher height are designed to adapt. Although they have a slower working speed, they are suitable for large-scale operations.

The low-frame gantry crane, developed from the dolly crane, features a unique structure. The dolly is a box-shaped structure, the gantry combines a box-shaped bench structure with a cylinder structure, and the turntable is an integral box structure. The jib adopts a truss-type single jib structure, and the luffing mechanism uses a pulley group wire rope compensation. The rotary support device utilizes a standard large diameter slewing bearing, while the luffing balance system adopts a lever-live pair heavy-duty type.

Key Features:
1. Practicality with the ability to use grabbing buckets and hooks simultaneously.
2. Precision in horizontal amplitude change through rack and pinion technology.
3. 360° rotation of the working device for a wide operational range.
4. Stable and reliable operation with PLC control and AC frequency conversion speed regulation.
5. Optional remote monitoring system based on user requirements.
6. Complete safety protection devices and a communication lighting system ensure a secure working environment.

Key Technical Specifications:

Lifting Capacity (t) 3.2 5 10 16 20 30 40
Lifting Height (m) -6~12 -6~11 -8~10 -6~11 -5~13 -4~14
Lifting Speed (m/min) 36 32 36 31 33.6
Luffing Speed (m/min) 15 10 16.5 15 10 12
Slewing Speed (m/min) 1.4 1.46 1.2
Boom Length (m) 12 14 16
Grab Capacity (m³) 1 1.5 2 3
Power Supply Voltage 380V

Product Picture

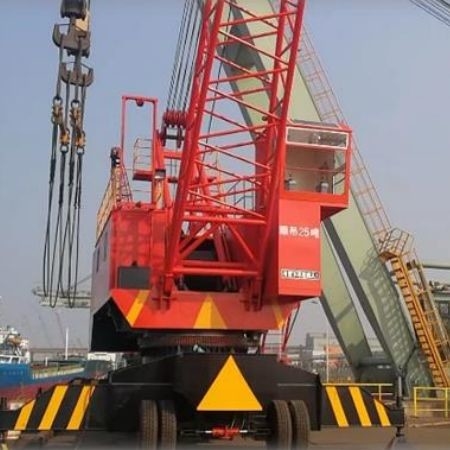

3-40 Ton Harbour Gantry Crane, Lattic Boom Port Crane 0

3-40 Ton Harbour Gantry Crane, Lattic Boom Port Crane 1

3-40 Ton Harbour Gantry Crane, Lattic Boom Port Crane 2

Production Process

1.5t 36.6m Offshore Pedestal Crane Telescopic Boom Hydraulic Pedestal Mounted 6Stiff Boom Yacht Marine 1.5t 4m Offshore Pedestal Crane With Iacs Certified 5

Company Profile

The OUCO Group provides high quality handling solutions and access systems for the marine and offshore industries.
Headquartered in beautiful Wuxi, Jiangsu, China, OUCO Group has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and the Middle East.
With years of experience, the OUCO Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience in offshore business, which also provides after-sales services overseas.

3-40 Ton Harbour Gantry Crane, Lattic Boom Port Crane 5

Our Team

OUCO has specialized design team, production and processing team, welding team, painting team, installation team, transportation team and sales team. The company has more than 150 employees, 20 technicians, including 5 with senior titles, 10 with intermediate titles, 50 welders certified by major institutions such as CCS and ABS. And many flaw detectors, quality system auditors and inspectors certified by professional institutions.

3-40 Ton Harbour Gantry Crane, Lattic Boom Port Crane 6

Customer Build
OUCO Group has been specializing in the field of cranes for more than 10 years. OUCO can design and manufacture any type of cranes, grabs and other handling equipment according to your requirements.

To better protect the safety of our customers' goods, we provide professional, environmentally friendly, convenient and efficient packaging services. Our comprehensive service system results in a high level of customer satisfaction.

Brand OUCO
Spare parts 1 set ( If needed, more spare parts are available to be provided according to customers' requirements )
Warranty 1 year( If needed, warranty time is available to be extended according to customers' requirements )
Packing container
Delivery Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months

3-40 Ton Harbour Gantry Crane, Lattic Boom Port Crane 7

The Equipment

Our factory has state-of-the-art production and testing equipment, such as CNC milling machine, gantry crane, large-scale machining center, modular machine tools, cold shears, etc. We can produce all kinds of customized equipment according to your needs and ensure high-precision machining.

3-40 Ton Harbour Gantry Crane, Lattic Boom Port Crane 8

Our Services

Pre-Sales Service

1. Inquiry and consulting support.

2. View our Factory.

3. Check the load test before shipment.


After-Sales Service

1. Engineers are available to serve machinery overseas.

2. Instruct your workers how to install and use the machine.

3. 24 months of free maintenance.

3-40 Ton Harbour Gantry Crane, Lattic Boom Port Crane 9


We regularly participate in prestigious maritime trade shows around the world. Our engineers are professional and own high-level English skills, rich engineering knowledge and working experience.

At previous exhibitions, we have established strong long-term cooperation with many customers!

3-40 Ton Harbour Gantry Crane, Lattic Boom Port Crane 10

Factory Certificate

OUCO factory is certified by SGS, 1S09001, CE, BV, CCS, and other authoritative institutions.

3-40 Ton Harbour Gantry Crane, Lattic Boom Port Crane 11

Products Certificate

3-40 Ton Harbour Gantry Crane, Lattic Boom Port Crane 12


For more details, please feel free to contact us.Welcome to visit our factory!
