4T 20M Telescopic Boom Offshore Lift Crane Pedestal Mounted

Place of Origin Jiangsu, China
Brand Name OUCO
Certification ISO,CE, BV, API-2C
Model Number OUCO-4T20M-TB
Product Details
Product:
4T20M Telescope Boom Offshore Lift Crane, Pedestal Mounted
SWL:
4T20M
Model:
Telescope Boom Crane
Application:
Offshore Platforms, Cargo Vessels, Oil Rigs, And Engineering Ships
Material:
ABS/CCS/RMRS Certified Steel
Packaging:
Shipping
Port:
Shanghai
Delivery:
60 Days
Highlight:

20M Offshore Lift Crane

,

Pedestal Mounted Offshore Lift Crane

,

4T Offshore Lift Crane

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Shipping Container/Wood Crate/nude
Delivery Time
30 Days
Payment Terms
T/T, Western Union, T/T
Supply Ability
USD 50000-100000 /Set
Product Description

4T20M Telescope Boom Offshore Lift Crane, Pedestal Mounted


Product Description:

The OUCO-4T20M-TB Offshore Pedestal Crane is a robust and versatile lifting solution, engineered to withstand the rigors of harsh marine environments. With a high lifting capacity of 24 tons at a 5-meter radius and 4 tons at a 20-meter radius, this crane offers exceptional flexibility for a wide range of offshore tasks. It is your powerful solution for Demanding Offshore Operations.

Key Features:

  • Pedestal Mounted Design: Optimized for specific operational needs.
  • API-2C Standard: Adherence to industry-leading safety and performance standards.
  • Fire and Explosion-Proof: Enhanced safety in hazardous environments.
  • BV Certified: Assured quality and reliability.
  • Telescopic Boom: Provides both compact storage and extended reach.
  • Hydraulic System and Remote Control: Safe and efficient operation.

The OUCO-4T20M-TB is the ideal choice for offshore operations that require a powerful, reliable, and versatile crane. for various marine tasks


Parameters

Technical Parameters Value
Safe Working Load (SWL) see load chart
Max Working Radius 20M
Min Working Radius 3M
Hoisting Speed ~12m/min
Hoisting Travel 30m
Slewing Speed 0.6r/min
Slewing Angle 360°
Luffing Time ~60S
Booms Extension Time ~120S
Working Condition (Trim) ≤4°
Working Condition (Heel) ≤8°
Max Wind Speed (Working condition) 20m/s
Max Wind Speed (Parking condition) 55m/s
Electric Motor Power (Model: Y280S-4-H)
Power 75kW
Speed 1485r/min
Power Resource AC380V / 50Hz / 3P
Protection Class IP56
Insulate Class F
Working Type S1
Ambient Temperature -10°C ~ +40°C
Model Marine crane

GA Drawing

4T 20M Telescopic Boom Offshore Lift Crane Pedestal Mounted 0

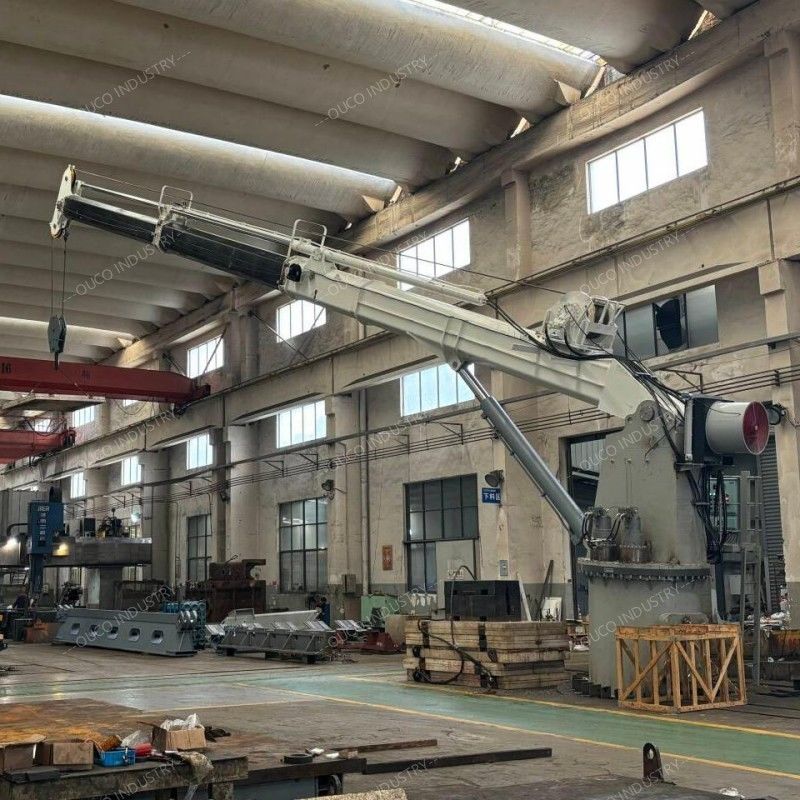

Product Picture

4T 20M Telescopic Boom Offshore Lift Crane Pedestal Mounted 1

4T 20M Telescopic Boom Offshore Lift Crane Pedestal Mounted 2

4T 20M Telescopic Boom Offshore Lift Crane Pedestal Mounted 3

4T 20M Telescopic Boom Offshore Lift Crane Pedestal Mounted 4

4T 20M Telescopic Boom Offshore Lift Crane Pedestal Mounted 5

Production Process

1.5t 36.6m Offshore Pedestal Crane Telescopic Boom Hydraulic Pedestal Mounted 6Stiff Boom Yacht Marine 1.5t 4m Offshore Pedestal Crane With Iacs Certified 5

Company Profile

The OUCO Group provides high quality handling solutions and access systems for the marine and offshore industries.
Headquartered in beautiful Wuxi, Jiangsu, China, OUCO Group has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and the Middle East.
With years of experience, the OUCO Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience in offshore business, which also provides after-sales services overseas.

4T 20M Telescopic Boom Offshore Lift Crane Pedestal Mounted 8

Our Team

OUCO has specialized design team, production and processing team, welding team, painting team, installation team, transportation team and sales team. The company has more than 150 employees, 20 technicians, including 5 with senior titles, 10 with intermediate titles, 50 welders certified by major institutions such as CCS and ABS. And many flaw detectors, quality system auditors and inspectors certified by professional institutions.

4T 20M Telescopic Boom Offshore Lift Crane Pedestal Mounted 9

Customer Build
OUCO Group has been specializing in the field of cranes for more than 10 years. OUCO can design and manufacture any type of cranes, grabs and other handling equipment according to your requirements.

To better protect the safety of our customers' goods, we provide professional, environmentally friendly, convenient and efficient packaging services. Our comprehensive service system results in a high level of customer satisfaction.

Brand OUCO
Spare parts 1 set ( If needed, more spare parts are available to be provided according to customers' requirements )
Warranty 1 year( If needed, warranty time is available to be extended according to customers' requirements )
Packing container
Delivery Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months

4T 20M Telescopic Boom Offshore Lift Crane Pedestal Mounted 10

The Equipment

Our factory has state-of-the-art production and testing equipment, such as CNC milling machine, gantry crane, large-scale machining center, modular machine tools, cold shears, etc. We can produce all kinds of customized equipment according to your needs and ensure high-precision machining.

4T 20M Telescopic Boom Offshore Lift Crane Pedestal Mounted 11

Our Services

Pre-Sales Service

1. Inquiry and consulting support.

2. View our Factory.

3. Check the load test before shipment.



After-Sales Service

1. Engineers are available to serve machinery overseas.

2. Instruct your workers how to install and use the machine.

3. 24 months of free maintenance.

4T 20M Telescopic Boom Offshore Lift Crane Pedestal Mounted 12

Exhibitions

We regularly participate in prestigious maritime trade shows around the world. Our engineers are professional and own high-level English skills, rich engineering knowledge and working experience.

At previous exhibitions, we have established strong long-term cooperation with many customers!

4T 20M Telescopic Boom Offshore Lift Crane Pedestal Mounted 13

Factory Certificate

OUCO factory is certified by SGS, 1S09001, CE, BV, CCS, and other authoritative institutions.

4T 20M Telescopic Boom Offshore Lift Crane Pedestal Mounted 14

Products Certificate

4T 20M Telescopic Boom Offshore Lift Crane Pedestal Mounted 15
