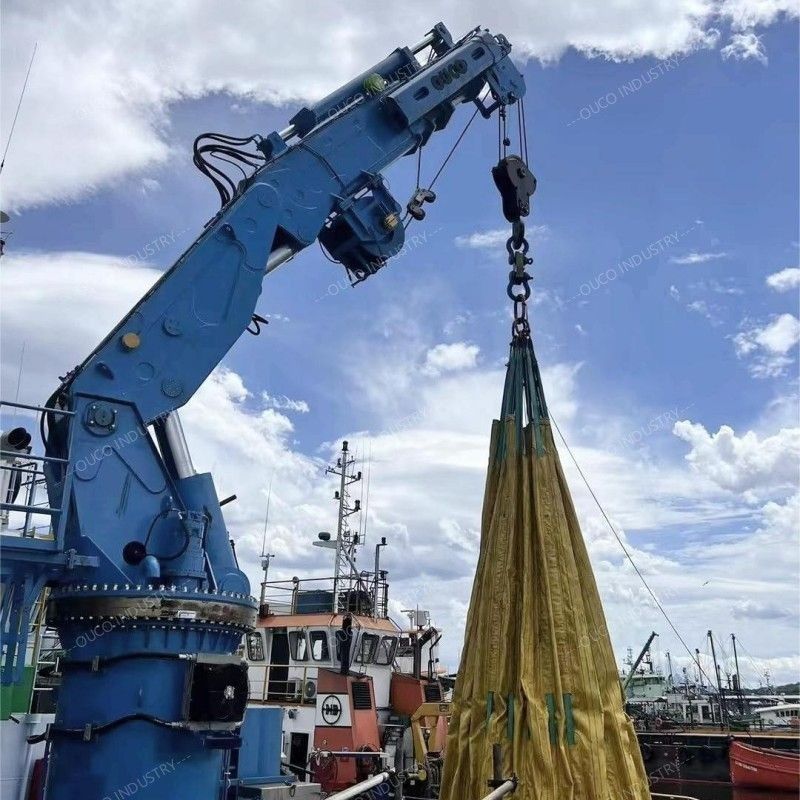

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane
  • OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane
  • OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane
  • OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane
  • OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane
  • OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane
  • OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane

Place of Origin Jiangsu, China
Brand Name OUCO
Certification ISO,CE, BV, API-2C
Model Number OUCO-9T16.31M-KTB Crane
Product Details
Product:
OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane
SWL:
4.6T6.6M&0.9T21.6M
Model:
KTB
Application:
Offshore Oil Platforms, Cargo Vessels, Oil Rigs, And Engineering Ships
Material:
ABS/CCS/RMRS Certified Steel
Packaging:
Shipping
Port:
Shanghai
Delivery:
60 Days
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Shipping Container/Wood Crate/nude
Delivery Time
30 Days
Payment Terms
T/T, Western Union, T/T
Supply Ability
USD 50000-100000 /Set
Product Description

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane


Product Description:

The OUCO 9T16.31M Knuckle Telescope Boom Offshore Crane is a high-performance lifting solution tailored for the demanding operational needs of the offshore and marine industries. Engineered with precision and versatility in mind, this crane combines advanced technology with a compact design, ensuring it meets the requirements of modern vessels while delivering optimal performance in diverse maritime environments.

Lifting Capacity from 22.5T to 7.76M at 9T and 16.31M, suitable for heavy-duty lifting tasks within a close radius.: Designed for extended reach tasks, offering flexibility for lighter loads.
The crane operates within a range of 3M to 16.31M, providing a versatile lifting envelope for various tasks.
Equipped with a knuckle telescopic boom, the crane excels in confined spaces and easily enables intricate load handling.
Capable of lifting with precision thanks to a high-performance hoisting mechanism, with significant vertical height and reliable load control.
Full 360° continuous rotation enables smooth and uninterrupted operations, allowing the crane to handle loads across a wide area without repositioning the base.

Applications:
This crane is perfectly suited for a wide range of offshore and marine operations, including:
Cargo Transfer: Efficiently handles heavy-duty cargo transfers between ships or between vessels and the shore.
Offshore Installation Support: Ideal for lifting and positioning equipment or components for offshore platform installations.
Vessel Maintenance Tasks: Provides safe and precise lifting for routine maintenance activities or repair work on vessels and platforms.
Subsea Deployment: Can lower and retrieve equipment or materials for underwater tasks, such as inspections or repairs.
Emergency Operations: Effective for deploying and recovering rescue boats or safety equipment during critical operations.
Technical Specifications:

Advantages:

  1. Exceptional Versatility: Dual lifting capacities and a wide working radius make this crane suitable for a variety of offshore tasks, from heavy cargo handling to precision lifting in extended-reach scenarios.
  2. Compact and Efficient Design: The knuckle telescopic boom minimizes storage space requirements and enhances maneuverability, even in tight quarters aboard modern vessels.
  3. Robust and Reliable Construction: Designed for the harsh conditions of marine environments, with CX painting standard, the crane's high-quality materials and components ensure long-term durability and reliability.
  4. Enhanced Safety Standards: Tested and certified by ABS and CE Surveyors to meet rigorous safety and quality benchmarks, the crane guarantees secure lifting operations in compliance with international standards.
  5. Ease of Operation: Intuitive control systems and smooth motion features allow operators to handle loads efficiently and with confidence.

Parameters

TECHNICAL PARAMETERS
1 SWL See Load Chart
2 MAX. WORKING RADIUS 16.31M
3 MIN. WORKING RADIUS 3M
4 HOISTING SPEED 0-12m/min

5 HOISTING Height 40m
6 SLEWING SPEED 0.6r/min
7 SLEWING ANGLE 360°
8 FIRST LUFFING TIME ~120S
9 WORKING CONDITION
  TRIM ≤2°
  HEEL ≤7°
10 Electric Motor Power Y135S-4-H
  Power 110kw
  Speed 1480r/min
  POWER RESOURCE AC440V/60HZ/3P
  PROTECT CLASS IP56
11 OIL FLOW 170L/min
12 INSULATE CLASS F
13 WORKING TYPE S1
14 Ambient Temperature -10° ~+45°
15 Model Marine Crane

GA Drawing

The crane ensures safe operations through its well-defined load chart, balancing lifting height and working distance for maximum efficiency and safety.

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane 0



Product Picture

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane 1

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane 2

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane 3

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane 4

Production Process

1.5t 36.6m Offshore Pedestal Crane Telescopic Boom Hydraulic Pedestal Mounted 6Stiff Boom Yacht Marine 1.5t 4m Offshore Pedestal Crane With Iacs Certified 5

Company Profile

OUCO is a globally recognized leader in the design and manufacturing of customized cranes and material handling solutions. With extensive experience in the offshore and marine sectors, the company provides tailored lifting equipment that aligns with specific operational needs. Each product is meticulously crafted to deliver performance, reliability, and safety, ensuring maximum value for customers in demanding industries.

For further inquiries or to explore custom configurations of the 9T16.31M Knuckle Telescope Boom Offshore Crane, contact OUCO’s expert team today.

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane 7

Our Team

OUCO has specialized design team, production and processing team, welding team, painting team, installation team, transportation team and sales team. The company has more than 150 employees, 20 technicians, including 5 with senior titles, 10 with intermediate titles, 50 welders certified by major institutions such as CCS and ABS. And many flaw detectors, quality system auditors and inspectors certified by professional institutions.

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane 8

Customer Build
OUCO Group has been specializing in the field of cranes for more than 10 years. OUCO can design and manufacture any type of cranes, grabs and other handling equipment according to your requirements.

To better protect the safety of our customers' goods, we provide professional, environmentally friendly, convenient and efficient packaging services. Our comprehensive service system results in a high level of customer satisfaction.

Brand OUCO
Spare parts 1 set ( If needed, more spare parts are available to be provided according to customers' requirements )
Warranty 1 year( If needed, warranty time is available to be extended according to customers' requirements )
Packing container
Delivery Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane 9

The Equipment

Our factory has state-of-the-art production and testing equipment, such as CNC milling machine, gantry crane, large-scale machining center, modular machine tools, cold shears, etc. We can produce all kinds of customized equipment according to your needs and ensure high-precision machining.

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane 10

Our Services

Pre-Sales Service

1. Inquiry and consulting support.

2. View our Factory.

3. Check the load test before shipment.



After-Sales Service

1. Engineers are available to serve machinery overseas.

2. Instruct your workers how to install and use the machine.

3. 24 months of free maintenance.

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane 11

Exhibitions

We regularly participate in prestigious maritime trade shows around the world. Our engineers are professional and own high-level English skills, rich engineering knowledge and working experience.

At previous exhibitions, we have established strong long-term cooperation with many customers!

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane 12

Factory Certificate

OUCO factory is certified by SGS, 1S09001, CE, BV, CCS, and other authoritative institutions.

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane 13

Products Certificate

OUCO 9T16.31M Knuckle Telescope Boom Pedestal Crane 14



For more details, please feel free to contact us.Welcome to visit our factory!
