2.5T14M Offshore Drilling Rig Crane
The OUCO 2.5T14M Offshore Drilling Rig Crane is specifically designed for use on offshore oil drilling platforms. Built to meet the demanding requirements of offshore drilling operations, this crane offers exceptional lifting performance and reliability, even in challenging sea state 2 conditions. It serves as a versatile and essential tool for lifting and handling heavy equipment, drill bits, and materials, ensuring both precision and safety during operations.
Key Features and Advantages:
One of the key features of the crane is its ability to maximize available deck space on offshore platforms. Its compact design allows it to operate efficiently while occupying minimal space, making it an ideal choice for crowded or space-constrained drilling rigs. This ensures that operators can maximize the use of valuable deck area without compromising the crane’s performance.
The crane is equipped with advanced hydraulic and mechanical systems, which contribute to its smooth operation even under challenging conditions. Its electric control box, rated with an IP56 protection class, ensures durability and high performance. The crane’s 360° full rotation capability provides versatility in movement, allowing it to reach all necessary lifting points without limitations. This ensures reliable performance in moderate waves and various offshore weather conditions, enhancing the crane's efficiency and dependability.
The OUCO 2.5T14M Offshore Drilling Rig Crane is designed for precise lifting operations. With a maximum working radius of 14 meters and a hoisting speed of up to 12 meters per minute, it offers precise control when lifting heavy materials and equipment. Additionally, the crane includes a hook travel distance of 20 meters, accommodating a wide range of lifting tasks and ensuring flexibility in operations.
This crane is also built for wide environmental compatibility. It operates efficiently in a broad temperature range, from -20°C to +50°C, ensuring reliable performance in both cold and hot offshore environments. Whether the platform is located in a colder or hotter region, the crane remains highly functional and dependable.
OUCO offers comprehensive guidance for crane installation, ensuring that the solution is tailored to meet the specific requirements of each platform. The crane is designed for easy integration into the drilling platform, minimizing setup time and ensuring a smooth installation process. This ensures the crane can be quickly deployed for efficient use on offshore platforms.
Parameters
| Technical Parameters |
Details |
| 1. Safe Working Load (SWL) |
see load chart |
| 2. Max. Working Radius (MAX. WORKING RADIUS) |
12.5M |
| 3. Min. Working Radius (MIN. WORKING RADIUS) |
1.5M |
| 4. Hoisting Speed (HOISTING SPEED) - Winch (WINCH) |
0～12m/min |
| 5. Hook Travel (HOOK TRAVEL) |
20m |
| 6. Slewing Speed (SLEWING SPEED) |
1r/min |
| 7. Slewing Angle (SLEWING ANGLE) |
360° |
| 8. First Luffing Time (FIRST LUFFING TIME) |
～50S |
| 9. Booms Extension Time (BOOMS EXTENSION TIME) |
～80S |
| 10. Working Condition (WORKING CONDITION) |
2 Grade (Hsig=0.5m) |
| - Trim (TRIM) |
≤2° |
| - Heel (HEEL) |
≤5° |
| 11. Max. Wind Speed (MAX. WIND SPEED) |
|
| - Working condition |
20m/s |
| - Parking condition |
55m/s |
| 12. Elec - Motor Power (ELEC - MOTOR POWER) |
|
| - Model |
Y180L - 4 - H |
| - Power (POWER) |
22kW |
| - Speed (SPEED) |
1470r/min |
| - Power Resource (POWER RESOURCE) |
AC380V/50HZ/3P |
| - Protect Class (PROTECT CLASS) |
IP56 |
| - Insukate Class (INSUKATE CLASS) |
F |
| - Working Type (WORKING TYPE) |
S1 |
| 13. Ambient Temperature (Ambient temperature) |
-20° ～+50° |
| 14. Model (Model) |
Offshore crane |
| 15. Protection Class of Electric Control Box |
IP56 |
| 16. Control Voltage of Electric Control Box |
220V/50HZ |
General Arrangement Drawing

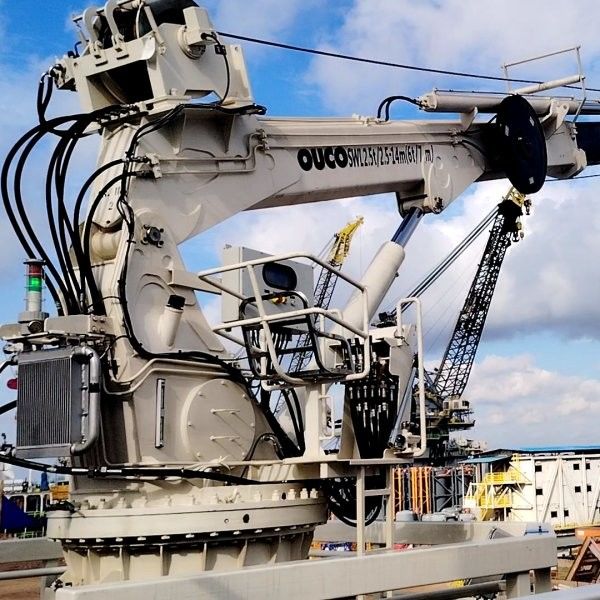

Product Picture
Production Process
About OUCO Company
Founded in 1984, OUCO INDUSTRY is a leading manufacturer of high-quality marine equipment, specializing in cranes, lifting systems, and material handling solutions. With over 40 years of experience, we are recognized for delivering innovative and reliable products tailored to the maritime industry. Our products are trusted by clients globally, including those in the luxury yacht, offshore, port, and industrial sectors.
Our state-of-the-art facility in Jiangsu Province, China, spans 48,000 square meters and is home to over 150 skilled professionals. We are dedicated to ensuring that every product we deliver meets the highest standards of quality, performance, and safety.
Our Team
Customer Build
OUCO Group has been specializing in the field of cranes for more than 10 years. OUCO can design and manufacture any type of cranes, grabs and other handling equipment according to your requirements.
To better protect the safety of our customers' goods, we provide professional, environmentally friendly, convenient and efficient packaging services. Our comprehensive service system results in a high level of customer satisfaction.
| Brand |
OUCO |
| Spare parts |
1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty |
1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
| Packing |
container |
| Delivery |
Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months |
