| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | ISO9001/CE/ABS/CCS/BV |
| Model Number: | OUCO-TB-3T30M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 90 days |
| Supply Ability: | 100 sets per year |
| SWL: | 3t30m | Material: | Steel Structure |
|---|---|---|---|
| Warranty: | 1 Year | Type: | Telescopic Boom |
| Working Condition: | Marine | Color: | Customer Requirement |
| Max. Working Radius: | 30m | Min. Working Radius: | 2m |
| High Light: | 3t Telescopic Boom Crane,30m Telescopic Boom Crane,30m Straight Boom Crane |
||

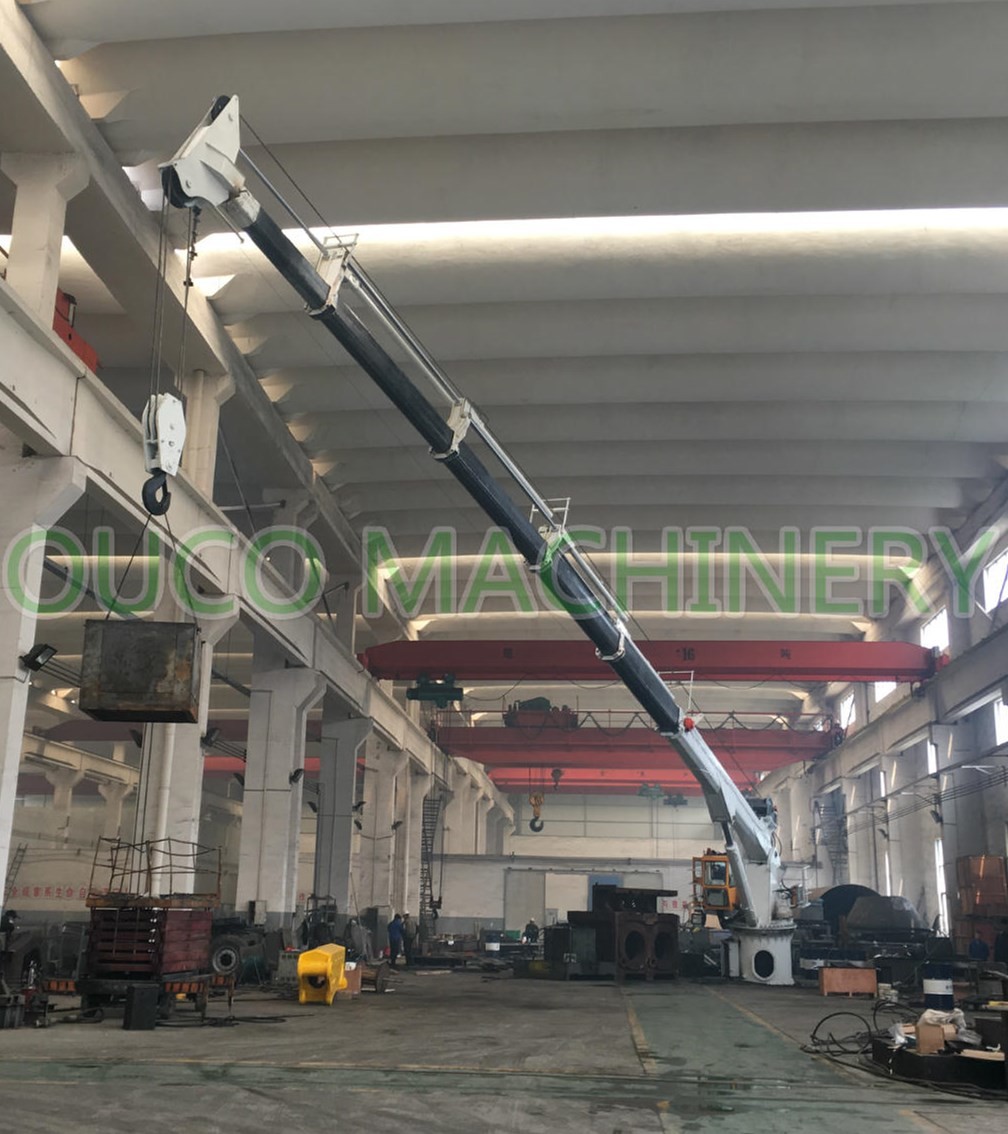

Marine Hydraulic 3t 30m White Telescopic Boom Crane
Product Description
The telescopic series of cranes offer a diverse product line for application in the Luxury Yacht, Oceanographic, Workboat, Oilfield, Coast Guard or Military industries. These cranes can also be further customized for use in these most demanding of work environments.
The 3T30M Telescopic boom crane is the first marine crane OUCO has shipped to South America. This crane is available from 3–30 meters of crane boom, which have long range of usage.
Service system: Engineers available to service machinery overseas
Warranty period: 1 year
Certificate:ABS/CCS/ISO9001/BV
Specification
| SWL | 3T@30M&30T6M |
| MAX WORKING RADIUS | 30m |
| MIN WORKING RADIUS | 3m |
| HOISTING SPEED | 0~15m/min |
| HOISTING HEIGHT | 35m |
| SLEWING SPEED | ~0.6r/min |
| SLEWING ANGLE | 360° |
| LUFFING TIME | ~ 90s |
| WORKING CONDITION |
TRIM ≤2° HEEL ≤5° |
| ELEC-MOTOR POWER | Y160L-4-H |
| POWER | 90kw |
| Speed | 1780r/min |
| POWER RESOURCE | AC440V/60HZ |
| PROTECT CLASS | IP44 |
| INSUKATE CLASS | F |
| WORKING TYPE | S1 |
| SELF WEIGHT | 22t |
Main Features And Advantages
1.Easy maintenance at all situation
2.Self contained unit with integrated hydraulic power pack
3.Fail-safe brakes on all movements
4.Fully enclosed and equipped operator cabin with air condition
5.The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load
6.Technology from Germany
7.Base on many year's design and fabrication experience of crane and other similar equipment
8.Suitable for all kinds of ships and low power consumption and high efficiency
9.Welded and high strength box boom for easy maintenance
10.With Many safety protection devices---hook up limiter and overload limiter, emergency stop button
General Arrangement
IACS certification
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
