| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO |
| Model Number: | OUCO-1.5T36.6M-TB-00 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per year |
| Product: | Certified ABS Telescopic Boom Crane Marine Customized Hydraulic Crane 1.5t 36.6m | Type: | Telescopic Boom |
|---|---|---|---|
| Condition: | New | After-sales Service: | Online Support, Video Technical Support, Free Spare Parts |
| Usage: | Cargo Lifting | Warranty: | 1 Year |
| Material: | Steel | ||
| Highlight: | ABS Telescopic Boom Crane,Certified Hydraulic Telescopic Boom Crane,Customized Telescopic Hydraulic Crane |
||
The TB series crane is designed as an electro-hydraulic driven telescopic boom crane, with integrated electro-hydraulic power unit, delivered as a complete unit ready for installation to vessels. The crane is equipped with hydraulic operated winch, hydraulic operated luffing and hydraulic operator extension and hydraulic operated slewing system.
The crane is installed with a rolled steel pedestal for bolting or welding to deck with a height of 1200mm and pedestal diameter is depend on the SWL of the crane. The standard TB crane will supply with an operator platform. Operator cabin is optional.
The crane and all it associated components / equipment shall be designed in accordance to any leading classification societies which is upon request. The crane shall be tested and adjusted ready for installation by welding or bolting to vessel deck. Power connection shall be provided for electrical supply through integrated electrical slip rings.
Product Features
1. Easy maintenance at all situation
2. Self contained unit with integrated hydraulic power pack
3. Fail-safe brakes on all movements
4. Fully enclosed and equipped operator cabin with air condition
5. The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load
6. Base on many year's design and fabrication experience of crane and other similar equipment
7. Suitable for all kinds of ships and low power consumption and high efficiency
8. Welded and high strength box boom for easy maintenance
9. With Many safety protection devices---hook up limiter and overload limiter, emergency stop button
Specifications
|
1 |
CRANE TYPE
|
1.5t @36.6m Max. Working radius:36.6m. Hydraulic Telescopic Boom offshore Crane |
| 2 | CERTIFICATION | ABS under sea state 2 |
| 3 | QUANTITY | 1 set |
| 4 | HEEL/TRIM | 5°/2° |
| 5 | AMBIENT TEMPERATURE | -9.9°C~+45°C |
| 6 | SWL | 1.5t @36.6m |
| 7 | MAX WORKING DADIUS | 36.6m |
| 8 | MIN WORKING DADIUS | 4m |
| 9 | HOISTING SPEED |
0~10m/min(main hook) ~30m/min (aux hook) |
| 10 | LIFTING HEIGHT | ~30m |
| 11 | SLEWING ANGLE | ~360° all free |
| 12 | SLEWING SPEED | 0~0.5r/min |
| 13 | LUFFER TIME | 120s |
| 14 | SELF WEIGHT OF CRANE | ~39t(Confirmed in approval drawing) |
| 15 | POWER SUPPLY | 415v,50Hz,3P |

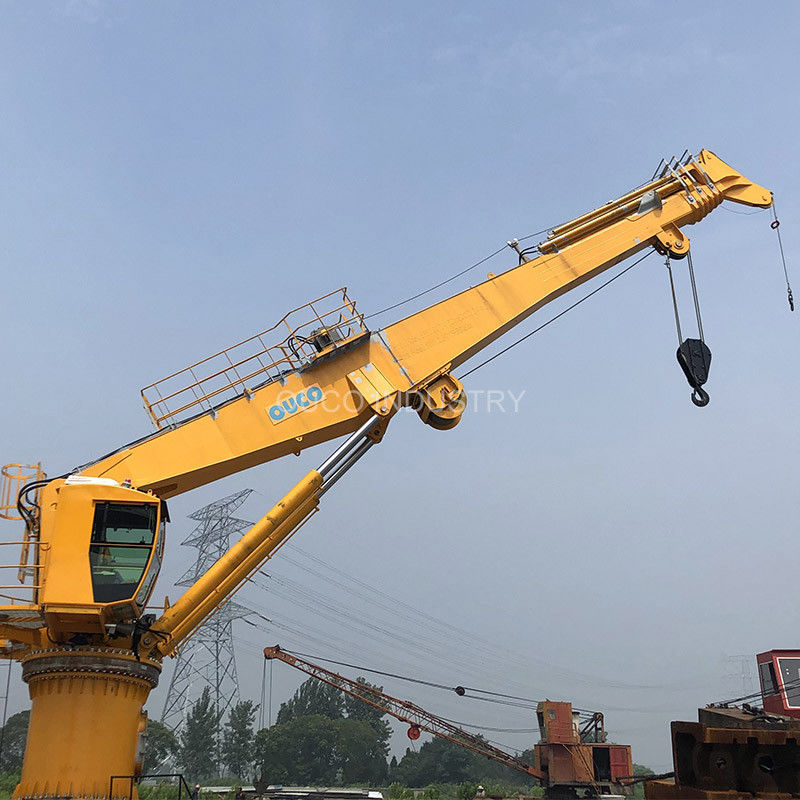

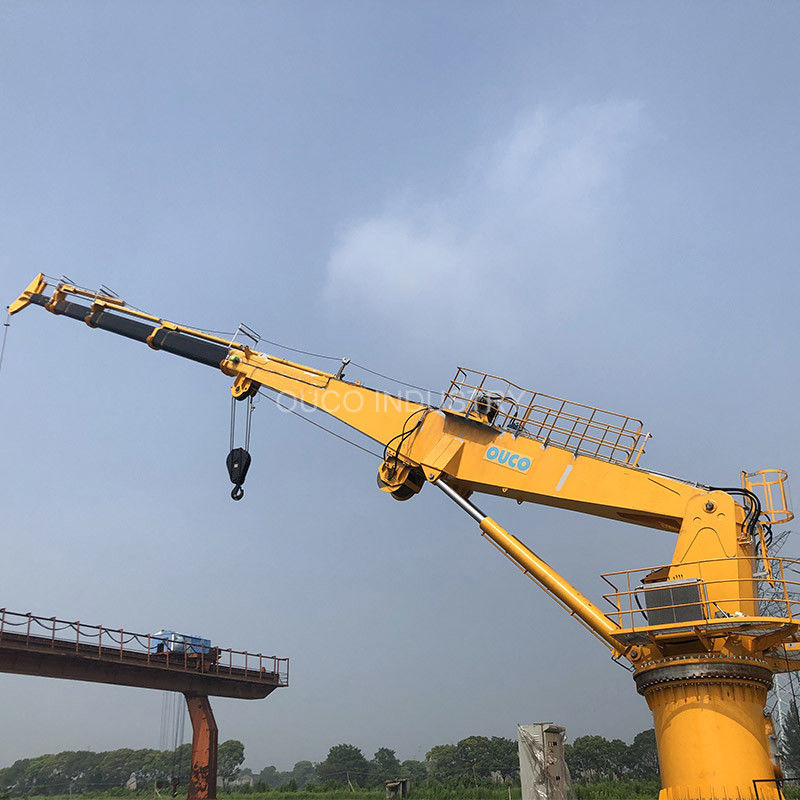

Product Picture
