1.5t 10m Hydraulic Ship Deck Cranes Foldable Boom Marine Onboard offshore units

Basic Information
Place of Origin: Jiangsu, China
Brand Name: OUCO
Certification: CE, ISO
Model Number: 1.5T10M-FB-MC
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Shipping Container/Wood Crate/nude
Delivery Time: 60 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per year
Type: Foldable Boom Model: Marine Crane
Material: Steel Working Radius: Max. 10m
Painting: C5-M Slewing Angle: 360°
Application: Vessel OEM: Welcomed
High Light:

hydraulic foldable boom marine deck crane

,

1.5t marine deck davit crane

,

10m marine deck davit crane

Hydraulic Foldable Boom 1.5T10M Marine Deck Crane

    OUCO Marine/Offshore folding crane Knuckle Boom Crane Marine Crane Pedestal crane. The KB series, knuckle jib box boom pedestal crane, are a reliable for general cargo handling service and offshore use.
   On board various ship types and offshore units. Tailor made to your required specifications in different boom length and lifting capacities from 10mt to 2000mt for different sea state working conditions. All KB series cranes can be equipped with different accessories and class certified by all leading classification societies.



Advantages of this pedestal crane:

Running smoothly;

Rates of speed can be changed;

360 degrees continually rotary;

Both electro hydraulic and manual to control;

Operate conveniently;

Safety and reliability.



Product Information

SWL 1.5t@10m
Max. Working radius 10m
Min. Working radius 3m
Hoisting speed 0~10m/min
Hoisting height 20m
Slewing speed ~1r/min
Slewing angle 360º
Luffing time ~45s
Extension time ~150s
Design temperature -20º~+45º
Working condition TRIM≦2º
HEEL≦5º
Power 15Kw
Protect class IP56
Working type S1



GA Drawing

1.5t 10m Hydraulic Ship Deck Cranes Foldable Boom Marine Onboard offshore units 0

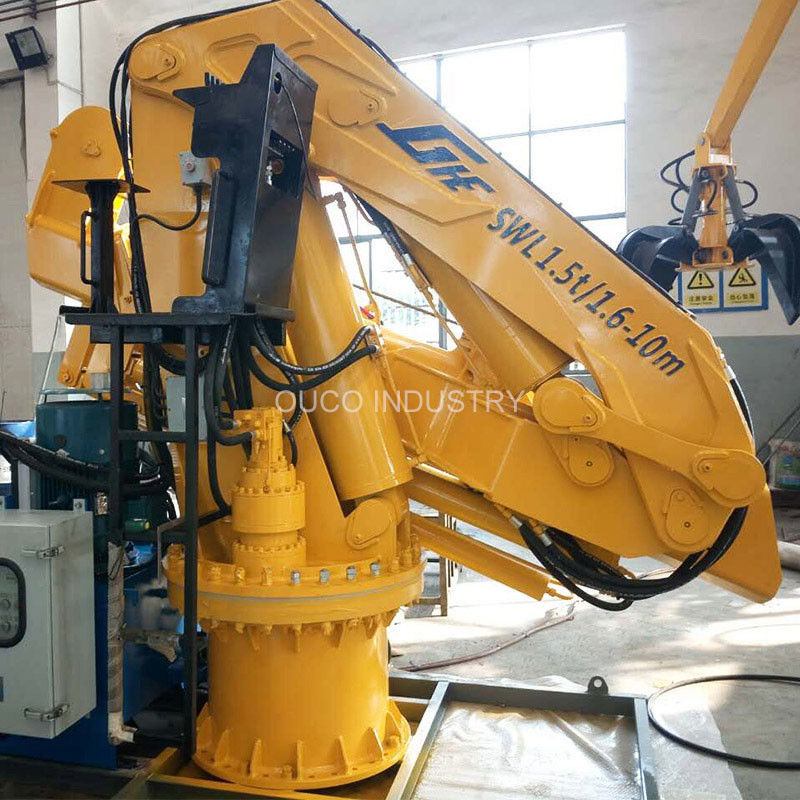

Product Picture

1.5t 10m Hydraulic Ship Deck Cranes Foldable Boom Marine Onboard offshore units 11.5t 10m Hydraulic Ship Deck Cranes Foldable Boom Marine Onboard offshore units 21.5t 10m Hydraulic Ship Deck Cranes Foldable Boom Marine Onboard offshore units 3



Product Process

1.5t 10m Hydraulic Ship Deck Cranes Foldable Boom Marine Onboard offshore units 41.5t 10m Hydraulic Ship Deck Cranes Foldable Boom Marine Onboard offshore units 51.5t 10m Hydraulic Ship Deck Cranes Foldable Boom Marine Onboard offshore units 6

Company Information

1.5t 10m Hydraulic Ship Deck Cranes Foldable Boom Marine Onboard offshore units 7

OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters. OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China. OUCO has more than 150 employees, 20 were technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions’ certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.

1.5t 10m Hydraulic Ship Deck Cranes Foldable Boom Marine Onboard offshore units 8



FAQ

1.Q:What's the information should I provide when inquiry?
A: More details or drawings, better.

a: Lift capacity b: span c: lift height d: power sourceor other specials you give us will be more appreciated.

2.Q: How many operating methods for my selection?
A:Standard operating methodsr:
a: pendent controller with push buttons. b: remote control with push buttons
c: cabin(space capsule seat) control with joystick. Choose any type as you like.


3. Q:Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.


4. Q:Can you provide the serious lifting tools?

A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!



5. Q:How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training.



6. Q:Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
