| Place of Origin | Jiangsu, China |
| Brand Name | OUCO |
| Certification | ISO,CE |
| Model Number | OUCO-14KN-Davit |
Product Description:
OUCO's latest 14 KN Hydraulic Single Arm Slewing Davit stands as an epitome of durability and innovation, meticulously designed to cater to the demanding needs of marine applications. Boasting an impressive safe working load of 14KN and an expansive maximum boom range of 3.5m, it not only ensures unparalleled reliability but also offers a level of versatility that sets it apart from conventional solutions. Engage in seamless operations facilitated by swift swing speeds, rotation angles hovering around 210°, and hoisting speeds that surpass a remarkable 15m /min.
Delve into the intricacies of our meticulously crafted davit crane, where every component is thoughtfully engineered for efficiency and performance. Anchored by a directly driven hoisting winch and a hydraulic slewing mechanism, it guarantees fluid and effortless functionality even in the most challenging of environments. Enhancing its safety quotient, it comes equipped with robust steel cables, load-bearing heads, and a manual emergency recovery system, ensuring compliance with the most stringent safety standards. Tailored specifically for open deck usage, it emerges as the ideal solution for lifting lifeboats, life rafts, and a myriad of other rescue equipment, promising reliability and peace of mind in critical situations.
Our davit crane braves the harsh realities of marine conditions, withstanding rolls of up to 10° and pitches reaching a formidable 20°. Certified by LR, it stands as a testament to its quality and adherence to industry standards, providing reassurance even in the most demanding of environments. Standard davit delivery time is 2 months, customized davit delivery time is 3 months.
MAIN TECHNICAL
| MAIN TECHNICAL DATA | |
| MAX.WORKING LOAD | 14 kN |
| HOISTING LOAD | 14 kN |
| HOISTING SPEED OF WIRE-ROPE | >18 m/min. |
| LOWERING SPEED OF WIRE-ROPE | 40~55m/min |
| SIZE OF WIRE-ROPE | Ø14,18×19 FE,1770N/mm2,MIN.B.L.90 kN |
| 〔APACITY OF DRUM | 30 m |
| MAX.SLEWING LOAD | 14 kN |
| MAX.SLEWING ANGLE | 330° |
| STORED POWER SLEWING ANGLE | 110° |
| SLEWING SPEED IN STORED POWER DRIVEN | 0.35 r/min. |
| SLEWING SPEED IN ELECTRIC POWER DRIVEN | 0.35 r/min. |
| TYPE OF STORED POWER UNIT | NXQ-AB-40/31.5-F-Y |
GA Drawing

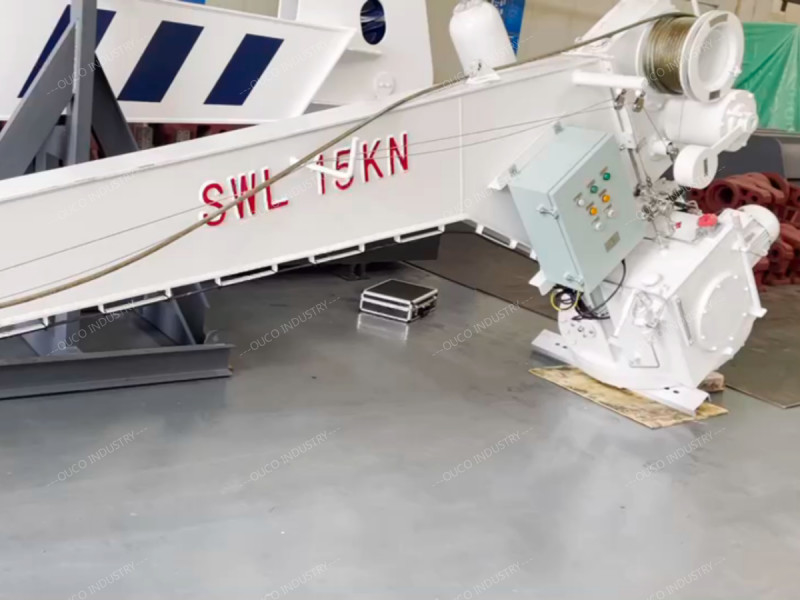

Product Picture
Production Process
Company Profile
The OUCO Group provides high quality handling solutions and access systems for the marine and offshore industries.
Headquartered in beautiful Wuxi, Jiangsu, China, OUCO Group has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and the Middle East.
With years of experience, the OUCO Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience in offshore business, which also provides after-sales services overseas.
OUCO has specialized design team, production and processing team, welding team, painting team, installation team, transportation team and sales team. The company has more than 150 employees, 20 technicians, including 5 with senior titles, 10 with intermediate titles, 50 welders certified by major institutions such as CCS and ABS. And many flaw detectors, quality system auditors and inspectors certified by professional institutions.
Customer Build
OUCO Group has been specializing in the field of cranes for more than 10 years. OUCO can design and manufacture any type of cranes, grabs and other handling equipment according to your requirements.
To better protect the safety of our customers' goods, we provide professional, environmentally friendly, convenient and efficient packaging services. Our comprehensive service system results in a high level of customer satisfaction.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
| Packing | container |
| Delivery | Standard product : 1month Customized product: 2 months Certified products: 3-4 months |
Our factory has state-of-the-art production and testing equipment, such as CNC milling machine, gantry crane, large-scale machining center, modular machine tools, cold shears, etc. We can produce all kinds of customized equipment according to your needs and ensure high-precision machining.
Pre-Sales Service
1. Inquiry and consulting support.
2. View our Factory.
3. Check the load test before shipment.
After-Sales Service
1. Engineers are available to serve machinery overseas.
2. Instruct your workers how to install and use the machine.
3. 24 months of free maintenance.
We regularly participate in prestigious maritime trade shows around the world. Our engineers are professional and own high-level English skills, rich engineering knowledge and working experience.
At previous exhibitions, we have established strong long-term cooperation with many customers!
OUCO factory is certified by SGS, 1S09001, CE, BV, CCS, and other authoritative institutions.
For more details, please feel free to contact us.Welcome to visit our factory!
Contact Us at Any Time
