| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | ISO9001/CE/ABS/CCS/BV |
| Model Number: | OUCO-FB-0.6T8M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 90 days |
| Supply Ability: | 100 sets per year |
| SWL: | 0.6T8M | Type: | Knuckle Boom |
|---|---|---|---|
| Working Condition: | Marine Or Offshore | Max. Working Radius: | 8m |
| Min. Working Radius: | 2 M | Slewing Angle: | 360 Degree |
| Luffing Angle: | 75 Degree | Hoisting Speed: | 15m/min |
| High Light: | Marine Ship Deck Cranes,1.5T7.8M Ship Deck Crane,Folding Telescopic Boom Cranes |
||
Product Description
This time, the customer was from a ship management company in Canada. The cranes were purchased for use in the Philippines and its surrounding waters.
The customer expressed the need for a 1.5T7.8M folding and telescopic ship crane, so we adjusted the original 1.5T8M from the factory to meet the customer's requirements and speed up the delivery.
In addition, the customer proposed that the crane needed CCS certification, equipped with an independent crane operating platform, with soft start and C5M level white paint.
We also provided load test, complete machine transportation, operation manual, video online instruction and drawing files for other components.
If you have a need for a custom crane you can also contact us, contact information is at the bottom of the page.
Specification
| SWL | 1.5T7.9M |
| MAX WORKING RADIUS | 7.9m |
| MIN WORKING RADIUS | 2m |
| HOISTING SPEED | 0~12m/min |
| HOISTING HEIGHT | 15m |
| SLEWING SPEED | 0~1r/min |
| SLEWING ANGLE | 360° |
| LUFFING TIME | ~ 45s |
| EXTENSION TIME | ~20s |
| WORKING CONDITION | TRIM ≤2°HEEL ≤5° |
| MOTOR POWER | 22kw |
| DEAD WRIGHT | 2800KG |
| POWER RESOURCE | 400V/50HZ |
| ADVISED OIL FLOW | 40L/min |
| OIL TANK CAPACITY | 160L |
| HYDRAULIC PRESSURE | 28Mpa |
General Arrangement

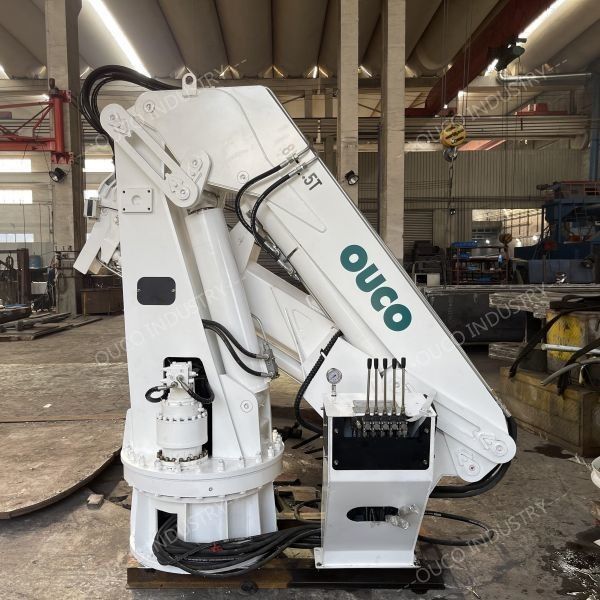

Product Picture
Customer Bulid
OUCO factory specializes in crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
| Packing | container |
| Delivery | Standard product : 1month Customized product: 2 months Certified products: 3-4 months |
Our services
Pre-Sales Service
1. Inquiry and consulting support.
2. View our Factory.
3. Check the load test before shipment.
After-Sales Service
1. Engineers available to serve machinery overseas.
2. Instruct your workers how to install and use the machine.
3. 24 months free maintenance.
Our Factory
For more details, please feel free to contact us.
