| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | ISO,CE |
| Model Number: | OUCO-FB-6T22M |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 30 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500 Sets per year |
| SWL: | 6T@22M | MAX WORKING RADIUS: | 22m |
|---|---|---|---|
| MIN WORKING RADIUS: | 2.5m | HOISTING SPEED: | 0~10m/min |
| HOISTING HEIGHT: | 30m | Application: | Loading |
| Material: | Steel | Port: | Shanghai |
| Part: | Hose | Warranty: | 1 Year |
| High Light: | 22m Long Boom Crane,6T Long Boom Crane,6T Folding Boom Crane |
||

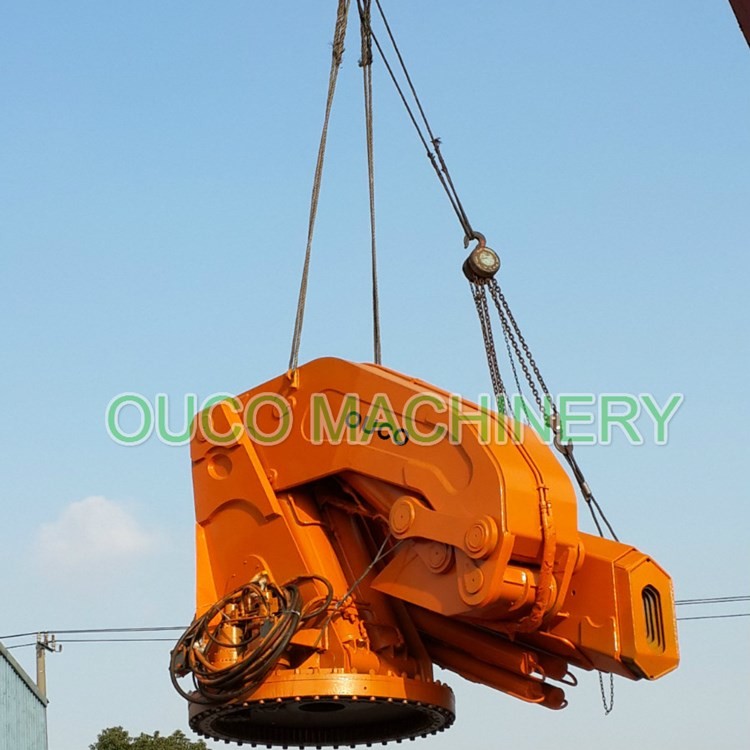

22m Steel Hydraulic 6T Folding Boom Long Boom Crane
Product Description
OUCO Marine/Offshore 6T folding crane Knuckle Boom Crane Marine Crane Pedestal crane.
The KB series, knuckle jib box boom pedestal crane, are a reliable for general cargo handling service and offshore use. On board various ship types and offshore units. Tailor made to your required specifications in different boom length and lifting capacities from 10mt to 2000mt for different sea state working conditions. All KB series cranes can be equipped with different accessories and class certified by all leading classification societies.
Adding various features and options make the foldable knuckle boom cranes a multi-functional tool.
Features:
Minimum design standard: ABS and API-2C
Failsafe operation
Variety of control options
Simultaneous operation of two or more functions
Cr, Ni-Cr or stainless luff cylinder rods
Heat Treated 17-4 stainless steel pins
AISI 316 stainless fasteners (3/4” dia. & smaller)
Zinc-plated graded fasteners
Monel grease fittings
Continuous welds throughout
Pedestal interface to suit customer requirements
360° continuous rotation with limits available
Acrylic epoxy marine coating system
Factory assembled and tested
Specifications
| Brand | OUCO |
| MAX WORKING RADIUS | 22M |
| MIN WORKING RADIUS | 2.5m |
| Usage | Loading |
