| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | ISO9001/CE/ABS/CCS/BV |
| Model Number: | OUCO-TB-1.5T10M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 45 days |
| Supply Ability: | 100 sets per year |
| SWL: | 1.5t10m | Max. Working Radius: | 10m |
|---|---|---|---|
| Warranty: | 1 Year | Feature: | Folding And Telescopic |
| Slewing Angle: | 360 Degree Free | Luffing Angle: | ~70 Degree |
| Usage: | Marine, Offshore | Material: | Steel |
| High Light: | 10M Marine Gantry Crane,1.5T Marine Gantry Crane,10M Marine Pedestal Crane |
||

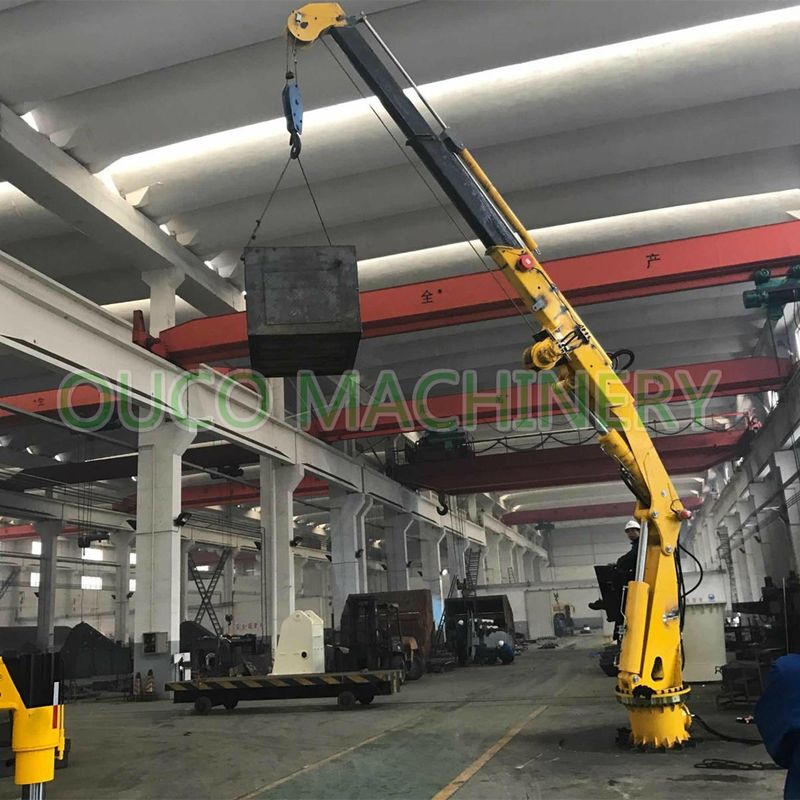

Hydraulic 1.5T 10M Telescopic Boom Marine Gantry Crane
Product Description

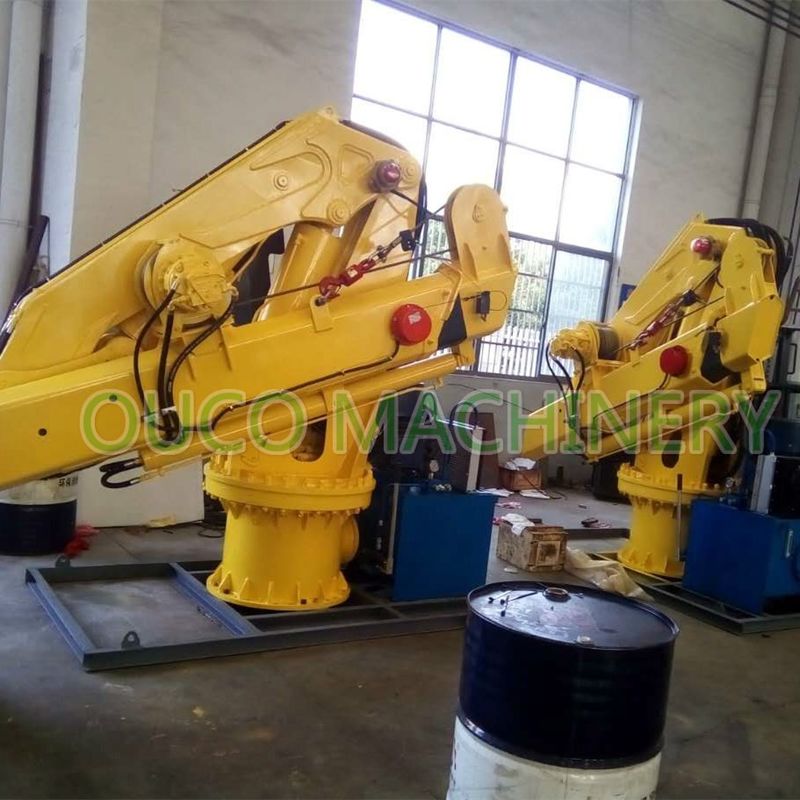

OUCO Marine/Offshore 1.5T folding crane Knuckle Boom Crane Marine Crane Pedestal crane.
The FB series, knuckle jib box boom pedestal crane, are a reliable for general cargo handling service and offshore use. On board various ship types and offshore units. Tailor made to your required specifications in different boom length and lifting capacities from 10mt to 2000mt for different sea state working conditions. All FB series cranes can be equipped with different accessories and class certified by all leading classification societies.
Advantages of this knuckle and telescopic boom crane pedestal crane:
Running smoothly;
Rates of speed can be changed;
360 degrees continually rotary;
Both electro hydraulic and manual to control;
Operate conveniently.;
Safety and reliability;
General Arrangement
Specification
| SWL | 1.5T@10M |
| MAX WORKING RADIUS | 10m |
| MIN WORKING RADIUS | 3m |
| HOISTING SPEED | 0~10m/min |
| HOISTING HEIGHT | 20m |
| SLEWING SPEED | ~1.0r/min |
| SLEWING ANGLE | 360° |
| LUFFING TIME | ~ 45s |
| KNUCKLE BOOM TIME | ~ 150s |
| EXTENSION TIME | ~150s |
| WORKING CONDITION |
TRIM ≤2° HEEL ≤5° |
| POWER | 15kw |
| Speed | 1780r/min |
| PROTECT CLASS | IP56 |
| WORKING TYPE | S1 |
Working on deck
Our Company
With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
