| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | ISO9001/CE/ABS/CCS/BV |
| Model Number: | OUCO-TB-2.5T22M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 45 days |
| Supply Ability: | 100 sets per year |
| SWL: | 2.5t22m | Max. Working Radius: | 22m |
|---|---|---|---|
| Warranty: | 1 Year | Feature: | Compact |
| Slewing Angle: | 360 Degree Free | Luffing Angle: | ~70 Degree |
| Usage: | Marine, Offshore | Boom Tyoe: | Folding And Telescopic |
| High Light: | 22M Telescopic Boom Crane,2.5T Telescopic Boom Crane,Compact Hydraulic Telescopic Boom Crane |
||

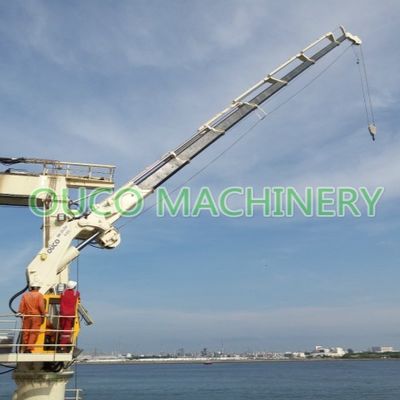

Compact 2.5T 22M Hydraulic Folding Telescopic Boom Crane
Product Description
Advantages of this knuckle and telescopic boom crane pedestal crane:
Running smoothly;
Rates of speed can be changed;
360 degrees continually rotary;
Both electro hydraulic and manual to control;
Operate conveniently.;
Safety and reliability;

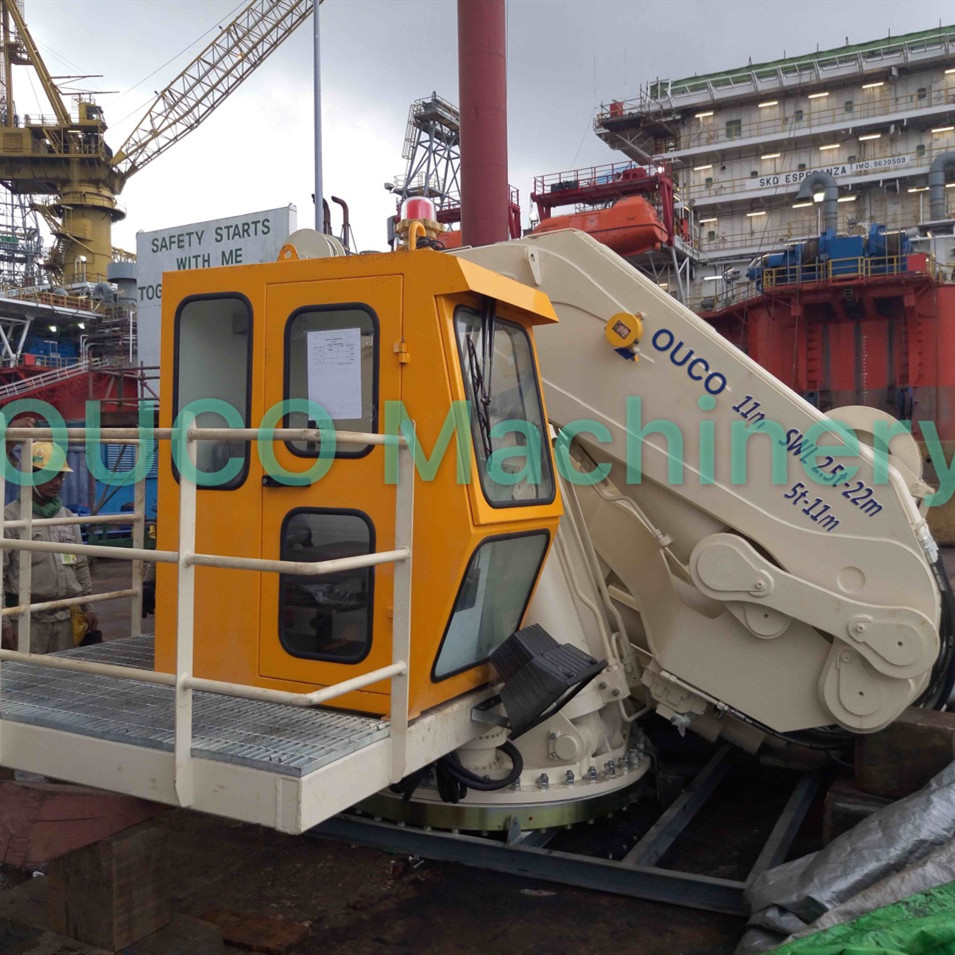

OUCO 2.5T22M knuckle and telescopic was delivered in 3 months time with full CCS Class and being installed in Singapore within 7 days by OUCO service engineers’ guide.
OUCO Marine/Offshore Foldable and telescopic boom compound marine cranes would be the type of effortless cranes with foldable and telescopic booms compound, which make full use of the cranes’ strengths and flexibility when loading and unloading goods. OUCO Marine group can design the foldable cranes based on API-2C regulations and rules.
Specification
| SWL | 2.5T@22M&5T@11M |
| MAX WORKING RADIUS | 22m |
| MIN WORKING RADIUS | 3m |
| HOISTING SPEED | 0~12m/min |
| HOISTING HEIGHT | 30m |
| SLEWING SPEED | ~1.0r/min |
| SLEWING ANGLE | 360° |
| LUFFING TIME | ~ 120s |
| KNUCKLE BOOM TIME | ~ 120s |
| EXTENSION TIME | ~150s |
| WORKING CONDITION |
TRIM ≤2° HEEL ≤5° |
| ELEC-MOTOR POWER | M2QA225M |
| POWER | 45kw |
| Speed | 1780r/min |
| POWER RESOURCE | AC440V/60HZ |
| PROTECT CLASS | IP56 |
| INSUKATE CLASS | F |
| WORKING TYPE | S1 |
General Arrangement
Details
Our Company
With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
