| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | ISO9001/CE/ABS/CCS/BV |
| Model Number: | OUCO-TB-6T22M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 45 days |
| Supply Ability: | 100 sets per year |
| SWL: | 6t22m | Max. Working Radius: | 22m |
|---|---|---|---|
| Warranty: | 1 Year | Slewing Angle: | 360 Degree Free |
| Luffing Angle: | ~70 Degree | Usage: | Marine, Offshore |
| Boom Type: | Folding And Telescopic | Feature: | Compact |
| High Light: | 6t Telescopic Boom Crane,22m Telescopic Boom Crane,ABS Hydraulic Telescopic Boom Crane |
||

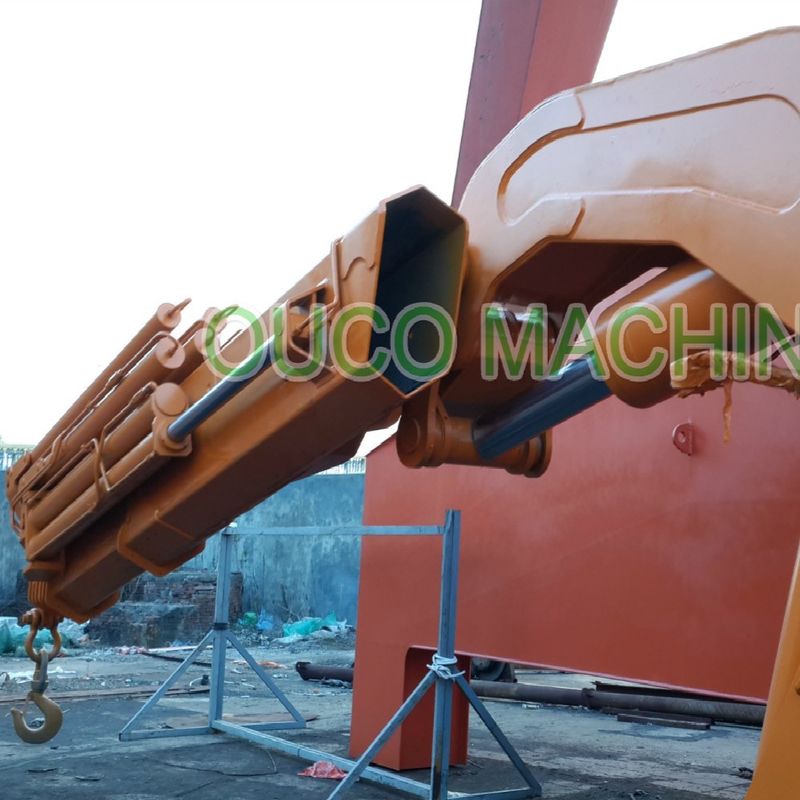

Folding Lifting Jib 6t 22m ABS Telescopic Boom Crane
Product Description
OUCO Marine/Offshore 6T folding crane Knuckle Boom Crane Marine Crane Pedestal crane.
The KB series, knuckle jib box boom pedestal crane, are a reliable for general cargo handling service and offshore use. On board various ship types and offshore units. Tailor made to your required specifications in different boom length and lifting capacities from 10mt to 2000mt for different sea state working conditions. All KB series cranes can be equipped with different accessories and class certified by all leading classification societies.
Adding various features and options make the foldable knuckle boom cranes a multi-functional tool.
Features:
· Minimum design standard: ABS and API-2C
· Failsafe operation
· Variety of control options
· Simultaneous operation of two or more functions
· Cr, Ni-Cr or stainless luff cylinder rods
· Heat Treated 17-4 stainless steel pins
· AISI 316 stainless fasteners (3/4” dia. & smaller)
· Zinc-plated graded fasteners
· Monel grease fittings
· Continuous welds throughout
· Pedestal interface to suit customer requirements
· 360° continuous rotation with limits available
· Acrylic epoxy marine coating system
· Factory assembled and tested
Specification
| SWL | 6T@22M |
| MAX WORKING RADIUS | 22m |
| MIN WORKING RADIUS | 2.5m |
| HOISTING SPEED | 0~10m/min |
| HOISTING HEIGHT | 30m |
| SLEWING SPEED | ~0.8r/min |
| SLEWING ANGLE | 360° |
| LUFFING TIME | ~ 120s |
| KNUCKLE BOOM TIME | ~ 120s |
| EXTENSION TIME | ~150s |
| WORKING CONDITION |
TRIM ≤2° HEEL ≤5° |
| ELEC-MOTOR POWER | Y250M-4-H |
| POWER | 55kw |
| Speed | 1780r/min |
| POWER RESOURCE | AC440V/60HZ |
| PROTECT CLASS | IP56 |
| INSUKATE CLASS | F |
| WORKING TYPE | S1 |
General Arrangement
IACS certification
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
