| Place of Origin | Jiangsu, China |
| Brand Name | OUCO |
| Certification | ISO9001/CE/ABS/CCS/BV |
| Model Number | OUCO-TB-4T30M |
Product Description

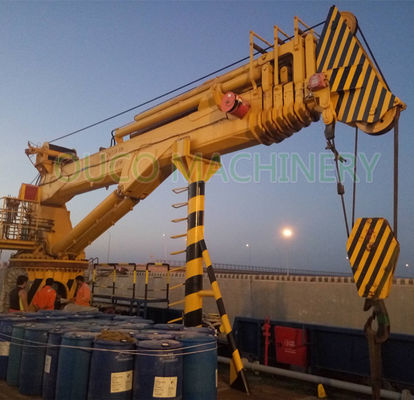

The telescopic series of cranes offer a diverse product line for application in the Luxury Yacht, Oceanographic, Workboat, Oilfield, Coast Guard or Military industries. These cranes can also be further customized for use in these most demanding of work environments.
All of the cranes in the Telescopic Boom line offer several key features that make them powerful solutions for the marine work environment. The most notable of these features include: Extended boom reach with the dexterity for accurate, safe, and efficient material handling.
Specification
| SWL | 4T@30M&10T25M |
| MAX WORKING RADIUS | 30m |
| MIN WORKING RADIUS | 3m |
| HOISTING SPEED | 0~15m/min |
| HOISTING HEIGHT | 35m |
| SLEWING SPEED | ~0.6r/min |
| SLEWING ANGLE | 360° |
| LUFFING TIME | ~ 90s |
| WORKING CONDITION |
TRIM ≤2° HEEL ≤5° |
| ELEC-MOTOR POWER | Y160L-4-H |
| POWER | 90kw |
| Speed | 1780r/min |
| POWER RESOURCE | AC440V/60HZ |
| PROTECT CLASS | IP44 |
| INSUKATE CLASS | F |
| WORKING TYPE | S1 |
Main Features And Advantages
1.Easy maintenance at all situation
2.Self contained unit with integrated hydraulic power pack
3.Fail-safe brakes on all movements
4.Fully enclosed and equipped operator cabin with air condition
5.The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load
6.Technology from Germany
7.Base on many year's design and fabrication experience of crane and other similar equipment
8.Suitable for all kinds of ships and low power consumption and high efficiency
9.Welded and high strength box boom for easy maintenance
10.With Many safety protection devices---hook up limiter and overload limiter, emergency stop button
General Arrangement
Transportation
Our Company
OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters.
OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China.
OUCO has more than 150 employees, 20 are technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions’ certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.
OUCO provides high quality handling solutions and access systems for the Crane, port industries and various non-standard structural parts. The company has its own developing, designing, and manufacturing capacity for products of metallurgical complete sets of equipment, marine cranes, truck cranes, boiler desulfurization and denitrification environmental protection products in air pollution control field. Company products are widely used in the metallurgical, ship, port, electricity, petroleum, building materials and chemical industries.
OUCO has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and Middle East. It has an annual output of 11,000 tons of steel structure production capacity.
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
