| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | ISO9001/CE/ABS/CCS/BV |
| Model Number: | OUCO-TB-7T10M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 90 days |
| Supply Ability: | 100 sets per year |
| SWL: | 7t10m | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Telescopic Boom | Working Condition: | Marine |
| Luffing Angle: | ~70 Degree | Slewing Angle: | 360 Degree |
| Color: | Custimized | Max. Working Radius: | 10 M |
| High Light: | 7T Telescopic Boom Crane,10M Telescopic Boom Crane,10M Hydraulic Marine Cranes |
||

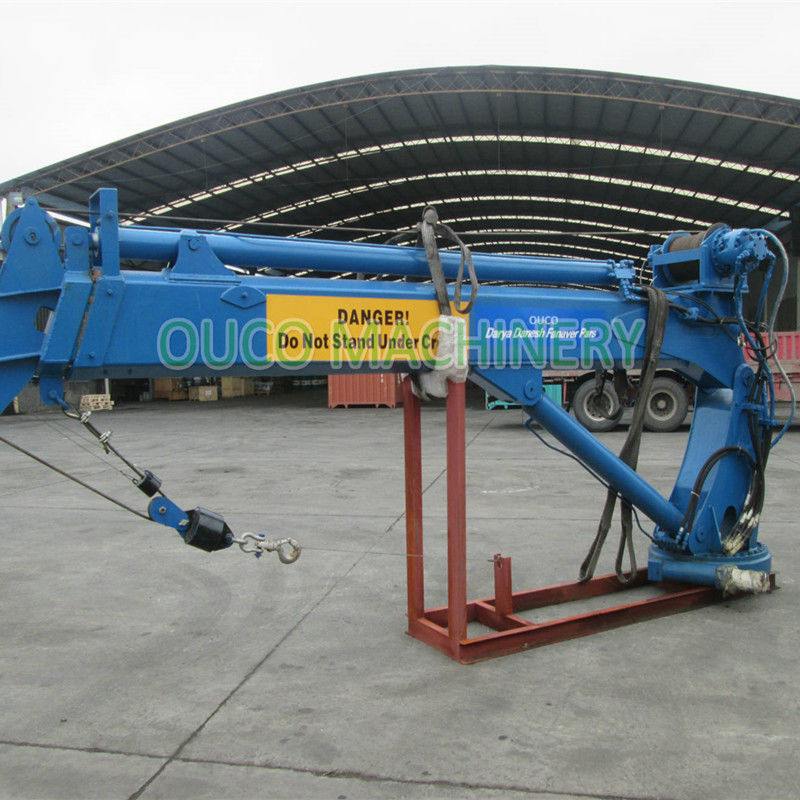

OUCO 10M Hydraulic 7T Ship Deck Telescopic Boom Crane
Product Description
A telescopic crane offers a boom that has a number of tubes that are fitted inside each other. Then hydraulic mechanisms extend or retract the tubes to length or shorten the boom.
Features
Simple design simplifies the maintenance
Compliance with the most demanding safety rules and regulations
Overload protection
Reliable long service life guaranteed through the use of high quality reputable components
Extensive endurance testing and easy future upgrades
Specification
| SWL | 7T@10M |
| MAX WORKING RADIUS | 10m |
| MIN WORKING RADIUS | 3m |
| HOISTING SPEED | 0~15m/min |
| HOISTING HEIGHT | 20m |
| SLEWING SPEED | ~0.6r/min |
| SLEWING ANGLE | 360° |
| LUFFING TIME | ~ 90s |
| WORKING CONDITION |
TRIM ≤2° HEEL ≤5° |
| ELEC-MOTOR POWER | Y160L-4-H |
| POWER | 15kw |
| Speed | 1780r/min |
| POWER RESOURCE | AC440V/60HZ |
| PROTECT CLASS | IP44 |
| INSUKATE CLASS | F |
| WORKING TYPE | S1 |
General Arrangement
Ready for Transportation
Our company
OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters.
OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China.
OUCO has more than 150 employees, 20 are technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions’ certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.
OUCO provides high quality handling solutions and access systems for the Crane, port industries and various non-standard structural parts. The company has its own developing, designing, and manufacturing capacity for products of metallurgical complete sets of equipment, marine cranes, truck cranes, boiler desulfurization and denitrification environmental protection products in air pollution control field. Company products are widely used in the metallurgical, ship, port, electricity, petroleum, building materials and chemical industries.
OUCO has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and Middle East. It has an annual output of 11,000 tons of steel structure production capacity.
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device
