SWL: | 1.5t15m | Material: | Steel Structure |
---|---|---|---|
Warranty: | 1 Year | Type: | Telescopic Boom |
Working Condition: | Marine | Condition: | New |
Color: | Customer Requirement | Slewing Angle: | 360 Degree |
Highlight: | 1.5t Telescopic Hydraulic Crane,15M Telescopic Hydraulic Crane,15M Hydraulic Deck Crane |

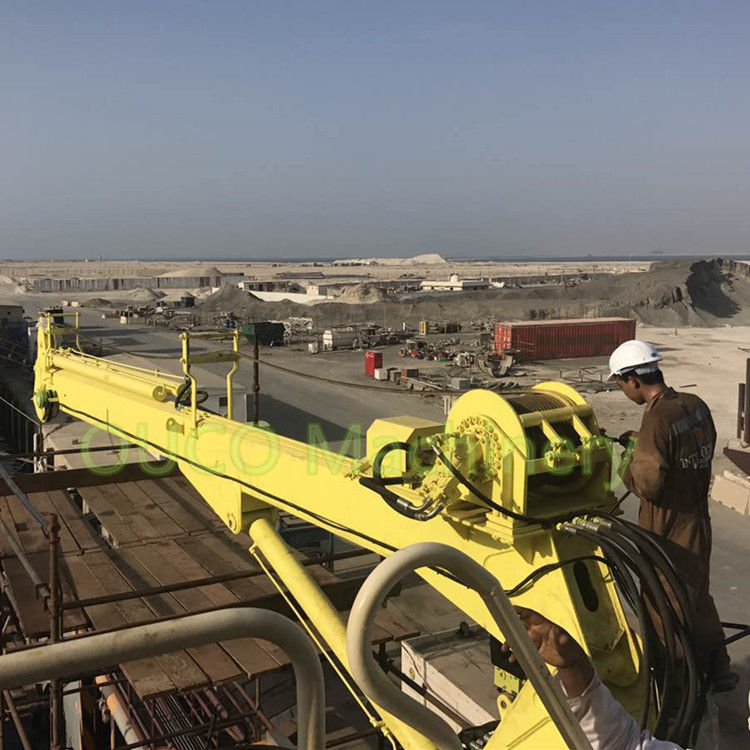

1.5t Pedestal 15M Electrical Telescopic Hydraulic Crane
The advantages of the telescopic cranes are low weight and less complex design making them maintenance-friendly. This offshore crane especially wildly been used in the mild-east area for the OSV (oil service vessel); which is especially designed according to the harsh working environment there. OUCO Marine Telescopic cranes can be designed and manufactured by clients’ requirements in
our own factory. The perfect solution for applications that require reach and compact storage, the Telescopic Boom crane is available with two to four box boom sections.
The availability of a telescopic or fixed jib extension on a telescopic boom is not only easy to attach and use, but it makes it possible to extend the reach of the crane boom by as much as 40 meter. With a jib, boom cranes are capable of reaching boom lengths as tall as 35 meter, which is very beneficial when placing loads at height or lifting personnel using a work platform.
Specification
SWL | 1.5T@15M |
MAX WORKING RADIUS | 15m |
MIN WORKING RADIUS | 2.6m |
HOISTING SPEED | 0~15m/min |
HOISTING HEIGHT | 25m |
SLEWING SPEED | ~0.8r/min |
SLEWING ANGLE | 360° |
LUFFING TIME | ~ 60s |
EXTENSION TIME | ~150s |
WORKING CONDITION |
TRIM ≤2° HEEL ≤5° |
ELEC-MOTOR POWER | Y160L-4-H |
POWER | 45kw |
Speed | 1760r/min |
POWER RESOURCE | AC440V/60HZ |
PROTECT CLASS | IP44 |
INSUKATE CLASS | F |
WORKING TYPE | S1 |
General Arrangement
Transportation
IACS certification samples
Our Company
With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
