| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | ISO9001/CE/ABS/CCS/BV |
| Model Number: | OUCO-TB-5T13.5M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 60 days |
| Supply Ability: | 100 sets per year |
| Warranty: | 1 Year | Slewing Angle: | 360 Degree Free |
|---|---|---|---|
| Boom Type: | Fixed | Material: | Steel Structure |
| Usage: | Marine Deck | Luffing: | 75 Degree |
| Max. Working Radius: | 9m | Min. Working Radius: | 3m |
| High Light: | 3T Hydraulic Jib Crane,9m Hydraulic Jib Crane,CCS Marine Deck Crane |
||

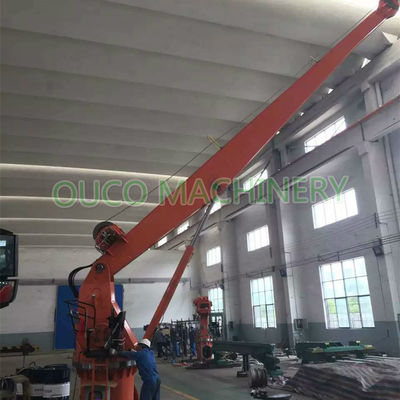

Marine Deck 3T Fixed Boom 9m CCS Hydraulic Jib Crane
Product Description
Our Fixed Boom Cranes utilize a more compact design to offer more portability and easier maintenance. Fixed Boom Cranes are available in 3 - 100 ton capacity. We can design and build to your specifications. These cranes are typically utilized for offshore and/or fixed platform work. This crane is used especially on barges and lift boats. Each of our Cranes is meticulously manufactured for efficiency, maintenance, and affordability.
Specification
| 1 | SWL | 3T@9M |
| 2 | MAX WORKING RADIUS | 9m |
| 3 | MIN WORKING RADIUS | 3m |
| 4 | HOISTING SPEED | 0~10m/min |
| 5 | HOISTING HEIGHT | 20m |
| 6 | SLEWING SPEED | ~0.8r/min |
| 7 | SLEWING ANGLE | 360° |
| 8 | LUFFING TIME | ~ 45s |
| 9 |
EXTENSION TIME
|
~0s |
| 10 |
WORKING CONDITION
|
TRIM ≤2° HEEL ≤5° |
| 11 | MOTOR |
ELEC-MOTOR POWER Y160K-4-H POWER 15kw Speed 1460r/min POWER RESOURCE AC415V/50HZ |
| 12 | PROTECT CLASS | IP56 |
| 13 | INSULATE CLASS | F |
| 14 | WORKING TYPE | S1 |
SB series crane: End User Advantages:
1. Compact design
2. Small footprint
3. Delivered as one complete unit ready for installation to vessels
4. Easy access for periodic maintenance, service and repair
5.24 hours after sales searvices support.
GA drawing
Our Company
OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters.
OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China.
OUCO has more than 150 employees, 20 are technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions’ certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.
OUCO provides high quality handling solutions and access systems for the Crane, port industries and various non-standard structural parts. The company has its own developing, designing, and manufacturing capacity for products of metallurgical complete sets of equipment, marine cranes, truck cranes, boiler desulfurization and denitrification environmental protection products in air pollution control field. Company products are widely used in the metallurgical, ship, port, electricity, petroleum, building materials and chemical industries.
OUCO has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and Middle East. It has an annual output of 11,000 tons of steel structure production capacity.
