| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | OUCO |
| Certification: | ISO9001/CE/ABS/CCS/BV |
| Model Number: | OUCO-TB-1.5T4M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Delivery Time: | 60 days |
| Supply Ability: | 100 sets per year |
| SWL: | 1.5t4m | Color: | Customer Request |
|---|---|---|---|
| Max. Working Radius: | 4m | Warranty: | 1 Year |
| Feature: | For Yacht | Slewing Angle: | 360 Degree Free |
| Boom Type: | Stiff Boom | Min. Working Radius: | 2m |
| High Light: | 1.5t Electric Hydraulic Crane,4m Electric Hydraulic Crane,CCS Marine Deck Crane |
||

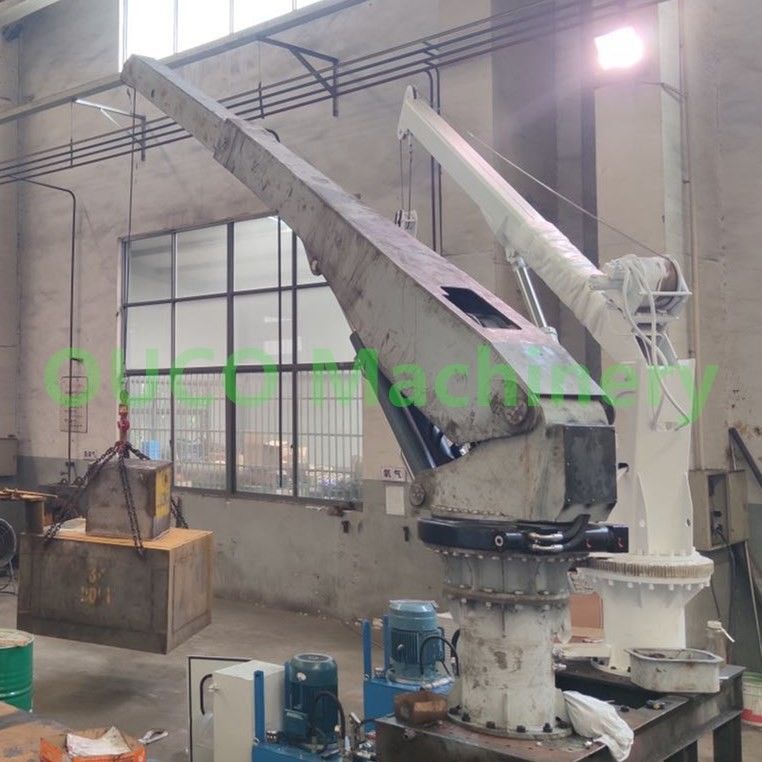

Portable 1.5t Yacht 360 Degree Electric Hydraulic Crane
Product Description
The crane is installed with a rolled steel pedestal for bolting or welding to deck with a height of OUCO standard and pedestal diameter is depend on the SWL of the crane. The standard SB crane will supply with an operator platform. Operator cabin is optional.
The crane and all it associated components / equipment shall be designed in accordance to any leading classification societies which is upon request. The crane shall be tested and adjusted ready for installation by welding or bolting to vessel deck. Power connection shall be provided for electrical supply through integrated electrical slip rings.
Specification
| No. | Item | Specification |
|
CRANE |
SWL | 1.5 t |
| Working condition |
HEEL≦5° TRIM ≦2° |
|
| Working radius | 4m | |
| Hoist speed | 0~15m/min | |
| Hoist height | 20 m | |
| Hook travel | 15 m | |
| Slewing Speed | 0~0.8r/min | |
| Slewing Angle | ~360° all free | |
| Luffing time | 30 s | |
| Design temperature | -10℃~45℃ | |
| Self-Weight Of Crane | ~800 kg | |
| Power | 7.5Kw | |
| Painting Standard | C5M |
SB series crane: End User Advantages:
1. Compact design
2. Small footprint
3. Delivered as one complete unit ready for installation to vessels
4. Easy access for periodic maintenance, service and repair
5.24 hours after sales service support.
General Arrangement
Ready to ship
Our Company
With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
