0.2t 20m Marine Steel Hydraulic Telescopic Boom Crane

Basic Information
Place of Origin: Jiangsu, China
Brand Name: OUCO
Certification: ISO9001/CE/ABS/CCS/BV
Model Number: OUCO-TB-0.2T20M
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Shipping Container/Wood Crate/nude
Delivery Time: 60 days
Supply Ability: 100 sets per year
SWL: 0.2t20m Boom Type: Telescopic
Color: Customer Request Max. Working Radius: 20m
Min. Working Radius: 3m Material: Steel Structure
Condition: New Warranty: 1 Year
High Light:

0.2t Telescopic Boom Crane


20m Telescopic Boom Crane


20m Telescopic Boom Truck Crane

0.2t 20m Marine Steel Hydraulic Telescopic Boom Crane


Product Description

The TB series crane is designed as an electro-hydraulic driven telescopic boom crane, with integrated electro-hydraulic power unit, delivered as a complete unit ready for installation to vessels. The crane is equipped with hydraulic operated winch, hydraulic operated luffing and hydraulic operator extension and hydraulic operated slewing system.

The crane is installed with a rolled steel pedestal for bolting or welding to deck with a height of 1200mm and pedestal diameter is depend on the SWL of the crane. The standard TB crane will supply with an operator platform. Operator cabin is optional.


1 SWL See load chart
2 Max. Working radius 18.7m (hook)
3 Min, working radius 3m
4 Hoisting speed 0~12m/min
5 Hoisting height 30m
6 Slewing speed ~0.6r/min
7 Slewing angle 360º
8 First luffing time ~40s
9 Booms extending time ~60s
10 Working condition

TRIM ≦2º

HEEL ≦5º

11 Elec-motor power Y180L-4-H
    Power 18.5 Kw
Speed 1470r/min
Power resource AC380V/50Hz
Protect class IP56
Insukate class F
Working type S1
12 Design temperature -10º~+45º



The crane and all it associated components / equipment shall be designed in accordance to any leading classification societies which is upon request. The crane shall be tested and adjusted ready for installation by welding or bolting to vessel deck. Power connection shall be provided for electrical supply through integrated electrical slip rings.

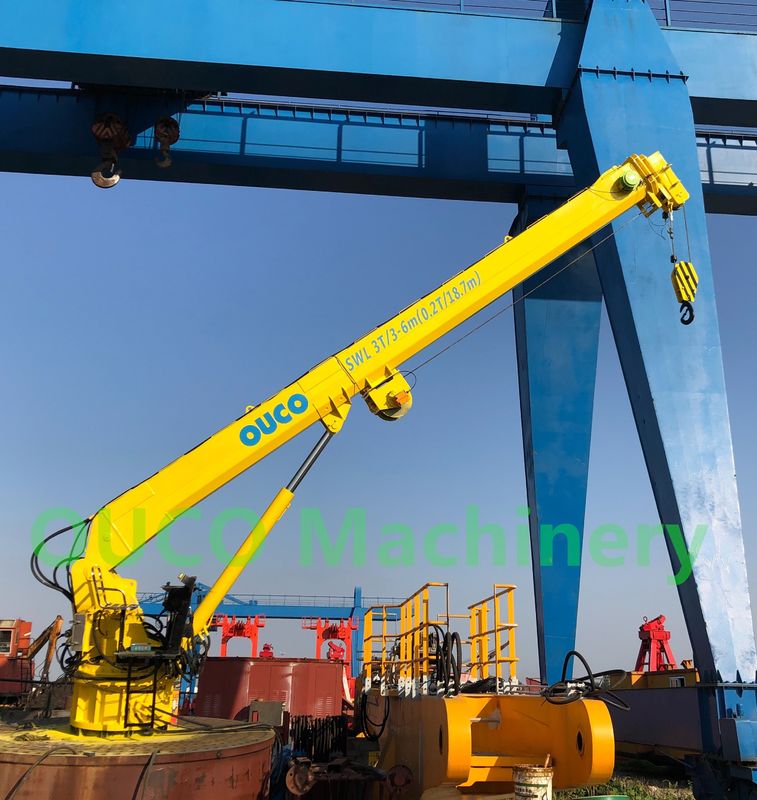

0.2t 20m Marine Steel Hydraulic Telescopic Boom Crane 0


Hot Tags: Marine Telescopic Hydraulic Crane 3t30m, China, Factory, Manufacturers, Quotation, Discount, Customized, Low Price, Good Quality, ABS, Used, For Sale, With Fast Delivery Time

General Arrangement

0.2t 20m Marine Steel Hydraulic Telescopic Boom Crane 1



0.2t 20m Marine Steel Hydraulic Telescopic Boom Crane 2


Our Company

With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.

Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.

OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.

We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.




1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
