Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine
  • Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine
  • Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine
  • Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine
  • Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine
  • Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine

Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine

Place of Origin Jiangsu, China
Brand Name OUCO
Certification CE, ISO
Model Number OUCO-TB-0.35T3.5M-00
Product Details
Material:
Steel
Type:
Telescopic Boom
Color:
As Customer`s Request
Application:
Bulk Material Handling
Condition:
New
Warranty:
1 Year
Highlight:

Cargo Lifting Telescopic Marine Crane

,

3.5M Telescopic Marine Crane

,

0.35T Telescopic Marine Crane

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Shipping Container/Wood Crate/nude
Delivery Time
60 days
Payment Terms
L/C, T/T
Supply Ability
100 sets per year
Product Description

0.35T3.5M Telescopic Boom Yacht Ues Marine Crane for Cargo Lifting

    OUCO manufactures small service cranes in different boom lengths and depending on the crane’s application, we offer certification by all major classification societies and a broad set of available accessories. They are designed and manufactured in conformity with the current Marine Rules and they can be customized on request.

      The KB series, knuckle jib box boom pedestal crane, are a reliable for general cargo handling service and offshore use. On board various ship types and offshore units. Tailor made to your required specifications in different boom length and lifting capacities from 10mt to 2000mt for different sea state working conditions. All KB series cranes can be equipped with different accessories and class certified by all leading classification societies.

Features and Advantages

1.Simple design simplifies the maintenance;

2.Compliance with the most demanding safety rules and regulations;

3.Overload protection;

4.Reliable long service life guaranteed through the use of high quality reputable components, extensive endurance testing and easy future upgrades.



Product Information

SWL 0.35T 3.5M
Max. Working radius 3.5m
Min. Working radius 1.5m
Hoisting speed 0~15m/min
Hoisting height 10m
Slewing speed ~0.8r/min
Slewing angle 360°
Luffing time ~40s
Extension time ~25s
Luffing angle 0~75º
Design temperature -20º~+45º
Working condition TRIM ≤2°
HEEL ≤5°
Power 4.5kw
Classification ABS/BV/CCS/RMRS
Speed 1780r/min
Insukate class F
Power resource AC440V/60HZ
Protect class IP44
Working type S1


GA Drawing

Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine 0

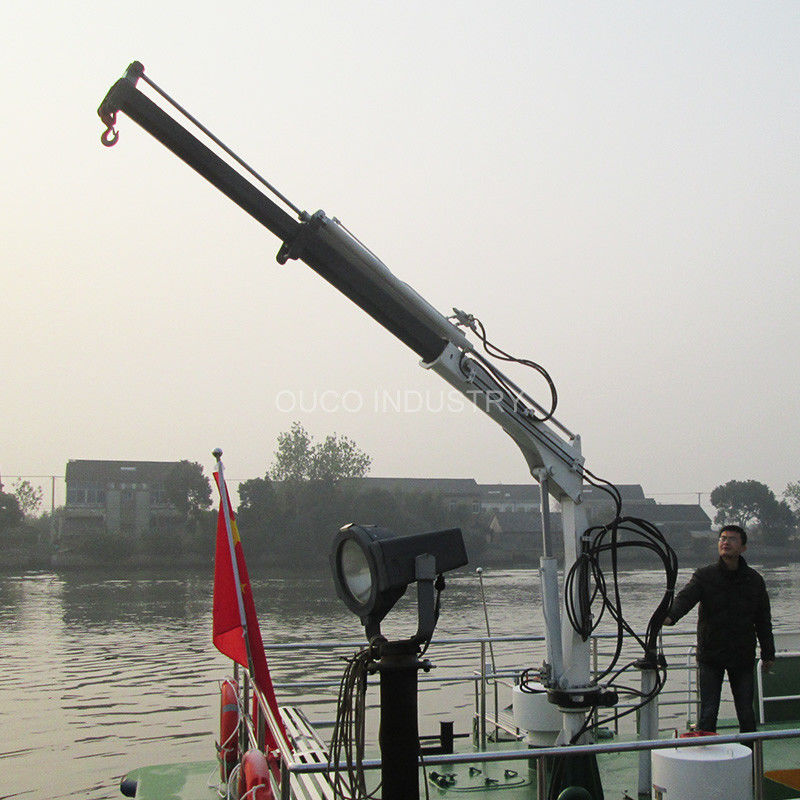

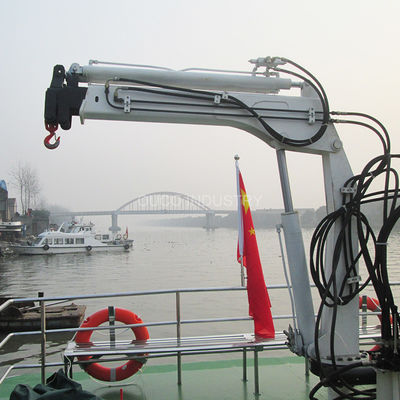

Product Picture

Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine 1Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine 2Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine 3Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine 4Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine 5Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine 6

Production Process

Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine 7Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine 8Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine 9

Company Profile

Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine 10

Company Information
OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters. OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China. OUCO has more than 150 employees, 20 were technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions’ certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.

Factory Steel 0.35T 3.5M Telescopic Boom Crane Lifting Mini Knuckle mobile boat Marine 11

FAQ

1.Q: What's the working radius of your crane?

   A: From 1m to 100m, we can also design and manufacture cranes according to your requirements.

2.Q: Which crane type should I choose?

   A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.

3.Q: Is this crane explosion-proof?

   A: Sure, we can equip any extra function based on your requirement.

4.Q: Does your crane have safety devices?

   A: Of course, we have all cut off limits and alarms for safety reasons.

5.Q: How can I install the crane to my vessel?

   A: We can send our service engineers to the vessel site for guiding or ship the crane in whole pieces.
