2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine

Basic Information
Place of Origin: Jiangsu, China
Brand Name: OUCO
Certification: ISO,CE
Model Number: OUCO-2T5M-00
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Shipping Container/Wood Crate/nude
Delivery Time: 30 Days
Payment Terms: T/T, Western Union
Supply Ability: 500 Sets per year
Material: Steel Port: Shanghai
Part: Hose Price: Discuss Personally
Color: Customer Requirement Warranty: 1 Year
Usage: Loading SWL: 2T5M
High Light:

2t telescoping boom crane

,

5m telescoping boom crane

,

ouco telescoping boom crane

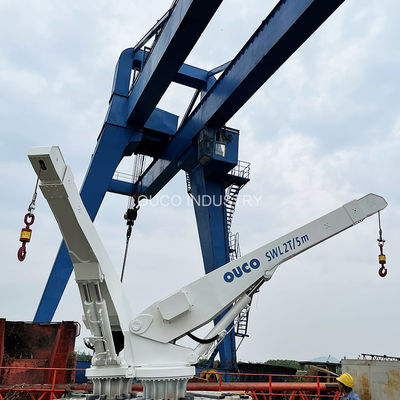

2T5M Knuckle and Telescopic Boom Marine Crane

The TB series yacht marine crane/davit is designed as an electro-hydraulic driven telescopic boom/jib small crane, with electro-hydraulic power unit installed under deck, delivered as a complete unit ready for installation to yacht. The crane/davit is equipped with hydraulic operated winch, hydraulic operated luffing and and hydraulic operator extension and hydraulic operated slewing system. All cranes/davits are reliabel and easy to use. Normally TB series yacht crane/ davits are for jet ski purpose.



Specifications

SWL 2t5m
Max. Working radius 5m
Min. Working radius 1.6m
Hoisting speed 0-12m/min
Hook travel 20m
Slewing speed 0-1r/min
Slewing angle 360º free
Luffing time ~40s
Luffing angle 0~75º
Design temperature -20º~+45º
Working condition TRIM≦2º
HEEL≦5º
Motor Power : 7.5Kw
Working pressure 18Mpa
Advised oil flow 20L/min



GA Drawing

2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine 0

2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine 1

Detail Images

2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine 2

Production Process

2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine 32T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine 4

2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine 5



Company Profile

Jiangsu OUCO Heavy Industry and Technology Co., Ltd

The OUCO Marine Group provides high quality handling solutions and access systems for the

marine and offshore industries.Headquartered in beautiful Wuxi, Jiangsu, China, OUCO Marine Group
has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia,
Africa, Australia and Middle East. With years of experience, the OUCO Marine Group has its own
designing team and manufacturing factory, excellent European management who has 47 years of
experience on offshore business, which also provides after sales services overseas.

2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine 6

After-Sales Service

1. Engineers available to serve machinery overseas.
2. Instruct your workers how to install and use the machine.
3. 24 months free maintenance.

2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine 7

Customer visits

Every year, many of our clients will come to our factory to check the producing conditions and we are

in the good relationship with many clients.

2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine 8


FAQ
1. Q: What's working radius of your crane?
A: From 1m to 100m, we can design and make according to your requirement.
2. Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.
3. Q: Can this crane be explosion proof?
A: Sure, we can equip any extra function based on your requirement.
4. Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.
5. Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole piece.
